Different Parameters, Different Price. Price Reference Only.
TITAN adopts high strength steel material, it can make the triple axle flat bed trailer have a higher loading capacity and a longer service life.

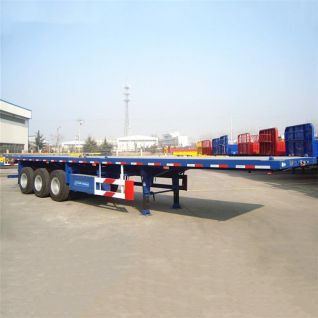

The triple axle flat bed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals.

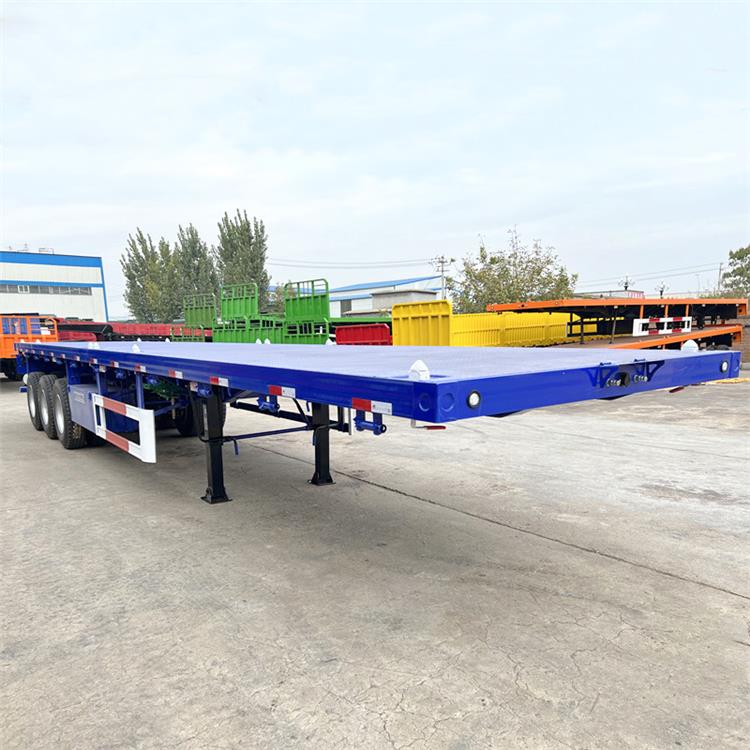

Flat bed trailer is usually used to transport 20ft or 40ft containers. It is carefully designed to desired heights and weight capacity to safely load and transport cargoes from one location to another.
Tare Weight: About 7.1T
Dimension(mm): 12500x2490x1530mm
Loading capacity(ton): ≤45T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

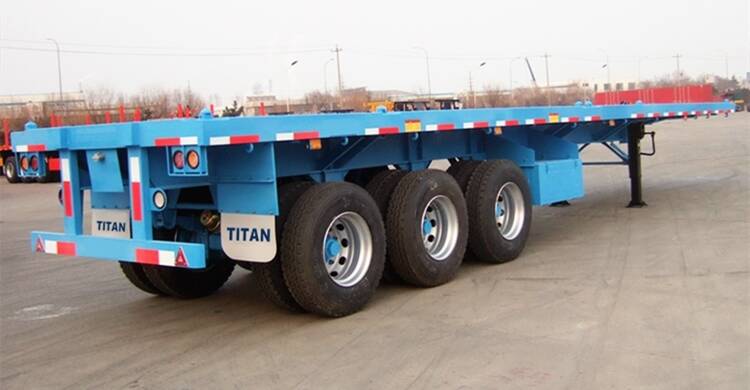

1. TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
2. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
3. To make sure the service life of the semi trailers, all the spare parts we adopt are world famous brand.
4. We use famous German WABCO braking valve will definitely shorten the Braking Distance, to make the safety of the trailers and the drivers.
5. Durable mechanical widened spring suspension, make sure the stable and safety. Also we can offer you the air bag suspensions, The airbag suspension can provide a good shock absorption effect for the vehicle and more fuel-efficient.
Welcome to leave your inquiry!
We will provide quotation and more details, drawings, pictures, videos for you!
