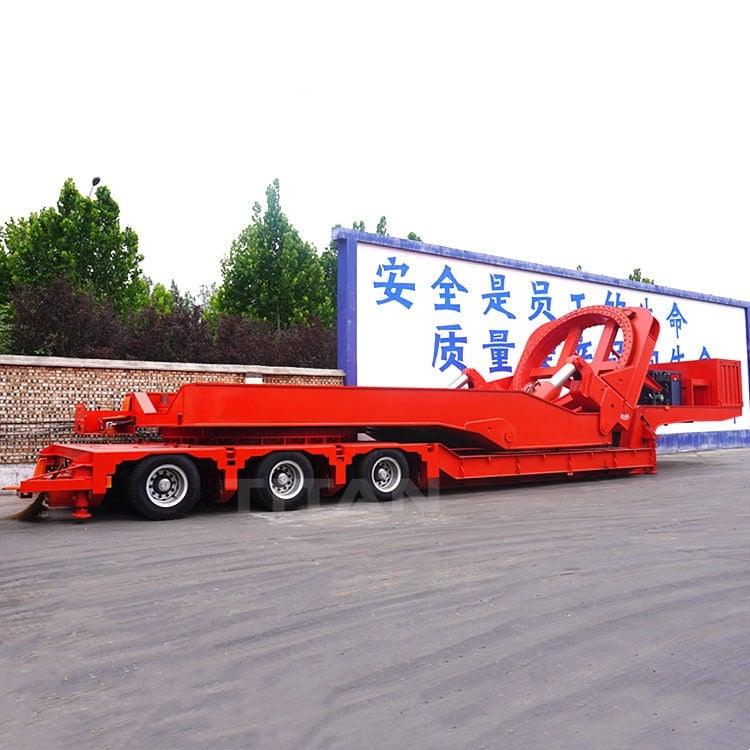

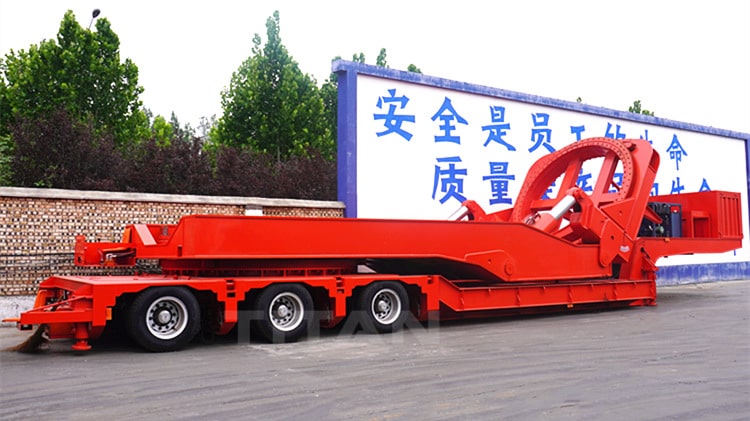

Wind Turbine Blade Transport Trailer

Wind Turbine Blade Transport Trailer Product Description:

This mode of transportation generally uses a special blade transport vehicle with blade lifting-rotating-hydraulic rear wheel steering. The special vehicle can lift the blades through hydraulic control during driving, and rotate 360° degrees by itself, avoiding various restrictive obstacles (mountain slopes, trees, houses, bridges, tunnels, etc.) during transportation, thereby greatly reducing blades the overall length of the transport body improves the performance of cornering.

wind turbine blade transport

wind turbine trailer

wind turbine blade transport trailer for sale

Specification:

Brand: TITAN Adapter trailer for 80m wind turbine blade transportation

Dimension: 16250mm*3700mm*5000mm

Loading capacity: 23.5 Tons

Axle: 3 lines 6 axles

Max rotation angle: 360°

Hydraulic station: 40KW Four-cylinder Diesel Engine

Tail: Slewing support cylinder with tooling at the tail (horizontally telescopic); with pusher

Transportable wind blade specification: 121-155 model

Diameter of lifting cylinder: 320mm; four-axis tire 8.25R16

Advantage:

1. These type of trailers are used to transport turbine blades on mountain roads and curved roads as well.

2. Because of the fact that extendable trailers are too long, when it comes to a mountain road, it is hard to steer hence the need for the special blade trailer.

3. The design is made in such a way that the blade adaptor can lift up and down making it easier for the trailer to steer easily.

Through this video, you can learn more details about 3 line 6 axle windmill rotor blade lifter , windmill rotor blade trailer , etc.
