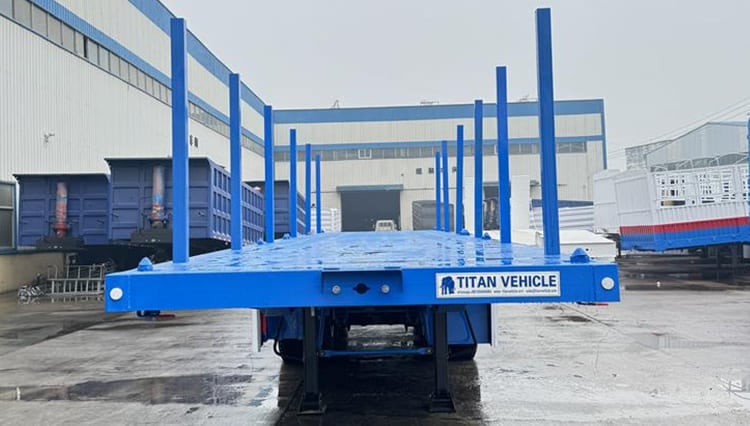

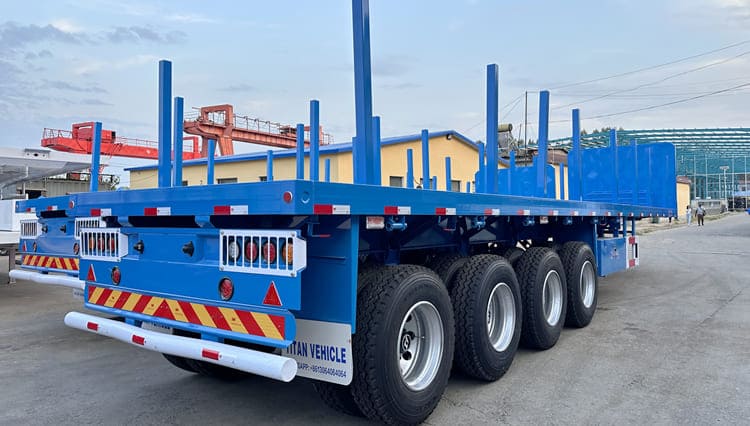

4 Axle Logging Truck Trailer

Logging Trailer for Sale: 15000 USD

This log truck trailer adopts a 4 axle heavy duty design, with the main beam made of Q345 high strength steel, which forms a stable load bearing structure through integral welding . Even when transporting 50 tons of long logs (equivalent to the timber volume of 20 mature trees), the flatbed of the logging trailer remains flat without deformation. The logging trailer performance in adapting to Senegal's road conditions—such as anti-vibration on rural gravel roads and stability on rainy season muddy roads—far exceeds industry basic standards.

Specification of Log Truck Trailer

Transport ：log/wood or 20/40ft container

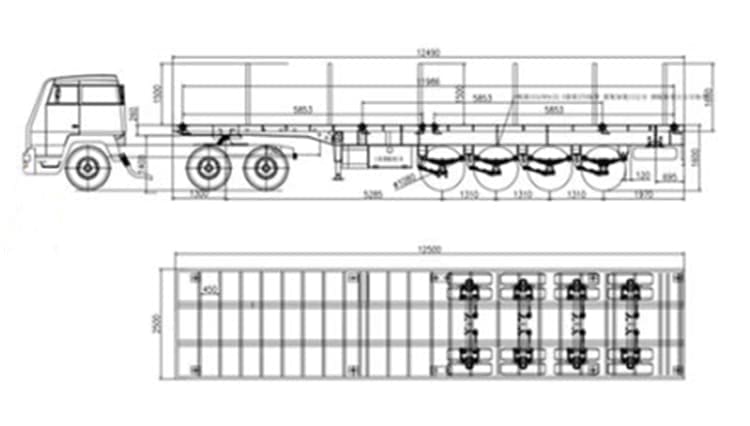

Overall dimension：12500mm * 2500mm *3260mm

Axles：4 axles

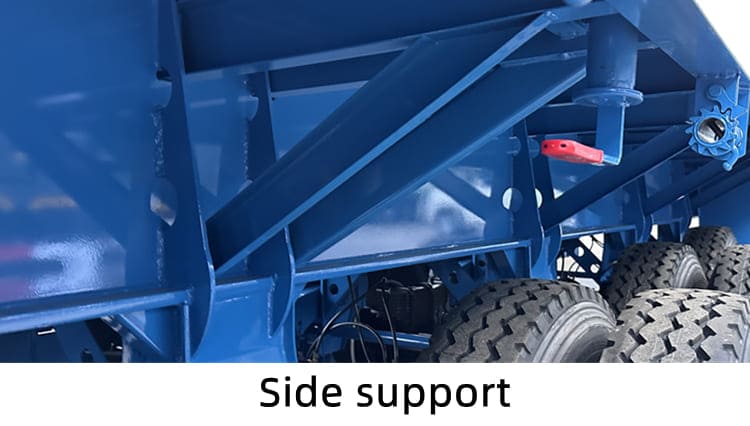

Sidebar : 16 pcs

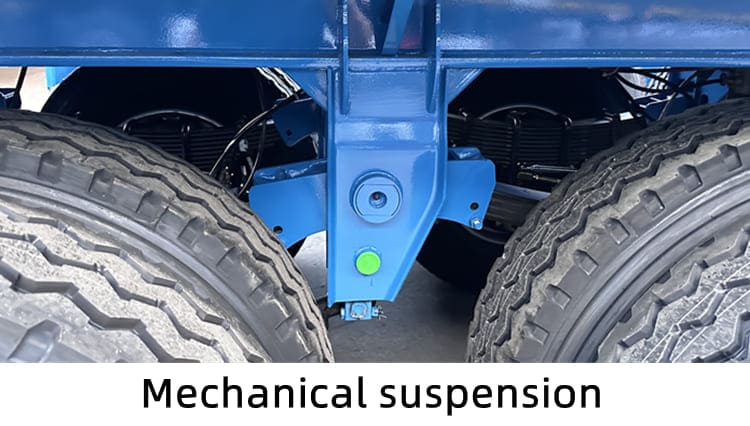

Suspension： Heavy-duty mechanical suspension

Tire：16 units

King pin：90#

Landing gear： JOST

Brake system: WABCO

Electrical system：24V, LED lights

Advantages of Logging Trailer

The flatbed of this logging trailer is paved with anti-slip checkered steel plate, and matched with 4 sets of adjustable hydraulic clamps, which can fix logs of different diameters and reduce the damage rate of timber during transportation by more than 30% . The front and rear of the log truck trailer are equipped with detachable guardrails, which can be quickly adjusted according to the length of the logs, adapting to both short-section processed timber and long-section raw logs transportation.

Aiming at Senegal's high temperature, high humidity and rainy season characteristics, the log truck trailer adopts a dual anti-corrosion process: the whole log truck trailer is derusted by shot blasting, and then coated with epoxy zinc-rich primer and polyurethane topcoat . This coating system can resist the corrosion of forest moisture and road mud, and maintain good gloss even under the strong sunlight in the Sahel region. The service life of the whole vehicle can reach more than 10 years under normal use.

The logging trailer adopts a modular design, which divides the vehicle into three parts: flatbed module, hydraulic clamping module and braking module, with universal interfaces between modules . This design greatly shortens the maintenance time. When parts need to be replaced, it can be completed in half a day, which is very suitable for the efficient operation needs of Senegal's forestry logistics. Optional configurations such as log length measuring device and rearview camera can be added according to customer requirements.

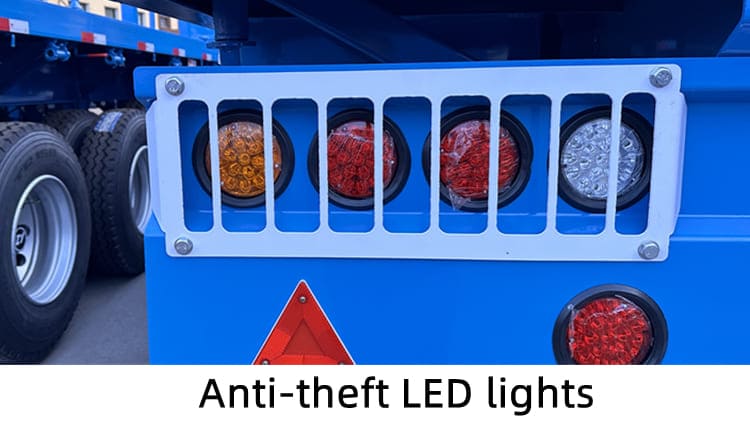

The log truck trailer is fully equipped with high-brightness LED warning lights and reflective strips along its entire perimeter. The 16 heavy-duty tires are designed with deep tread patterns—each with a groove depth of 18mm—that can effectively discharge mud and water accumulated on the road surface, significantly enhancing the grip on the muddy rural roads during Senegal's rainy season, thoroughly avoiding the risk of slipping or getting stuck, and thus comprehensively ensuring the safety of timber transportation.

Packing of Logging Trailer for Sale

Before shipment to Senegal, the logging trailer will be protected by multi-layer packaging to ensure that it arrives in good condition . First, the hydraulic clamp and other protruding parts of the log truck trailer are wrapped with EPE shock-absorbing cotton to prevent collision damage during transportation. Then, high-elastic foam is used to fill the gap between the trailer and the container to eliminate the shaking space of the logging trailer.

Finally, the inner wall of the container is covered with a waterproof and moisture-proof film to isolate the sea spray during the transportation from Dakar Port and the humid air in the rainy season of Senegal. This full-process protection measure ensures that the log truck trailer can be put into use immediately after arriving at the destination.
