13M Side Tipper Trailer with Fence

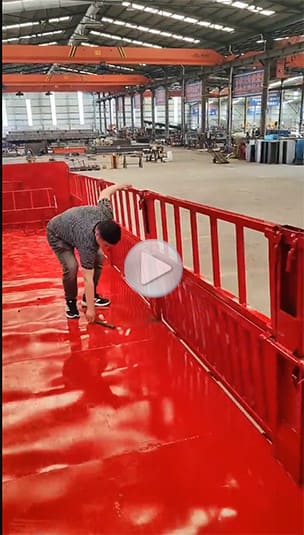

On the basis of the original side tipper trailer, this king of side tipper trailer has added fence on it, which makes the transportation of goods more flexible and the types of goods to be transported are more diverse.

Diagonal bracing reinforcement is very important, the more fulcrums, the higher the reliability

Diagonal bracing, when it rolls over, most of the weight of the cargo is borne by diagonal bracing. Therefore, the firmness of diagonal bracing is very important. Once the diagonal brace has a problem, it will easily cause a rollover accident. Therefore, the reinforcement of the diagonal brace is very important. In the picture above, one support point has 6 channel steel reinforcements.

The number of diagonal braces should be reasonable. Of course, the more the better, the more rollover braces, the smaller the force that each pivot can bear, and the higher the reliability. Generally, there are 5 pivots for 13m rollover and 6 for 15m.

Pay attention to the rotating bracket at the top of the diagonal brace. The pin must be pulled out when the side tipper trailer rolls over. If the design here is unreasonable, it will be easy to pull out if it is bent a little, which will affect the unloading.
