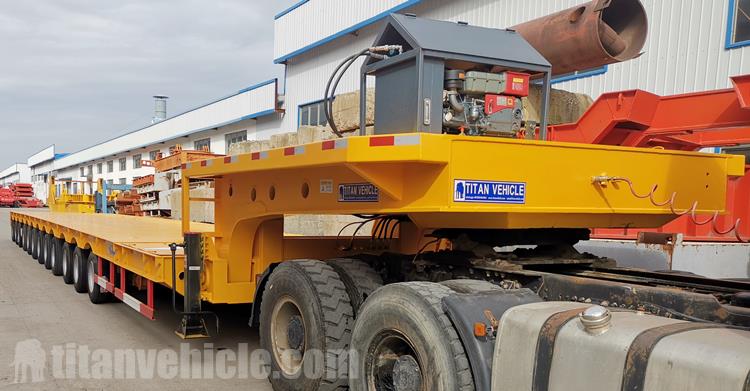

12 Axle Extendable Lowbed Trailer for Sale In Vietnam

Customers choose us because there are many TITAN extendable lowbed semi trailers used to transport wind blade equipment. Most of the extendable semi trailers are specially customized according to the needs of customers. Just like this customer's 12 axle extendable lowbed trailer.

The six axles in the front 1, 2, 3, and the 10th, 11th, and 12th rear axles are all lifting axles, and the 4th, 5th, 6, 7, 8, and 9 axles in the middle are hydraulic steering axles in the same direction. The corners of the tires on the same side of the bridge are the same. The tires are 215/75R17.5.

The six steering axles are controlled by hydraulic cylinders (controlled by the upper steering cylinder mechanism on the gooseneck). The car has the functions of follow-up steering and manual steering control. We can customize according to customer needs and provide professional suggestions for reference.

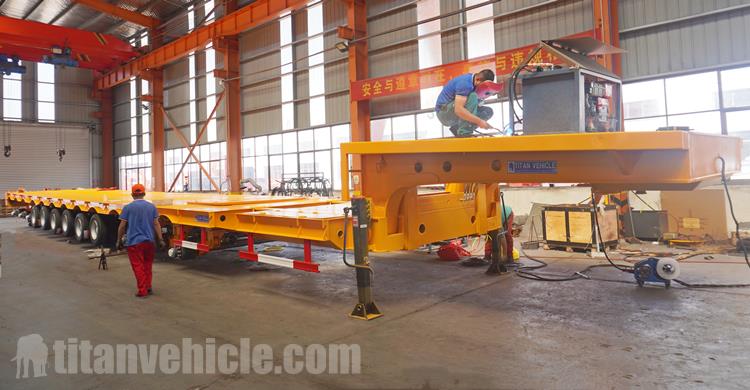

80 Ton Extendable Semi Trailer for Sale Price

Key Components of the Extendable Lowbed Trailer.

1. The Braking System

To further enhance swift operations with the extendable lowbed trailer, a braking system is provided. This includes a service brake, a dual-line automobile brake system, and a parking brake. An emergency relay valve, air reservoir, double-brake chamber, and a number of specifications for the components connecting to the pipeline. The supply and control lines are set separately. The most significant components include a connector attached to the tractor.

2. The Steering System

The steering system of an extendable trailer comprises a wheel steering mechanism, a gooseneck steering mechanism, and a matching hydraulic synchronous control circuit.

The gooseneck steering mechanism makes use of the tractor’s rotation in relation to the trailer in order to contract and expand the steering cylinder in a synchronous manner in relation to the wheelset steering mechanism.

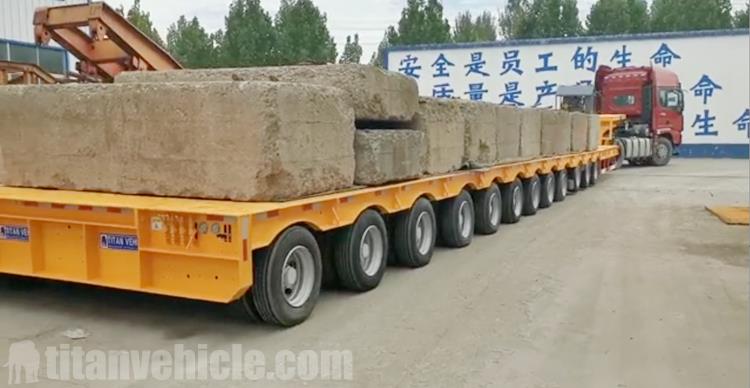

Testing of 12 Axle Extendable Low Bed Trailer Price

3. The Gooseneck Feature

The assembly and connection at the gooseneck point are usually made to the tractor saddle via the turntable, the wedge, and the traction pin. The extendable lowbed trailer gooseneck feature is a hydraulic part that is usually adjusted through a telescopic expansion of the hydraulic cylinder.

As the tractor rotates, the steering cylinder gets pushed and transmitted to the steering bridge of the extendable container chassis trailer via the hydraulic circuit. The steering mechanism towing the 12 axle extendable lowbed trailer is usually attached to the gooseneck.

4. The System's Power Unit

The extendable lowbed trailer for sale power unit is made up of a small diesel engine, which is the main prime mover. Other components include a hydraulic oil tank, control lines, and pipelines, hydraulic pump. The unit offers a hydraulic source for the trailer’s hydraulic system.

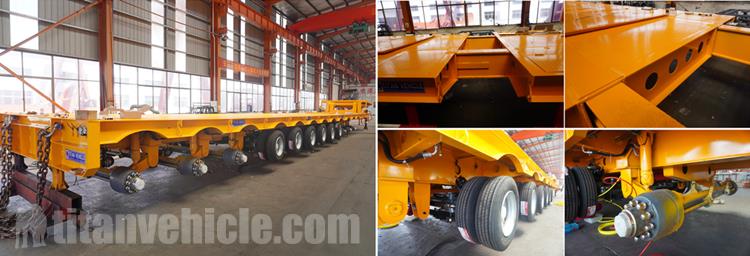

Factory Show of 12 Axle Extendable Lowbed Trailer

5. The Electrical System

A 24V single-wire system forms the electrical system of the extendable trailer. In totality, the electrical system includes lights, connectors, and wires among other components. The electrical connection attached to the tractor chosen is the national standard 24N type electrical connector.

The external signaling and lighting components are usually provided with brake lights, rear position lights, and position lights among others as deemed useful for use in this application.

6. The Hydraulic System

The 80 ton extendable lowbed trailer basic components of the hydraulic system is hydraulic valve blocks, joints, and pipes. The entire system comes with a hydraulic source by means of a power unit. There is also a safety valve installed in the circuit.

The telescopically extendable low bed trailer has a hydraulic system that comprises control circuits like suspension lifting, gooseneck lifting, synchronous steering, lateral adjustment, and lifting the ladder.

7. Trailer Frame

The extendable lowbed trailer for sale frame construction features the main beam, half plates to the left side and the right side, and a transverse device. The half plates to the left and right sides are linked to the main beam by means of the transverse device. The hydraulic gooseneck is attached to the frame head and a hydraulic ladder is fitted at the rear section.

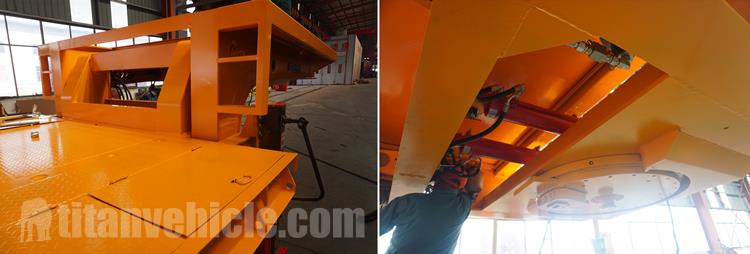

Extendable Lowbed Trailer Manufacturer for Sale

You can learn about different types of extendable trailers (like 3 axle extendable trailer, 4 axle 56 meters extendable trailer, 6 axle 62 meters extendable trailer, 6 axle 62 meters trailer , wind blade trailer , 6 axle 62 meters trailer for sale). And the process, testing, packaging and customer feedback, etc.

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
