Different Parameters, Different Price. Price Reference Only.

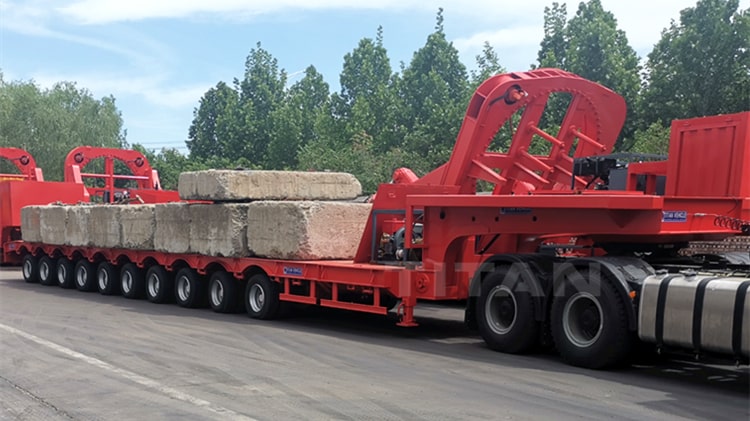

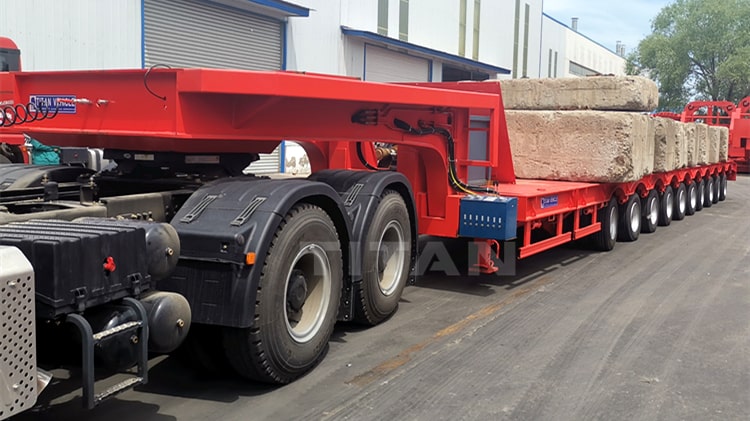

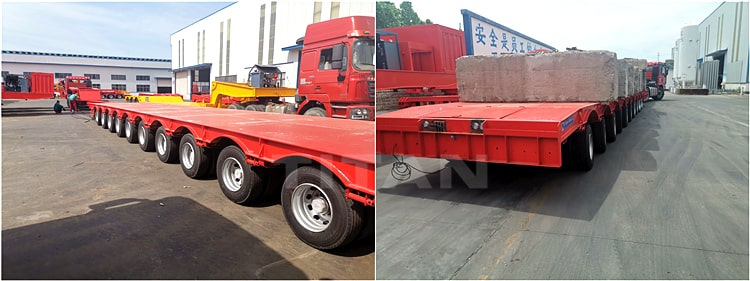

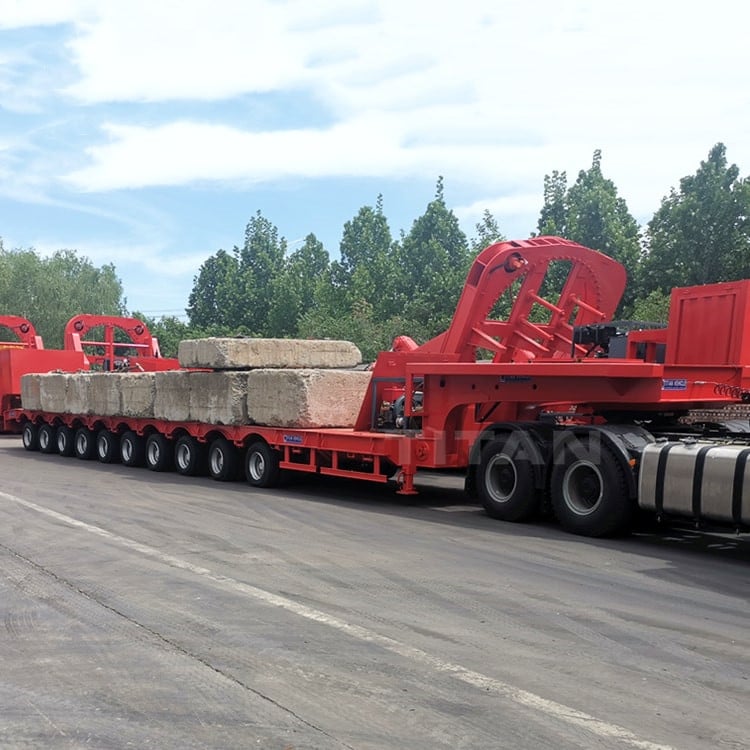

TITAN 10 axle extendable trailer have proven to be the most efficient, lightest-weight option for customers.

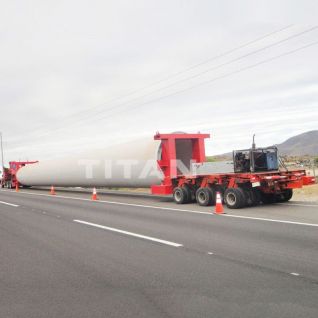

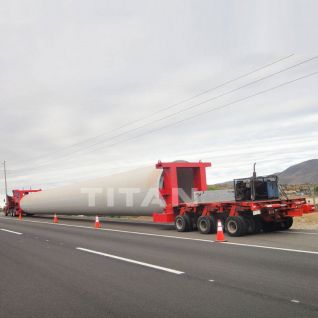

It can transport heavy loads and wind tower.

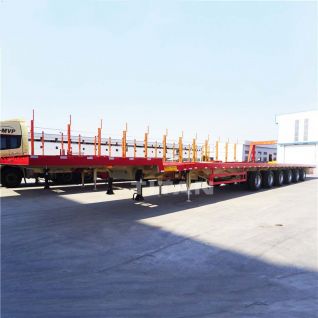

This design of the extendable trailer is the newest, making the most extended length of the trailer. The trailer’s most significant feature is that the three extensions are in the front of the trailer. The single-beam can reduce the telescopic beam’s weight to the most and lightweight the trailer in a good way.

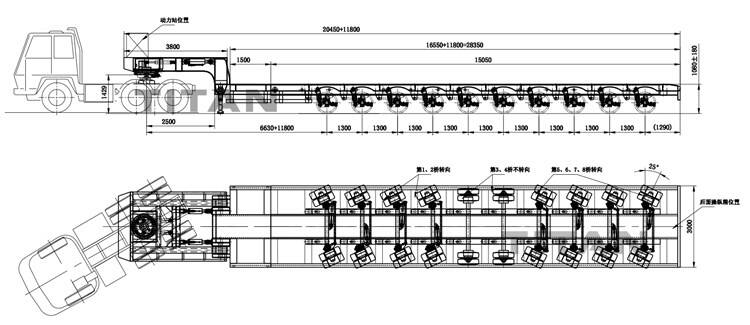

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)
33,500mm X 2,990mm X 950mm ( extension state)
Deadweight without ramps: 28.5 Ton
Deadweight with ramps: 29.5 Ton
Frame: HG60 high strength steel frame
Loading capacity: 90 Ton
Length: 18,500mm at closed state; 33,500mm after total extended
Width: 2,990mm + 2 X 250mm side swing bracket
Axle: 10 Axles
Maximum steering angle: +/-25°
Tyre: 40 units, 215/75R17.5
Gooseneck: Hydraulic gooseneck
Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)
Hydraulic power station: 1 set,12Kw diesel engine
Loading Ramps: 1 set, detachable ramps
Landing gear: JOST C200
Operation 2 wireless remote control: + 1 control valve panel
1. 250mm wideners are equipped on both sides of the load-bearing platform; the length of the load-bearing platform is 14.5m, with a 2-level tensile structure, which can stretch 7500x2 to meet the requirements of 29m after the freight platform is stretched;
2. The gooseneck is a power gooseneck, with a device for adjusting the height of the cargo platform and setting the steering part of the axle;
3. The suspension is hydraulic suspension, with lifting function, the force between the axles is balanced by the suspension cylinder, and it has the function of lifting the axle independently;
4. This car has 10 axles, and the axles include 8 active steering axles, 4 in the front and 4 axles in the back; The tires are 235/75R17.5;
5. The active steering axle is controlled by hydraulic cylinders.

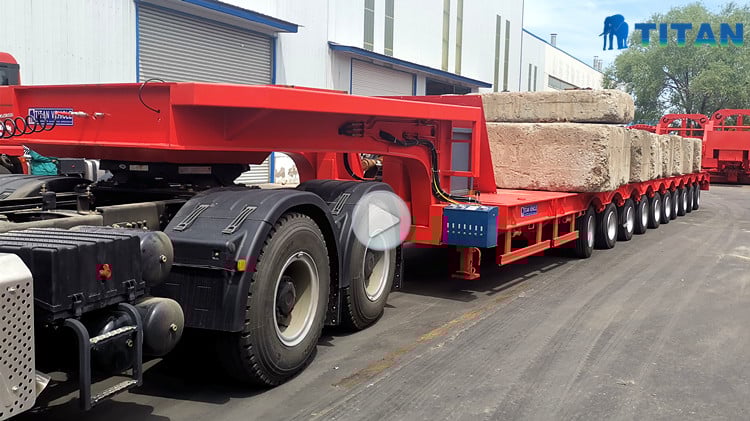

10-axle extendable trailer details display video
