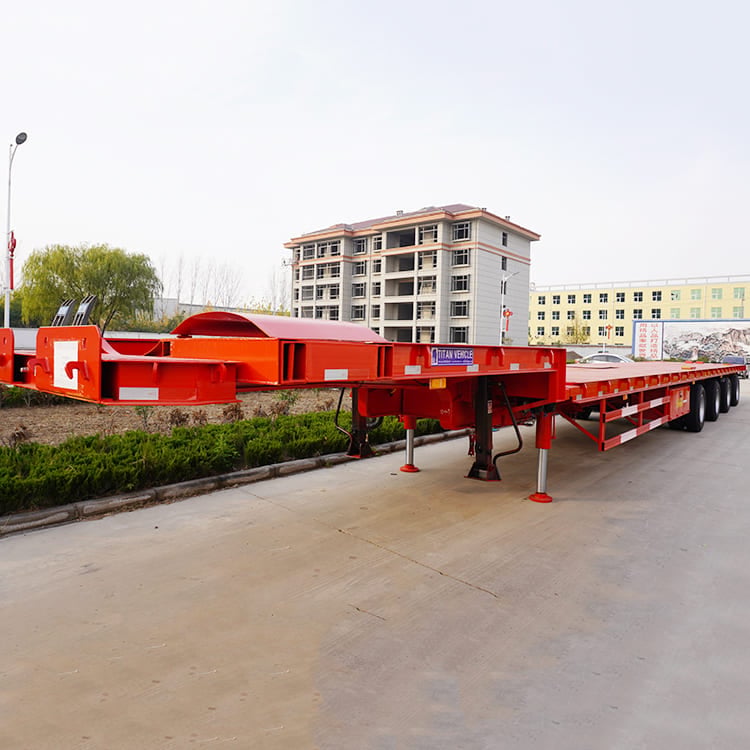

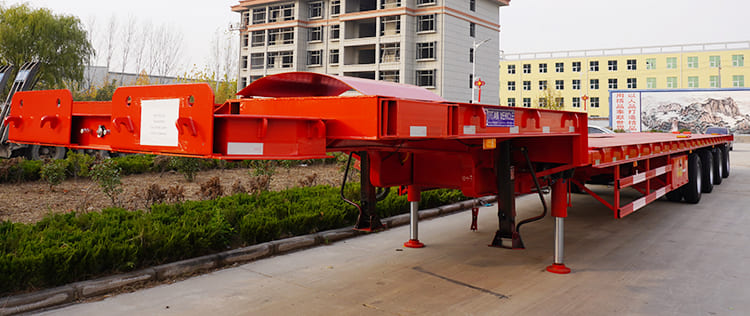

4 Axle 56M Extendable Wind Blade Trailer

56M Extendable Wind Blade Trailer:

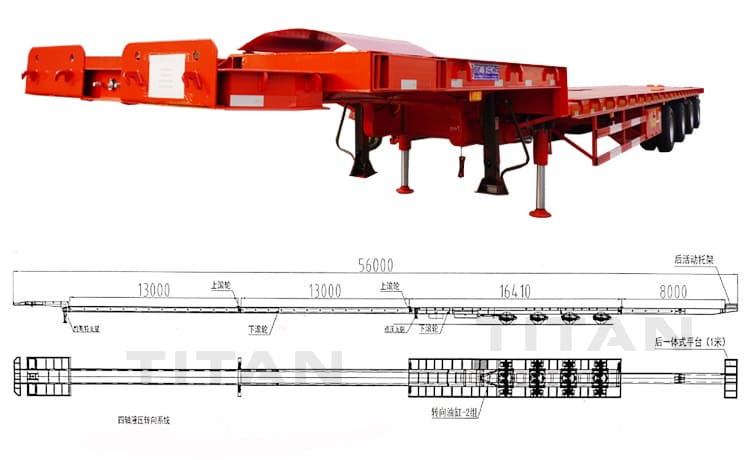

The extendable beam of this 4 axle 56m extendable wind blade trailer consists of 2 or 3 parts. The total length of the extendable beam can reach 56m.

4 axle 56m extendable wind blade trailer was originally designed with mechanical axles, allowing the lowbed trailer to connect to a extendable beam, allowing the length of the low bed trailer to be adjusted.

This extendable beam can also be assembled with other semi-trailers like flatbed trailers, extendable drop deck trailers, and extendable lowboy trailers.

4 Axle 56M Extendable Trailer for Sale | Wind Blade Trailers for Sale in Vietnam

4 Axle 56M Extendable Trailer for Sale | Wind Blade Trailers for Sale in Vietnam

4 Axle 56M Extendable Trailer for Sale | Wind Blade Trailers for Sale in Vietnam

56M Extendable Wind Blade Trailer Specification:

Dimension: 22,450mmX3120mmX1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Platform thickness: 3 mm

Hydraulic power station: Diesel engine

Axle: 4 axle

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Tire: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

4 Axle 56M Extendable Trailer for Sale | Wind Blade Trailers for Sale in Vietnam

Through the video, you can know different types of 4 axle extendable windblade trailer , 56m extendable trailer , extendable trailers for blade , etc.

Please click "TITAN Extendable Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
