50M Extendable Wind Blade Trailer
50M Extendable Wind Blade Trailer

50M Extendable Wind Blade Trailer

61530 USD

Different Parameters, Different Price. Price Reference Only.



TITAN produces Extendable Modular Windmill Turbine Blade Trailer for Carrying 45 meters to 80 meters Wind Blade

SKU: 50M Extendable Wind Blade Trailer
GTIN: 6975766110659
MPN: TITAN9411013
Brand: TITAN

Product Description:

TITAN Extendable Modular Windmill Turbine Blade Trailer for Carrying Wind Blade.TITAN Extendable Modular Trailer is noted for their highly robust frames and outstanding stability of the extension beam.

TITAN Extendable Modular Trailer adapts perfectly to haul 45 meters to 80 meters long windmill turbine blade transportation and long bulky goods.the high standard of the workmanship and welding process ensures easy adjustment of the extension beams.

50M Extendable Wind BladeTrailer is used for transportation of Wind Turbine Blade with lengths up to 80m. The 50m extendable trailer is available in extension configurations. All our extendable trailers have the option of using the Air suspension system (for sensitive cargo like wind turbine blades) or Hydraulic suspension system (for heavier payload cargo like Wind Turbine Blade mold transportation).

The 50meter four-axis steering bracket lifts and lowers after the 22.25-meter pull-out gooseneck (four-axle hydraulic steering within 80 meters, or a long-distance blade transport vehicle with hydraulic lift with one bridge, suitable for land blade transportation within 80 meters).

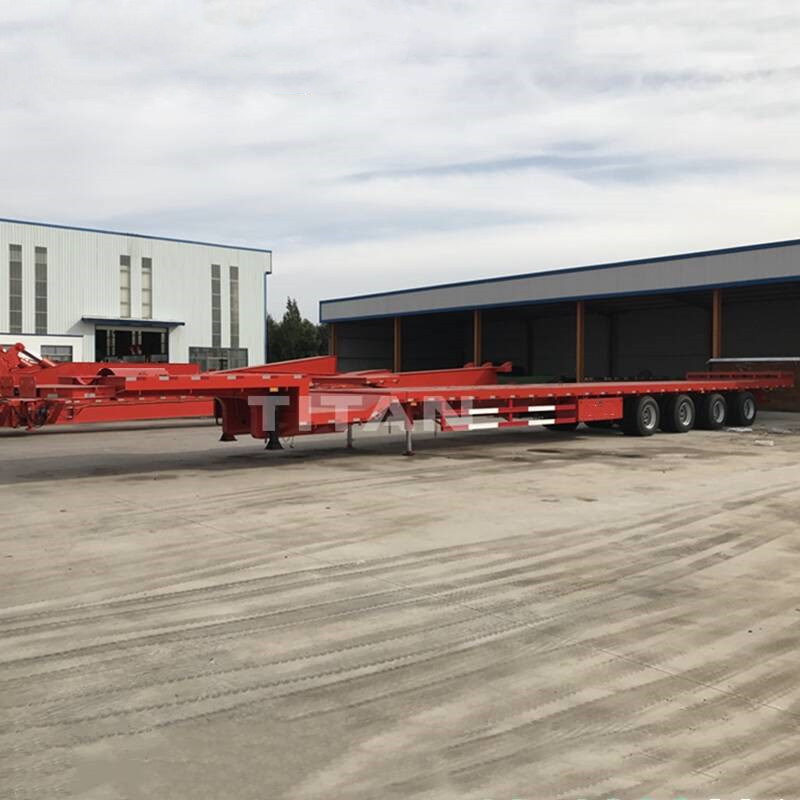

50M Extendable Wind Blade Trailer

50M Extendable Wind Blade Trailer

50M Extendable Wind Blade Trailer For Sale

4 Axle Extendable Wind Blade Trailer Price

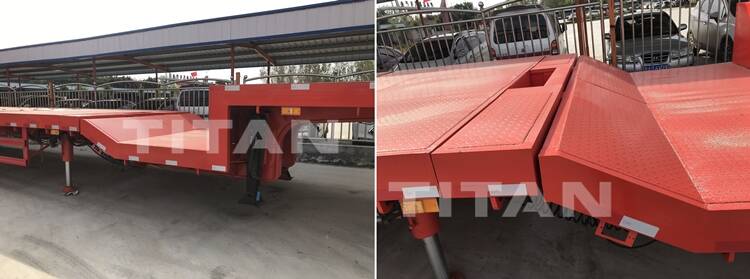

Details of Wind Turbine Transport

Details of Wind Turbine Transport

Drawing of Extendable Trailer



Advantage:

1.Trailer's length from 22.25 meters extend to 50 meters

2.Transport the 45 meters to 80 meters Windmill Turbine Blade.

3.Loading capacity is up to 90 ton

4.Steerable axles, all wheels steering.

5.Highly robust frames and outstanding stability of extension beam.

6.Mechanical spring suspension, air suspension or hydraulic suspension is an option

7.Manual valve operation and wireless remote control.



Specification:

Brand: TITAN 58M 4 Axle Extendable Blades Wind Turbine Trailer

Dimension: 22,450mmX3120mmX 1580mm

Total length: 61,000mm after extension

Loading capacity: 90 Ton

Hydraulic power station: Diesel engine

Axle: 4  axle

Suspension: Hydraulic suspension.

Tyre: 16 units, Triangle brand

Braking system: WABCO emergency valve

King pin: 3.5 inch high tensile steel bolted type

Landing gear: JOST C200



Extendable Wind Blade Trailer details video display

50M Extendable Wind Blade Trailer details video display

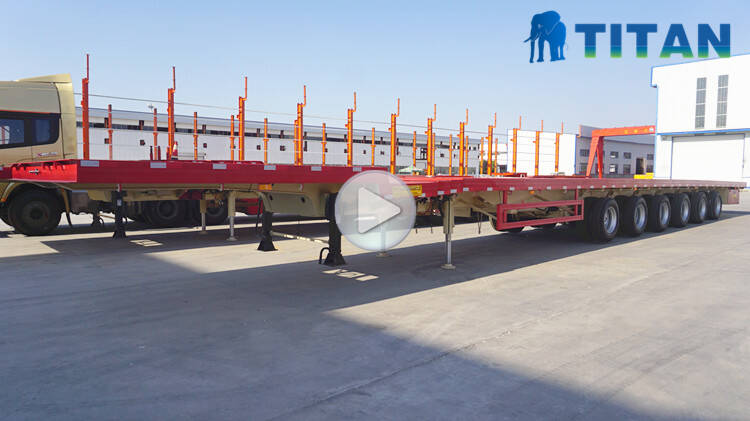

wind turbine blade transportation extendable trailer

                          wind blad trailer testing

Please click "TITAN Wind Blade Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
