Transporting heavy cargos and wind turbine blades is the main task of the TITAN 5 axle extendable wind turbine trailer. This extendable low bed trailer can extend up to 60 meters.
The TITAN extendable low bed trailer features a flat, expandable load floor and hydraulic forced steering. The very large steering angle of the TITAN makes the TITAN wind turbine trailers known for its agile maneuverability. In addition, the high-quality tires used by the TITAN make the tires less prone to wear and tear, greatly reducing maintenance costs for heavy-duty trailers.
The longest transportation length of this wind turbine trailers is 56m, which can be widely used in the transportation of long goods.
5 Axle Extendable Low Bed Trailer | Wind Turbine Trailers fro Transportation of Wind Turbine Blades
5 Axle Extendable Low Bed Trailer | Wind Turbine Trailers fro Transportation of Wind Turbine Blades
Brand: TITAN 5 Axle Extendable Wind Turbine Trailer
Dimension: 22,450mmX3120mmX 1580mm

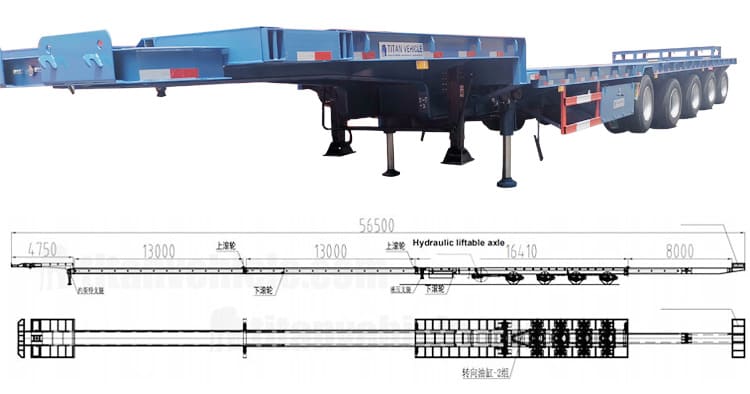

Total length: 56,500mm after extension
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 5 axle
Suspension: Hydraulic suspension.
Tire: 16 units, Triangle brand
Braking system: WABCO emergency valve
King pin: 3.5 inch high tensile steel bolted type
Landing gear: JOST C200
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box
Shipping Terms: By bulk cargo, RORO or 40HQ containers
5 Axle Extendable Low Bed Trailer | Wind Turbine Trailers fro Transportation of Wind Turbine Blades

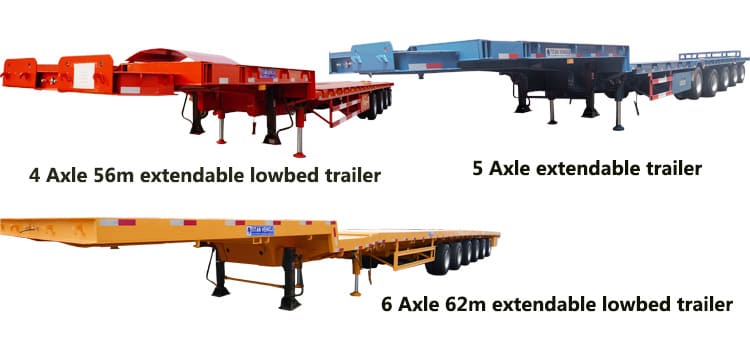

TITAN has different extension lengths of wind turbine trailers, like 4 axles 56m, 5 axles 56m, 6 axles 62m, 8 axles， 10 axles, etcextendable wind turbine trailers. Among them, 56m and 62m wind turbine trailers are the most popular models among our customers, Especially for Vietnam and Kazakhstan customers. TITAN can provide you with different lengths and configurations of blade trailer to meet your individual needs.
Through the video, you can know different types of 4 axle extendable wind turbine trailer , 56m extendable trailer , extendable trailers for blade , etc.
