3 Line 6 Axle Low Bed Gooseneck Trailer will bed sent to Kenya

80ton 3 Axle Low Bed Gooseneck Trailer for Sale in Kenya

 3 Line 6 Axle Low Bed Gooseneck Trailer for Sale in Kenya

This customer is our regular customer. Last year, this customer bought a low bed gooseneck trailer from TITAN for the first time, this year, the customer bought a low bed gooseneck trailer again from TITAN. The first time the customer bought the low bed gooseneck trailer, he was a little worried about whether he can receive the complete low bed gooseneck trailer after payment. So he kept contacting our salesman during the product transportation process, and didn't feel relieved until he received the complete trailer. And this time, he directly contacted our salesman to pay for the low bed gooseneck trailer. This time the customer bought a 80ton 3 axle low bed gooseneck trailer. He also satisfied with its quality.

80ton 3 Axle Low Bed Gooseneck Trailer for Sale in Kenya

6 Axle Low Bed Gooseneck Semi Trailer

A low bed gooseneck trailer work process

Low bed gooseneck trailers, better known by their English name “lowboy,” are distinctive elements for the transport of containers, equipment and heavy machinery Thanks to a series of characteristics that make them unique.

The vehicles are available in configurations from 2 to 8 axles, which can be lifted or swiveled, controlled automatically depending on the angle of the fifth wheel and manually using an independent wired or radio remote control. Especially for the needs of transporting various types of wheeled vehicles, passenger cars, vans, trailers, agricultural machines. Thanks to the hydraulic adjustment of the extension and tilt of horizontal platforms, the length of the set and the increase in the loading area of the rear load drawer, this set can be quickly adapted to the type of transported load. The maximum length of the collection is 18.6 m. The loading tread is covered with perforated sheets, which ensures the possibility of securing the amount in every place and gives proper anti-slip properties. Thanks to the use of a separate hydraulic aggregate mounted on the semi-trailer, the need for a semi-trailer tractor with a hydraulic outlet is eliminated, which makes the operation of the semi-trailer effortless.

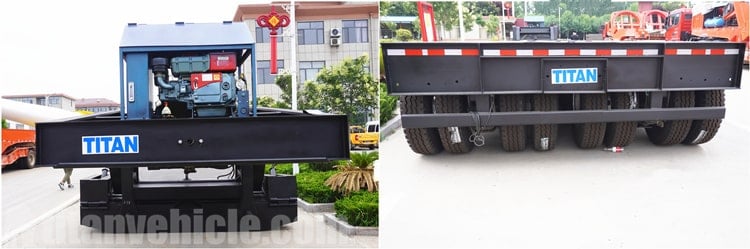

low bed gooseneck semi trailer

Details of the low bed gooseneck semi trailer

Overall structure of trailer

The characteristics of the low bed trailer are as follows:

(1) The use of the gun-car structure can significantly reduce the unevenness of the load on each wheel and make the load distribution reasonable.

(2) The body adopts a retractable structure, which can adjust the length of the body according to the change of the tank body length, and expand the scope of transportation of goods. Among them, the cargo platform can be raised by 300 InlTl from the lowest ground height, that is, when loading and unloading, the cargo platform 5 is in contact with the ground. At this time, operating the tank body can effectively reduce the deformation of the frame. After the tank body is installed, the tank body and the cargo platform are tied together with a wire rope. In this way, the rigidity of the tank body can be used during the transportation process, thereby reducing the installation of the cargo platform.

Structural analysis of the gooseneck  The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.  After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device. The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin. The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform. The lower position is the lowest position of the trailer, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.

(3) The cargo platform has the function of lifting. The lifting of the front part is realized by controlling the gooseneck part, and the lifting of the rear part is realized by the rear module. In the design process of the trailer, because the gooseneck is responsible for traction,

With multiple functions such as lifting and connecting, how to achieve the above functions and meet the requirements of strength and rigidity has become the focus of this vehicle.

Structural analysis of the gooseneck  The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.  After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device. The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin. The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform. The lower position is the lowest position of the trailer, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.

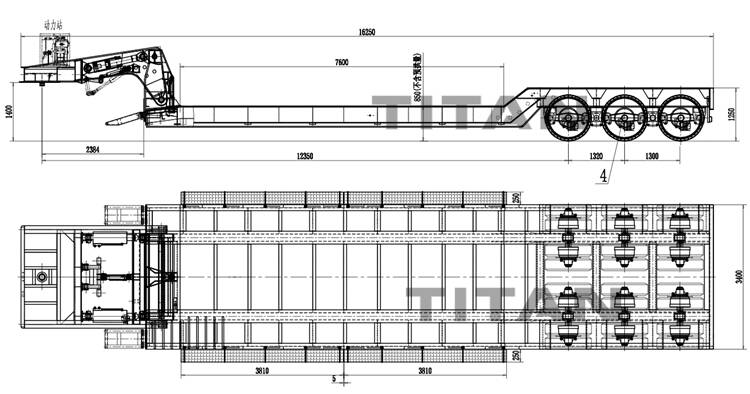

Drawing of the 80ton 3 line 6 axle low bed gooseneck trailer

Structural analysis of the gooseneck

The gooseneck part is composed of a traction pin, a lifting hydraulic cylinder, a pin shaft connected with the cargo platform, an eccentric block for fixing the position of the gooseneck, and a gooseneck. The gooseneck part is connected to the cargo platform by articulation, and a pair of lifting hydraulic cylinders are installed between the gooseneck and the cargo platform, which are driven by the hydraulic cylinder to realize the raising and lowering of the cargo platform.

After the cargo platform is raised or lowered, the position of the gooseneck and the cargo platform is fixed by an eccentric device. The eccentric device is welded by 16 Mn steel plate and steel pipe. It is installed in the hollow part of the gooseneck web and is connected to the gooseneck through a pin. The eccentric device has 2 plane positions through which it is in contact with the upper surface of the cargo platform. The lower position is the lowest position of the trailer, that is, the cargo platform is in contact with the ground; when the cargo platform is raised, under the action of gravity, the right plane Turning to the bottom, the oil pressure can be unloaded at this time, and the load is completely carried by the eccentric device. This position corresponds to the highest cargo platform.



You can download video, you can learn about different types of side wall semi trailers(like low bed gooseneck trailer , 60ton/80ton/100ton/120ton/150ton low bed gooseneck semi trailer , 80ton 3 axle low bed gooseneck trailer for sale). And the process, testing, packaging and customer feedback, etc.

videoRemovable Gooseneck Trailer Videos

This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
