10 Axle Extendable Wind Blade Semi Trailer
10 Axle Extendable Wind Blade Semi Trailer 10 Axle Extendable Wind Blade Semi Trailer

10 Axle Extendable Wind Blade Semi Trailer

61530 USD

This 10 axle extendable wind blade semi trailer adopts the latest advanced design, which effectively increases the length of the trailer. This  10 axle extendable wind blade semi trailer can be used to carry wind blades or other heavy goods.

SKU: 10 Axle Extendable Wind Blade Semi Trailer
GTIN: 6975766110642
MPN: TITAN9432022
Brand: TITAN

10 Axle Wind Blade Semi Trailer:

This wind blade semi trailer adopts the latest advanced design, which effectively increases the length of the trailer. The weight of the telescopic beam is effectively reduced due to the use of tough materials, and the weight of the whole vehicle is reduced.

This 10 axle wind blade semi trailer can be used to carry wind blades, mainly for the construction of wind power plants.

The 10 axle extedable drop deck trailer is used to transport extra long wind turbine blades. All of our extendable trailers have the option of using an air or hydraulic suspension system.

 10 Axle Extendable Drop Deck Trailers for Sale

Wind Blade Semi Trailer | 10 Axle Extendable Drop Deck Trailers for Sale

 10 Axle Extendable Drop Deck Trailers for Sale

Wind Blade Semi Trailer | 10 Axle Extendable Drop Deck Trailers for Sale

 10 Axle Extendable Drop Deck Trailers for Sale

Wind Blade Semi Trailer | 10 Axle Extendable Drop Deck Trailers for Sale

 10 Axle Extendable Drop Deck Trailers for Sale

Wind Blade Semi Trailer | 10 Axle Extendable Drop Deck Trailers for Sale



Wind Blade Semi Trailer Specification:

Dimension(L*W*H): 18,500mm X 2,990mm X 950mm ( closed state)

33,500mm X 2,990mm X 950mm ( extension state)

Deadweight without ramps: 28.5 Ton

Deadweight with ramps: 29.5 Ton

Frame: HG60 high strength steel frame

Loading capacity: 90 Ton

Length: 18,500mm at closed state; 33,500mm after total extended

Width: 2,990mm + 2 X 250mm side swing bracket

Height: 200mm+/-90mm

Axle: 10 Axles

Maximum steering angle: +/-25°

Tyre: 40 units, 215/75R17.5

Gooseneck: Hydraulic gooseneck

Suspension: Hydraulic lifting suspension (only for adjusting the platform levelling needed)

Hydraulic power station: 1 set,12Kw diesel engine

Loading Ramps: 1 set, detachable ramps

Landing gear: JOST C200

Operation 2 wireless remote control: + 1 control valve panel



10 axle extendable trailer

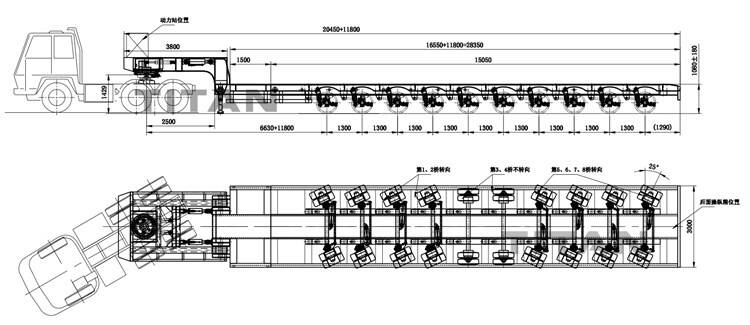

Drawing of the 10 Axle Extendable Drop Deck Trailer



10 axle wind blade semi trailer details display video

Please click "TITAN Wind Blade Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
