100 Ton Tri Axle Hydraulic Low Bed Trailer with Folding Ladders

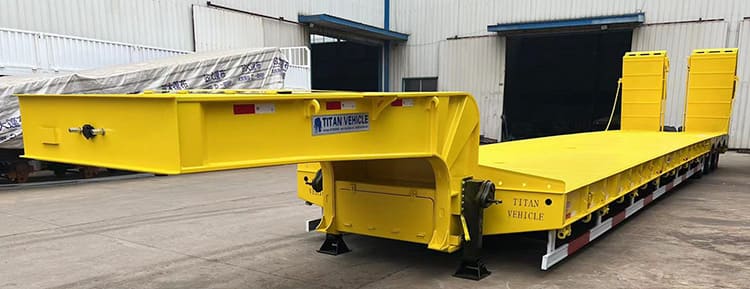

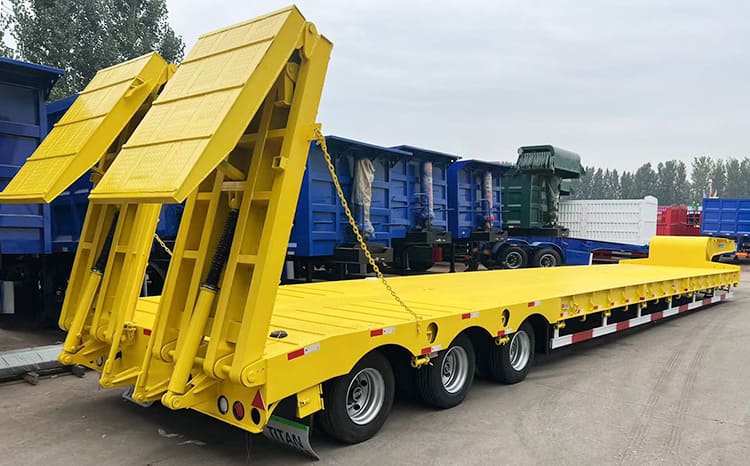

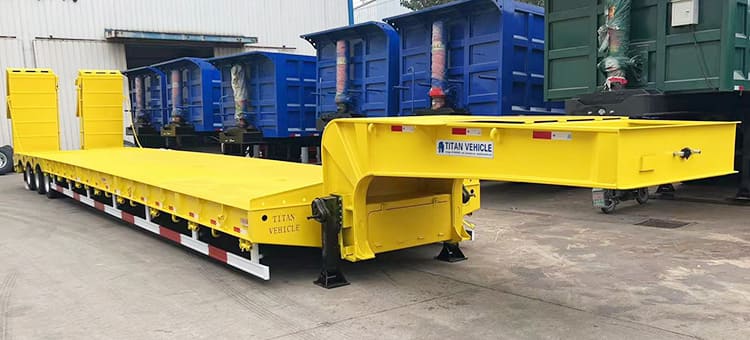

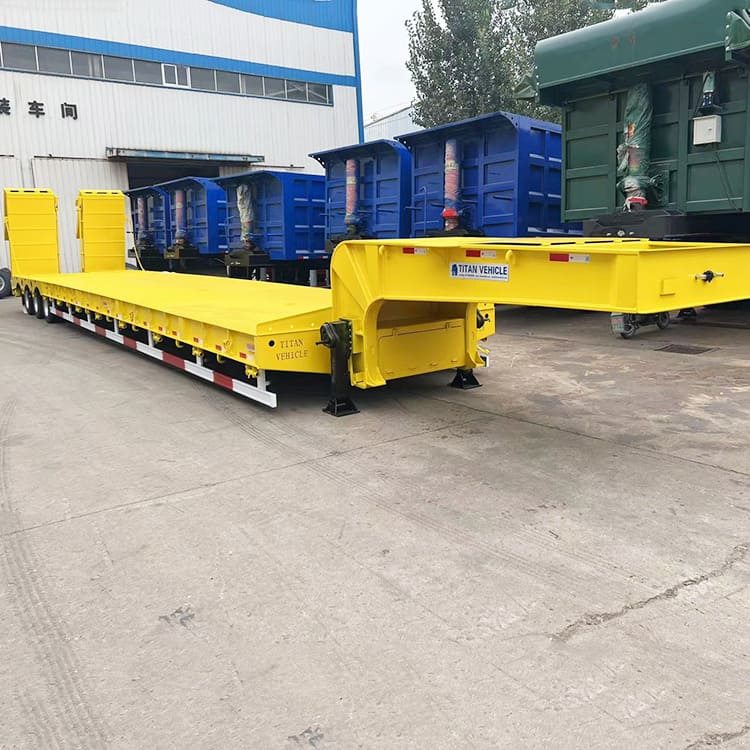

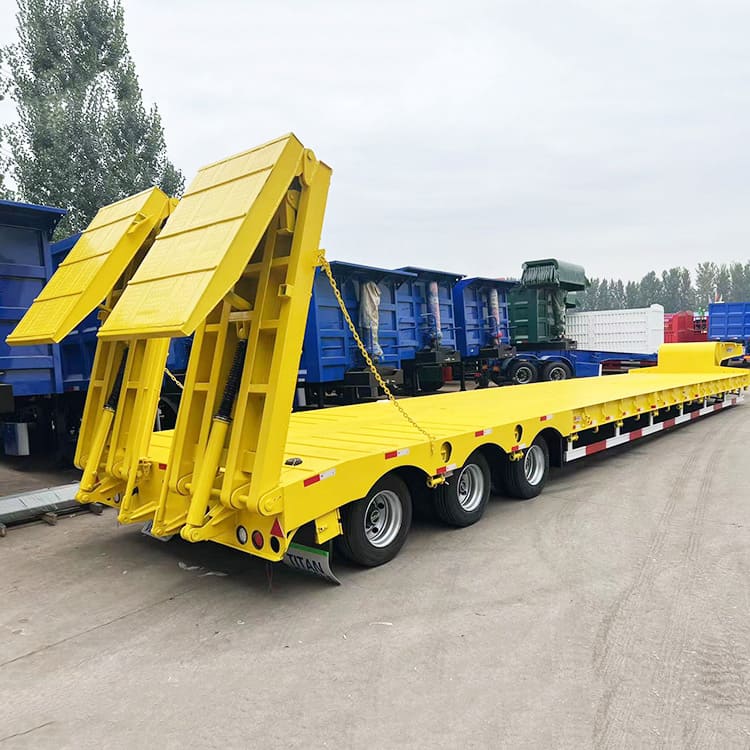

100 Ton Tri Axle Hydraulic Low Bed Trailer

TITAN 100 ton tri axle hydraulic low bed trailer with folding ladders mainly used to loading heavy cargos, like the excavtor. And the folding ladders of the 100t tri axle hydraulic low bed trailer can help the cargo loading and unloading more easily.

TITAN provide customers the best 2 axle, 3 axle, 4 axle, 5 axle, 6 axle hydraulic low bed trailer and so on, and with different capacities.

100 Ton Tri Axle Hydraulic Low Bed Trailer with Folding Ladders for Sale Price

100 Ton Tri Axle Hydraulic Low Bed Trailer with Folding Ladders for Sale Price

100 Ton Tri Axle Hydraulic Low Bed Trailer with Folding Ladders for Sale Price

100 Ton Hydraulic Low Bed Trailer Specification

Overall dimension: 18200mm * 3000mm *3700mm

Loading capacity(T): 100 tons

Axle: 3 axle,  13T/16T, FUWA / BPW  Brand

Rim: 8.0-20

Tire: 12units, 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: folding ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

ABS: Optional

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.

Accessories: One standard tool box

Shipping Terms: By bulk cargo, RORO or 40HQ containers

100 Ton Tri Axle Hydraulic Low Bed Trailer with Folding Ladders for Sale Price

Video of the Hydraulic Low Bed Trailer with Folding Ladder

Through this videos, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
