4 Axle Low Bed Trailer Truck
4 Axle Low Bed Trailer Truck

4 Axle Low Bed Trailer Truck

12800 USD

Different Parameters, Different Price. Price Reference Only.



120 ton 4 Axle Low Bed Trailer Truck for Sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

SKU: 4 Axle Low Bed Trailer Truck
GTIN: 06975766110529
MPN: TITAN9403TDP033
Brand: TITAN

Product description:

120 ton 4 Axle Low Bed Trailer Truck for Sale use high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

TITAN 120 ton 4 Axle Low Bed Trailer Truck for Sale Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm. That durable and stronger construction ensure the loading capacity, and also improve its capacity to twisting forces, shock, bump, and meet load requirements on bad road condition.

4 Axle 120 Ton Low Bed Trailer Truck for Sale in Gabon

4 Axle 120 Ton Low Bed Trailer Truck for Sale in Gabon

4 Axle 120 Ton Low Bed Trailer Truck for Sale in Gabon

4 Axle Low Bed Trailer Truck for Sale near me

4 Axle 120 Ton Low Bed Trailer Truck for Sale in Gabon



Specification:

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

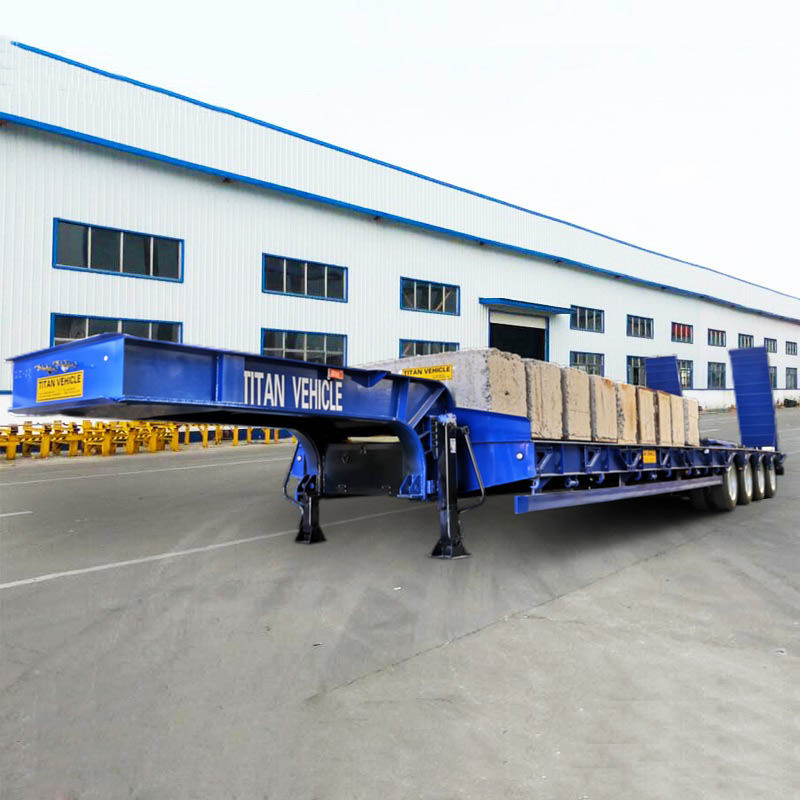

4 Axle 100 Ton Lowbed Semi Trailer details display video



4 Axle 100 Ton Lowbed Semi Trailer details



Please click "TITAN Lowbed Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
