The 120t removable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor.
The 120t removable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This type of a low-bed trailer has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors. This trailer type is usually attached to the tractor using a gooseneck that is normally detached from the front end of the trailer.
The detachment is done after lowering the trailer front end into ground engagement to further enable front end loading and offloading of the heavy equipment onto and from the flat deck of the trailer.
120T Removable Gooseneck Trailer for Sale
120T Removable Gooseneck Trailer for Sale
120T Removable Gooseneck Trailer for Sale
120T Removable Gooseneck Trailer , Removable Gooseneck Trailer for Sale , 3 Line 6 Axle Removable Gooseneck Semi Trailer, Panda trailer, Panda 120ton removable gooseneck trailer

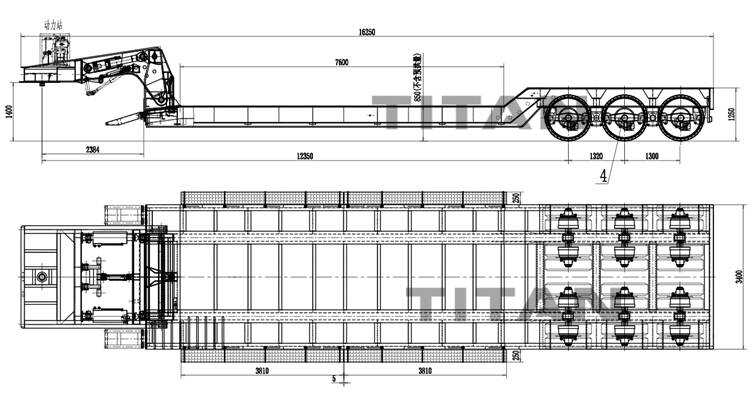

Dimension: 17000mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 3 line 6 axle
Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

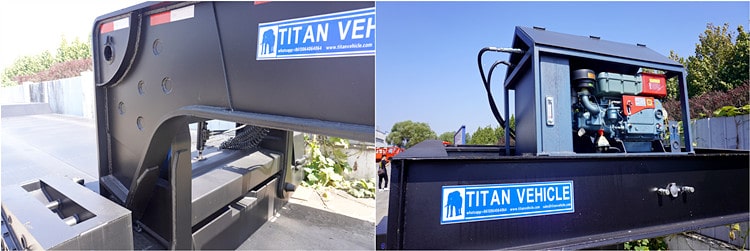

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
120T Removable Gooseneck Trailer , Removable Gooseneck Trailer for Sale , 3 Line 6 Axle Removable Gooseneck Semi Trailer, Panda trailer, Panda 120ton removable gooseneck trailer

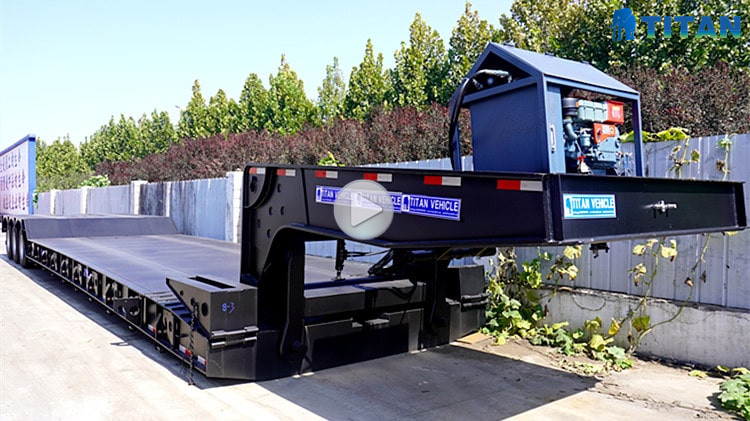

Through the video, you can know more details of 120T Removable Gooseneck Trailer , etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
