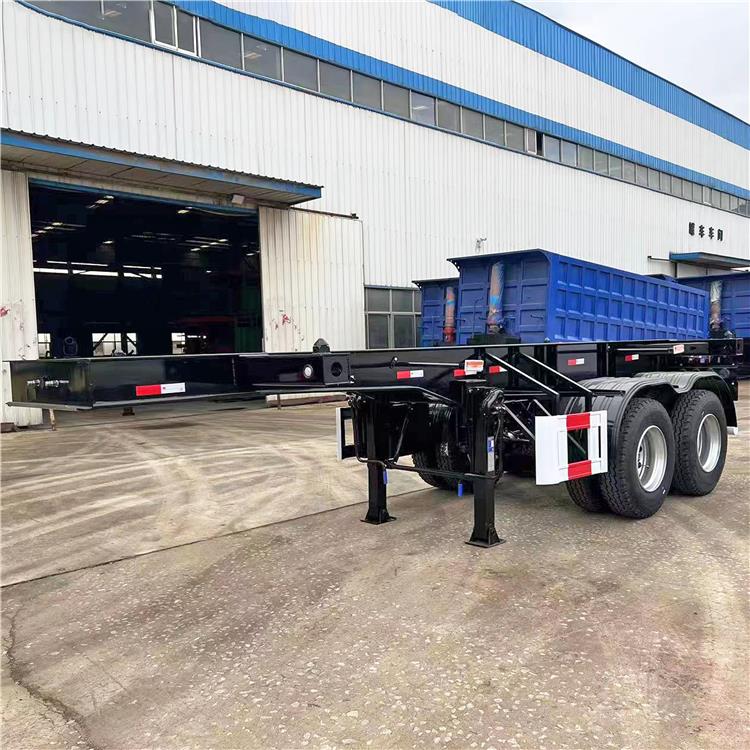

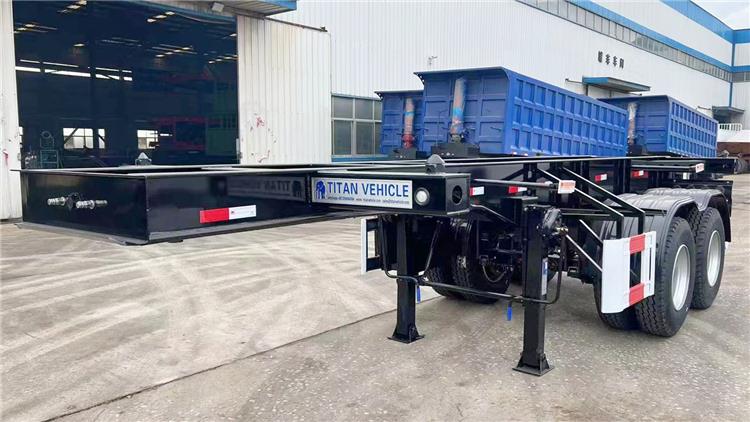

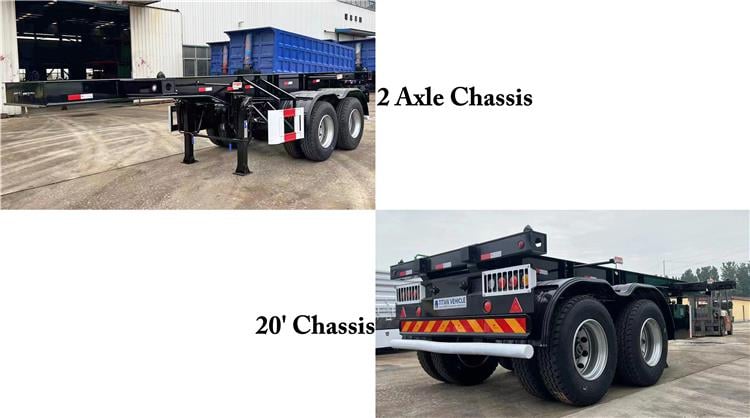

2 Axle 20' Chassis Trailer

Video of 2 Axle 20' Chassis Trailer



2 Axle 20' Chassis Trailer Price: 7500 USD

The 2 Axle 20' chassis trailer is a lightweight transport vehicle specifically designed to carry a single standard 20-foot ISO container. Due to its compact structure and high flexibility, it is widely used in heavy-duty short-haul and urban logistics distribution.

20-foot containers are commonly used to load high-density heavy cargo such as ores, cement, metals, and liquid tanks (ISO tanks). The 2 Axle 20' chassis trailer provides targeted load-bearing support. It facilitates frequent transshipment of 20-foot standard containers between port terminals, railway freight yards, and surrounding warehousing parks.

2 Axle 20' Chassis Trailer for Sale In Jamaica

2 Axle 20' Chassis Trailer for Sale In Jamaica

2 Axle 20' Chassis Trailer for Sale In Jamaica

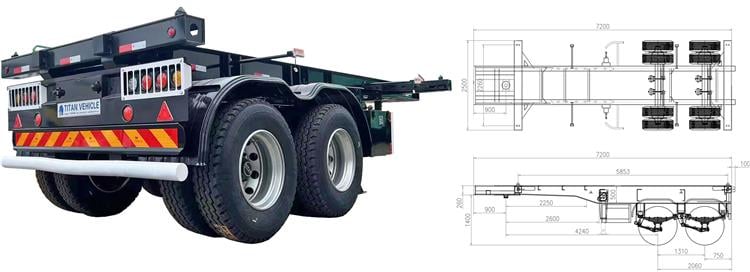

Specifications of 2 Axle Chassis Trailer

Dimension(mm): 7500x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 2 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

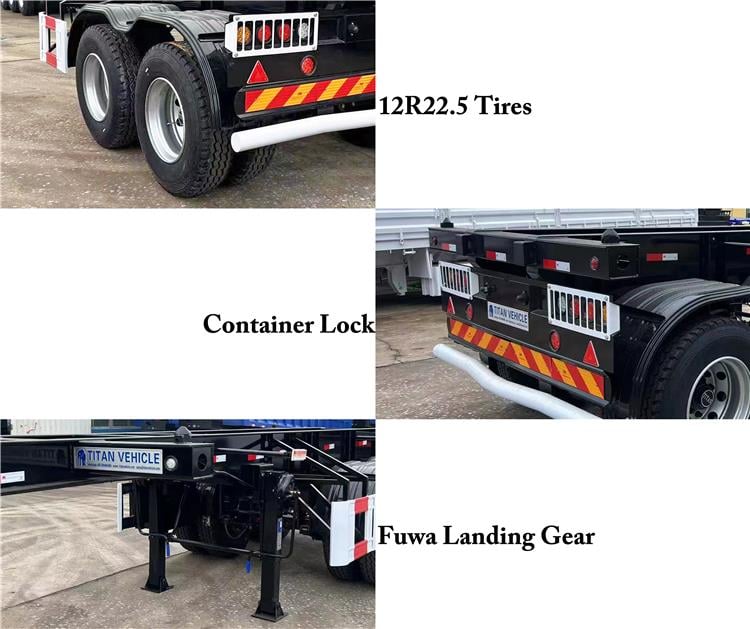

Tire: 8 units, 12R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Advantage of 2 Axle 20' Chassis Trailer

Compared to 40-foot or 45-foot long semi-trailers, the 2 axle 20' chassis trailer's frame is much easier to reverse, move, and turn, greatly reducing the difficulty for drivers operating in confined spaces. The main beams of the 2 axle 20' chassis trailer are specifically reinforced for the concentrated loads of the 20-foot container, avoiding the central sinking and deformation problems that can easily occur when a long chassis carries heavy small containers.

The 2 axle 20' chassis trailer features a high-strength steel (Q345B or T700) main beam structure with automated submerged arc welding to ensure bending strength, specifically designed to handle the concentrated loads of 20-foot containers.

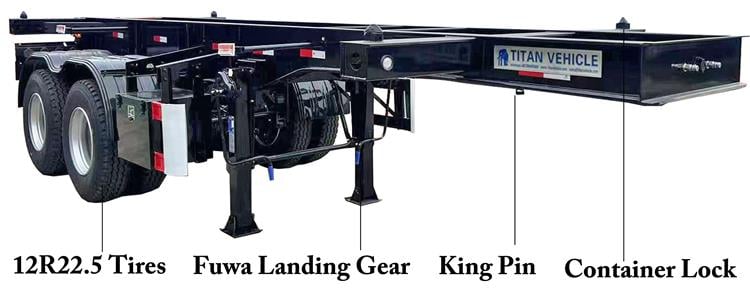

The axle system comprises two 13-ton/16-ton axles (FUWA/BPW) with a total axle load capacity of 26–32 tons, meeting regulatory weight limits while ensuring sufficient load-bearing redundancy. The container locking system includes four standard ISO rotary locks specifically designed for single 20-foot containers, offering precise positioning and reliable locking, reducing unnecessary lock weight. The suspension system utilizes heavy-duty mechanical leaf spring suspension or air suspension.

Leaf spring suspension is economical and durable, suitable for heavy-duty and harsh road conditions. The 2 axle 20' chassis trailer is suitable for tank containers or fragile goods. The braking system features air brakes + dual-circuit WABCO ABS/EBS to ensure stability of the short chassis during heavy-duty emergency braking, preventing skidding and slippage. The outriggers and saddle feature 28-ton linkage single-action outriggers / 2" or 3.5" towing pins for convenient and quick loading and unloading operations, improving trailer-swapping efficiency.
