2 Line 4 Axle 120 Ton Folding Gooseneck

120 Ton Folding Gooseneck Trailer for Sale:

For tracked excavators and other types of self propelled construction machinery, this folding gooseneck design improves the approach angle, eases the process of climbing onto the trailer, and enhances maneuverability during loading and unloading.

The 120 ton folding gooseneck trailer featuring a 2 line 4 axle configuration, utilizes a multi axle load bearing structure. Its 120 ton load rating provides greater transport capacity, reducing the need to disassemble equipment or make multiple trips due to insufficient load capacity.

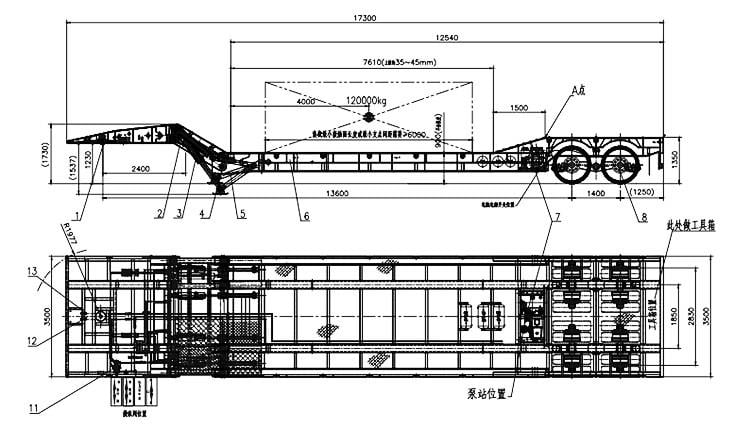

Specification of folding gooseneck trailer:

Dimension: 17300mm*3500mm*1730mm

Loading capacity(T): 120 ton

Goose neck: Folding gooseneck

Axle: 2 line 4 axle

Tire: 16 units

Suspension: Mechanical suspension

Kingpin: JOST brand 2.0 or 3.5 inch

Valve: WABCO valve

Light: LED light

Advantages of folding gooseneck trailer:

The 2 line 4 axle 120 ton folding gooseneck trailer for sale is designed for applications such as the transport of large scale construction machinery and mining equipment, road and bridge construction, port logistics, and major infrastructure projects. For companies that need to relocate heavy machinery between various job sites, an appropriate heavy duty folding gooseneck trailer simplifies the logistics of equipment transport and enhances overall transport efficiency.

The 2 line 4 axle configuration distributes the cargo weight across multiple axle sets, ensuring an optimal load distribution on the tires and improving stability during the transport of heavy equipment. For a 2 line 4 axle 120 ton folding gooseneck trailer for sale, the chassis is typically constructed using high strength steel with a reinforced primary load bearing structure, enabling it to withstand both the concentrated loads of heavy machinery and the dynamic impacts encountered during transit.

A well engineered system of cross-members, longitudinal beams, suspension, and axles ensures the 2 line 4 axle 120 ton folding gooseneck trailer for sale maintains its structural integrity under heavy loads, minimizing the risk of excessive localized stress.

The low bed design lowers the loading height of large equipment, which helps manage the overall height of the transport vehicle. For tall machinery, such as large excavators, mining equipment, and other construction plant, a lower loading platform provides greater vertical clearance, reducing constraints when passing under bridges, through tunnels, or beneath overhead lines and other height-restricted areas.
