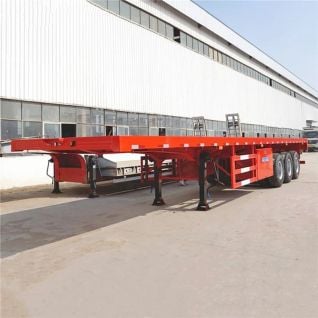

3 Axle 40 Foot Flatbed Trailer

Flatbed semi trailer for sale:

3 axle 40 foot flatbed semi trailer is the most popular model, it can transport 1×40ft or 2×20ft container.

As a professional flatbed trailer manufacturers, TITAN flatbed semi trailer for sale can be customized according to customer requirements.

3 Axle 40 Foot Flatbed Semi Trailer for Sale Manufacturers

3 Axle 40 Foot Flatbed Semi Trailer for Sale Manufacturers

Specification of 3 axle flatbed trailers for sale:

Model: 3 axle flatbed semi trailer

Dimension(mm): 12500x2500x1550mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 12 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

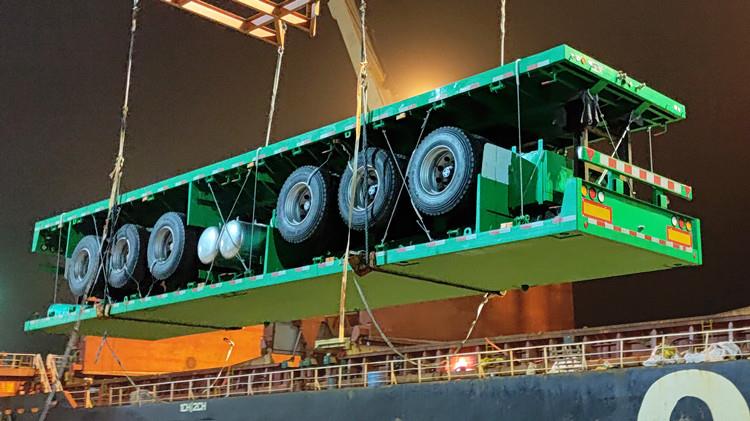

Package of 40 foot flatbed trailer for sale:

When transporting 40 foot flatbed semi trailer for sale, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.

All 3 axle flatbed trailers for sale will undergo rigorous testing before delivery to ensure the quality. As a flatbed semi trailer manufacturers, we have professional technicians to operate. In addition, a layer of wax will be sprayed on the 3 axle flatbed semi trailer to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.

How to choose a right flatbed semi trailer?

Here are some points to pay attention to when purchasing a flatbed semi trailer for sale.

1. Transport: We generally use flatbed trailer for sale near me to transport containers or other cargo. We need to determine whether flatbed trailer price can do your job. You can tell us the goods you need to transport. We will provide you with professional advice.

2. Long-term use: Some customers tell us in the communication that the work may only last for a while, then we will relatively recommend the use of some cost-effective configuration, if some need to be used for a long time, we will relatively recommend some better quality configuration, to ensure that the flat bed trailer price life longer.

3. Roads: How are the roads in your country? For many inexperienced people who may not know, if the country’s road conditions are not good, we need to make adjustments to ensure that the flatbed trailer for sale near me can work better.

4. Local laws and regulations: Whether the local country has a weight limit, if the country has a weight limit, we can consider using some flatbed trailer for sale with smaller cargo or use aluminum alloy material.

Video of flatbed trailer 3 axle:

Through this video, you can see different types of flatbed trailers, As well as the process, testing, packaging and customer feedback, etc.

Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
