A semi truck flatbed trailer is a typical open deck equipment that has no roof nor sides. It is mainly used for transporting 20, 40, 45, 48 ft containers and heavy, oversized, wide goods such as machinery, building supplies or equipment.
A semi truck flatbed trailer is a typical open deck equipment that has no roof nor sides. It is mainly used for transporting 20, 40, 45, 48 ft containers and heavy, oversized, wide goods such as machinery, building supplies or equipment. The flatly shaped body makes it much easier to load and unload goods.
According to the length, we can also offer the 20ft, 40ft, 45ft, 53ft flatbed trailer for sale.
How Much Does a Flatbed Trailer Cost?

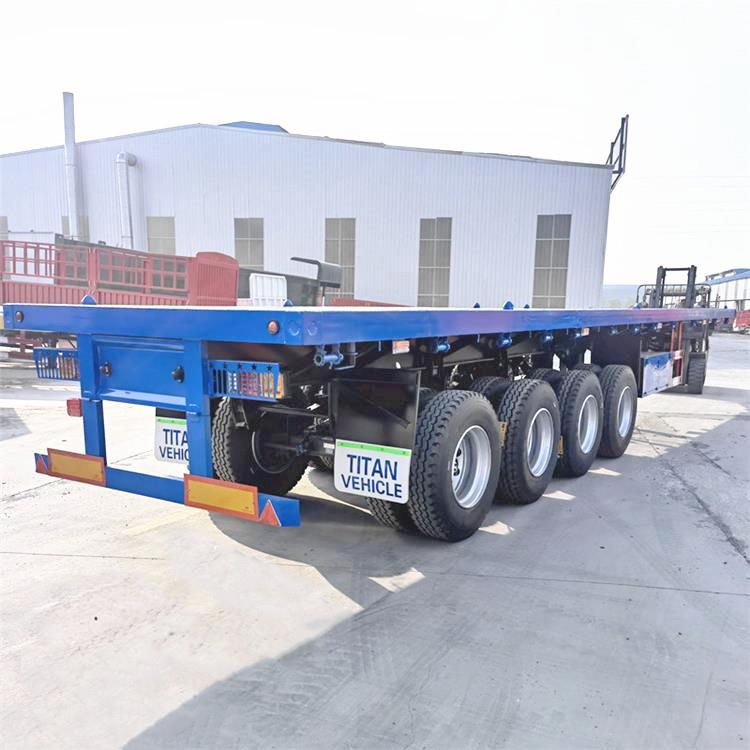

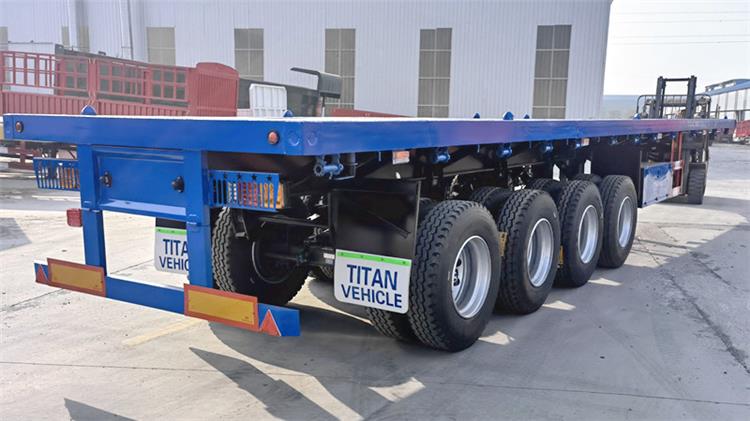

4 Axle 48 ft Semi Truck Flatbed Trailer for Sale

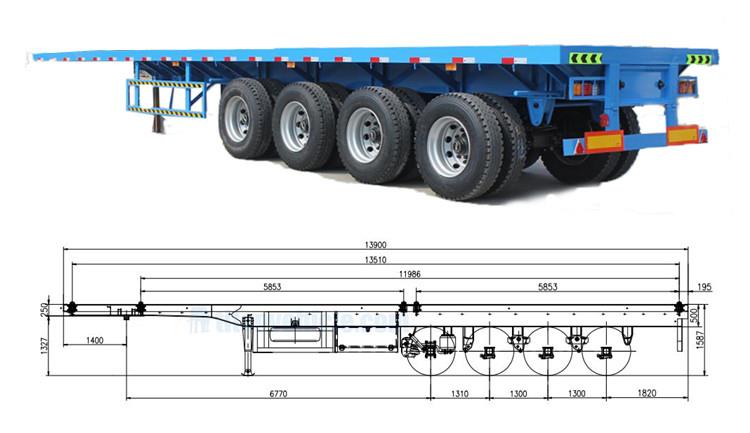

Dimension(mm): 13900x2500x1587mm
Transport: 20ft, 40ft, 45ft, 48ft container
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

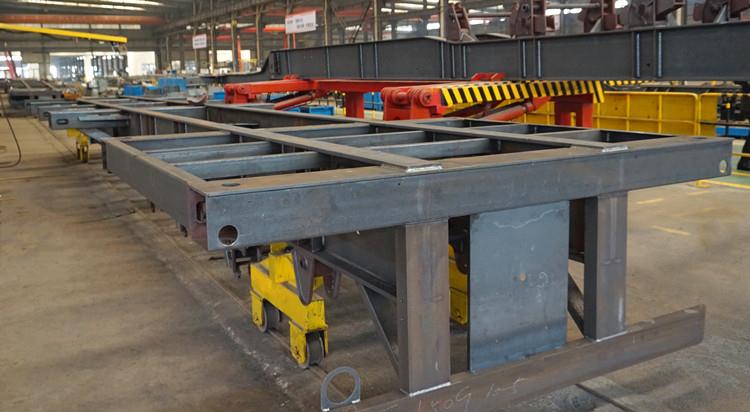

At this time, the 4 axle flatbed of the main beam is basically formed, only the side beams are welded to form the frame structure.
TITAN VEHICLE adopts automatic base plate welding machine. It can automatically track to weld the edges of base plate. Just move weldlng torch to the first corner of base plate, and press 'Auto Button on' ,the machine will track and weld all seams automatically without any operator.
The high welding seams will improve the service life of the 48 ft flatbed trailer for sale when loading the cargo on the bottom floor.

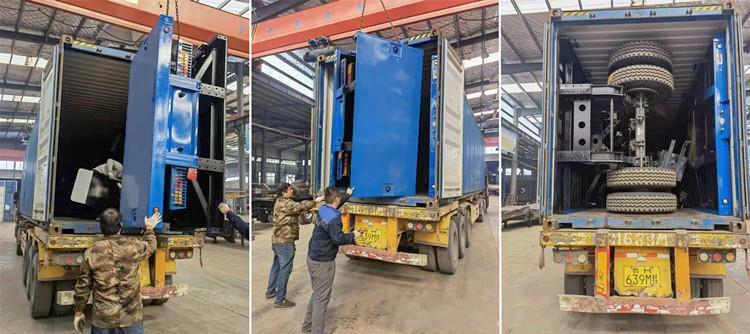

When transporting semi truck flatbed trailer, many customers use container transportation, some customers are bulk carriers or ro-ro ships. We will recommend suitable transportation methods to customers according to different situations.
All truck and flatbed trailer for sale will undergo rigorous testing before delivery to ensure the quality. We have professional technicians to operate. In addition, a layer of wax will be sprayed on the flatbed trailer cost to prevent seawater erosion, and then a layer of rain cloth will be wrapped to prevent moisture so that it is foolproof.
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
