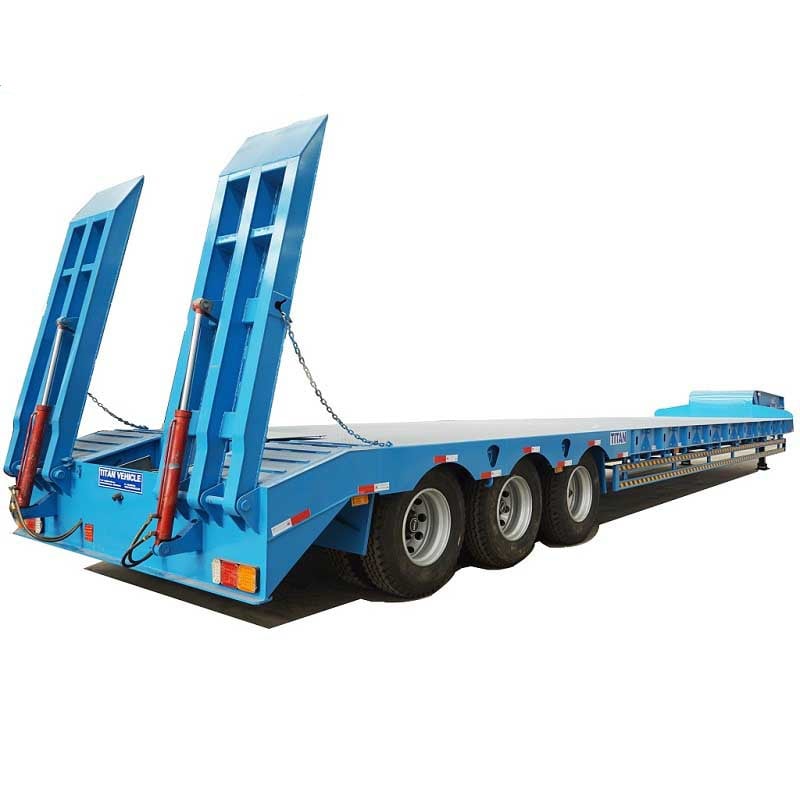

3 Axle 80 Tons Low Bed Truck Trailer

Product description:

We produce very durably Tri Axle 80 Tons Low Loaders Trailer for Sale with high strength to meet the transport needs. We use high strength steel material to ensure the capacity, the load can be up to 60 to 100 tons payload.

The loading ramps are made by high strength steel, with high loading capacity, the deformation will not happen to when carrying heavy equipment.

3 Axle 80 Tons Low Bed Truck and Trailer for Sale in Ghana Accra

3 Axle 80 Tons Low Bed Truck and Trailer for Sale in Ghana Accra

3 Axle 80 Tons Low Bed Truck and Trailer for Sale in Ghana Accra

Specification：

Overall dimension: 13000mm * 3000mm *3400mm

Loading capacity(T): 40-100T

Axle: 16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20

Tire: 11.00R20

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.

Bottom Platform: 5mm thick checkered plate

Ramp: Spring ramp

Gooseneck: Optional

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Advantage:

1. Main beam adopts HG60 high strength steel, with high loading capacity.

2. Side beam adopt “H” steel, the durable design avoid the side beam having the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service life, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.

3 Axle 80 Tons Lowbed truck trailer for sale details display video

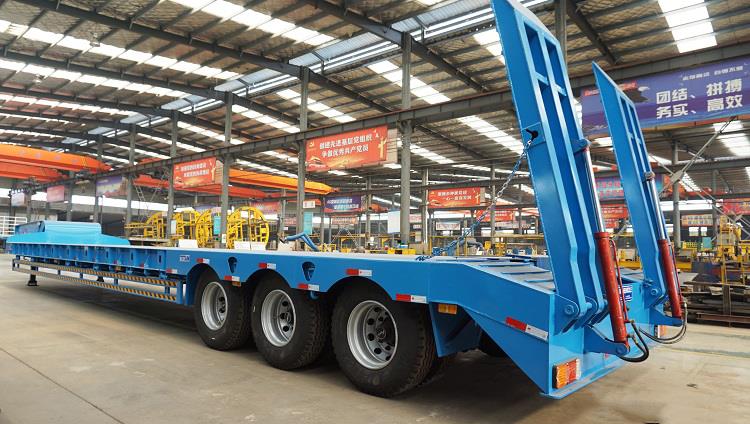

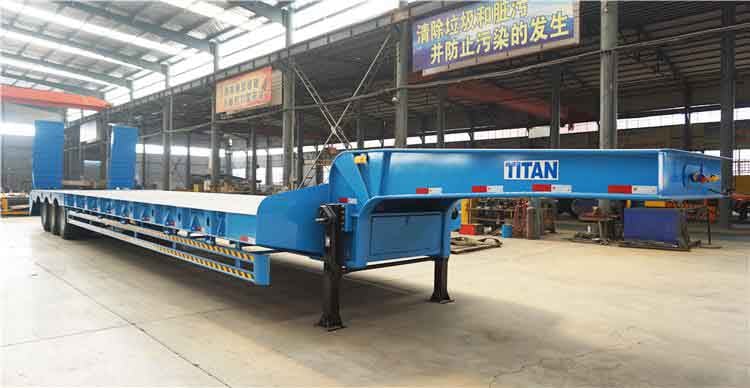

Lowbed trailer in production

Please click "TITAN Lowbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
