Different Parameters, Different Price. Price Reference Only.
Tri axle flatbed tractor trailer is the most popular model. TITAN can also offer the 20ft/45ft/48ft/53ft, 2/3/4 axles, the capacity from 60-100 tons.
TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.
At the same time , we also provide another type like extendable flatbed trailer, timber trailer for transport logs and flatbed trailer with sidewall.
Model: flatbed semi trailer
Dimension(mm): 12500x2500x1550mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
TITAN is a specialized heavy haul trailer manufacturer in China, with more than 15 years production experience and strong technical strength, TITAN semi trailers has successfully entered into over 50 countries around the world, such as Ethiopia, Malawi, Uganda, Mali,Zimbabwe, Zambia, Nigeria, Algeria, Sudan, Kenya, Djibouti, India, Pakistan, Argentina, Chile, Mexico, and so on.

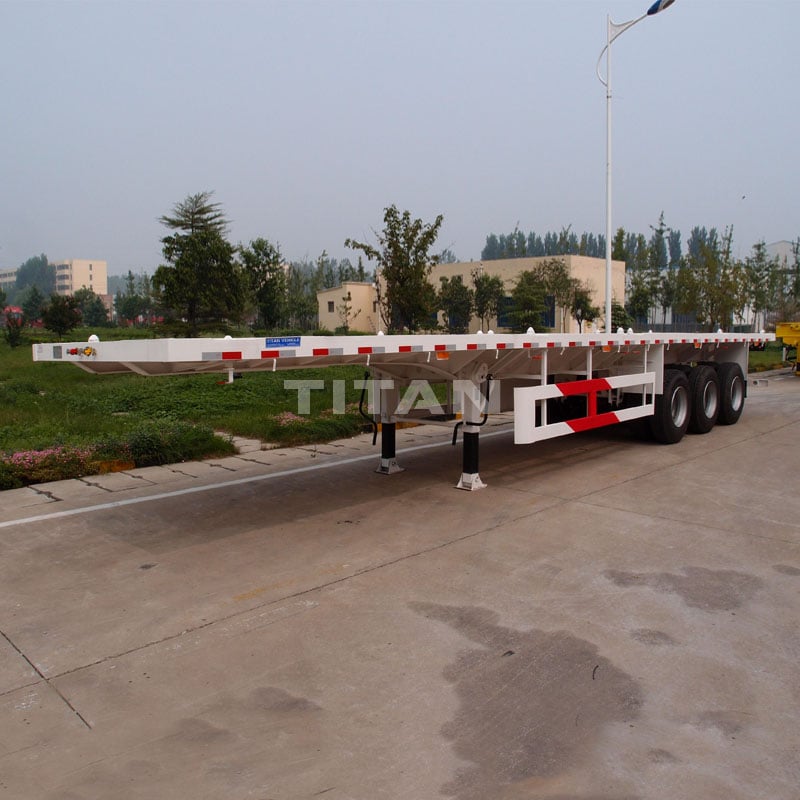

Titan produces the high quality 3 Axles 40ft Flatbed Trailer for carrying 40ft container, 20ft container and bulk cargo. the 40ft semi flatbed trailer can carry loads 40 ton machnies and cargos. The 3 axles 40ft flat bed truck trailer also called tri-axle flatbed trailer. Titan faltbed trailer are noted for their highly robust structure steel, we can provide difference configurations of our flat bed semi trailer to meet your transportation requirement.
Features - TITAN 3 Axles 40ft Flat bed Trailer
Highly robust structure steel with tensile and high load capacity, 40 ton loading capacity .
Heavy duty type mechanical spring suspsension for high loads requirements needs.
Length and width of lowbed avaiable custom made
Air suspension and bogie suspension is an option.
Main specification - TITAN 3 Axles 40ft Flatbed Trailer
Brand: TITAN 3 Axles 40ft Flatbed Trailer
Overall dimension: 12500mm X 2500mm X1550mm
Loading capacity: 40ton
Axle: 3 axles
Suspension: Heavy duty mechanical spring suspension
Tire: 12 units
Landing gear: JOST
Brake system: WABCO
King pin: 90#
Electical system: 24V, LED lights
Details of TITAN 3 Axles 40ft Flatbed Trailer
TITAN professinoal engineering team will be ready to provide you with a set of well-integrated solutions that meets your transportation needs and your local regulartions. TITAN engineering team can communicate with you online to fully understand your needs, the solutions include the product design, product material, product drawings, product videos.
All customers and friends are warmly welcomed to our company for visit and business negotiations, TITAN will as always do our best effort to produce the most durable TITAN 3 Axles 40ft Flatbed Trailer - www.titanvehicle.com to support you forever.
