4 Axle Container Skeletal Trailer
4 Axle Container Skeletal Trailer

4 Axle Container Skeletal Trailer

6700 USD

Different Parameters, Different Price. Price Reference Only.



The 4 Axle Container Skeletal Trailer is a semi trailer that can transport containers and non-dangerous goods tank containers.

SKU: 4 Axle Container Skeletal Trailer
GTIN: 6975766114121
MPN: TITAN9401065
Brand: TITAN

4 Axle Container Skeletal Trailer Product Description:

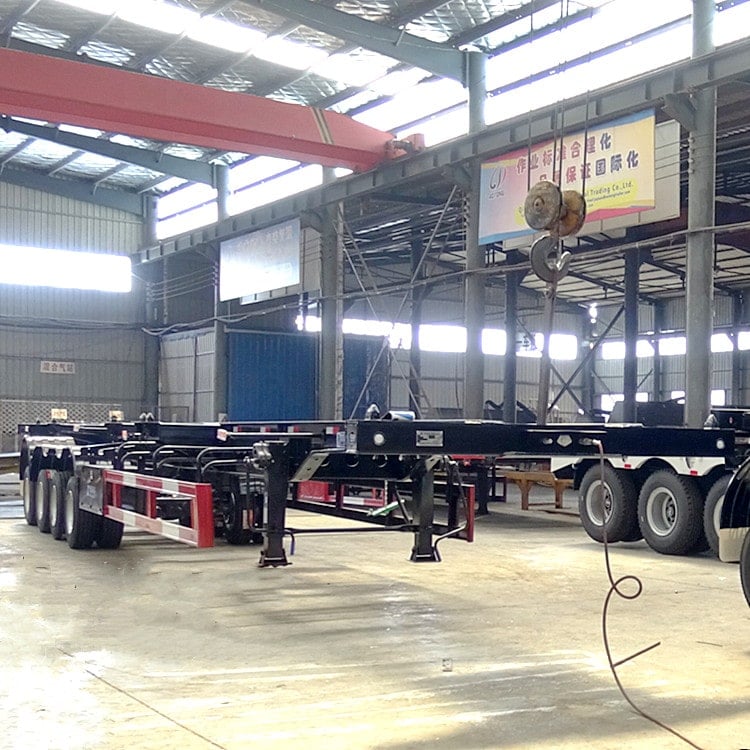

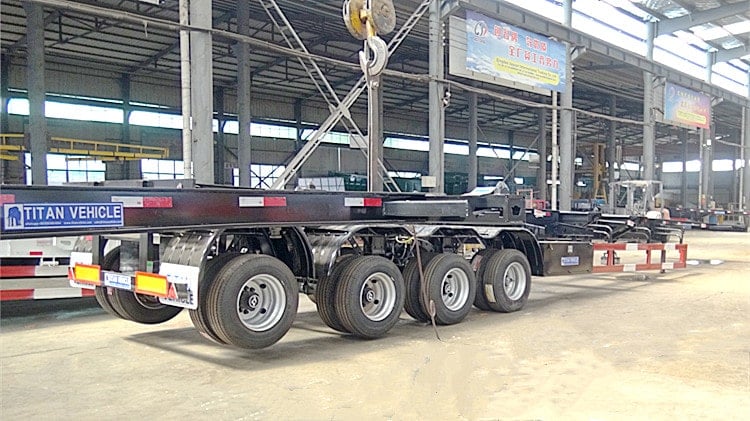

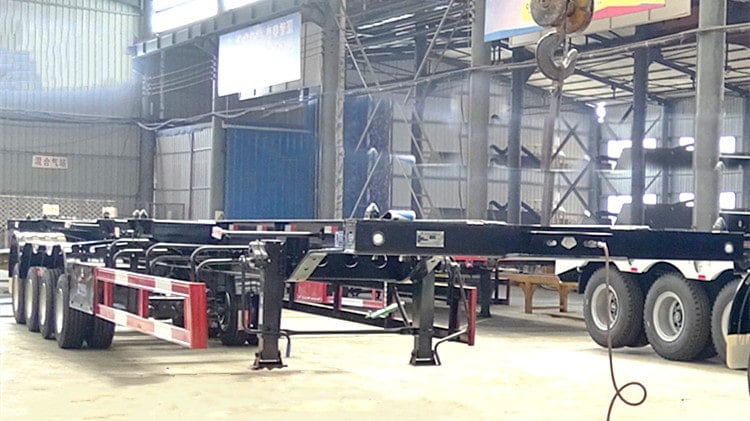

The 4 axle container skeletal trailer is a semi trailer that can transport containers and non-dangerous goods tank containers. The subjective structure of this vehicle is straight beam type or front neck small gooseneck type. It is mainly used in the logistics system of ships and multimodal transportation to support ports, routes, highways, transfer stations, bridges and tunnels. The container skeletal trailer has reasonable structure, high strength and beautiful appearance design.

4 Axle Container Skeletal Trailer for Sale in Jamaica

4 Axle Container Skeletal Trailer for Sale

4 Axle Container Skeletal Trailer for Sale in Jamaica

4 Axle Container Skeletal Trailer for Sale

4 axle skeletal trailer

4 Axle Container Skeleton Trailer Package

 Fudeng trailer, Fudeng container skeletal trailer

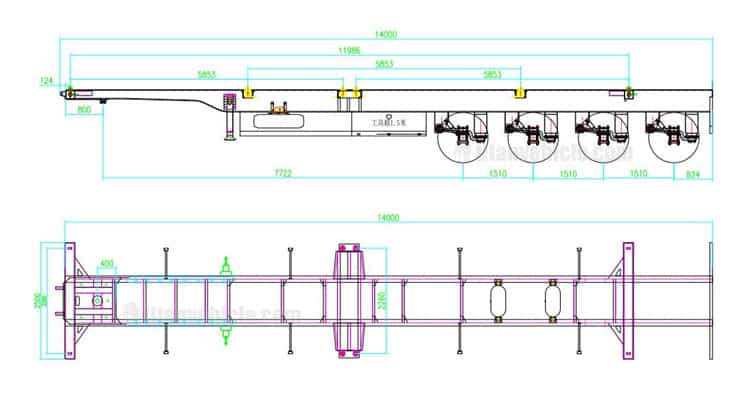

Specifications:

Dimension(mm): 14000*2500*1550mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

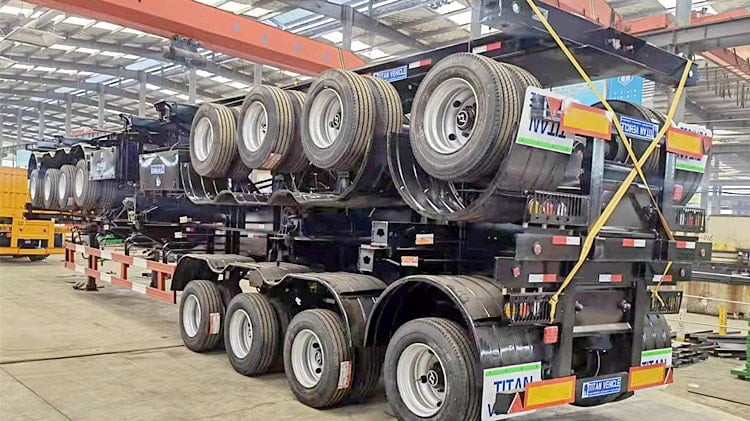

Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container

4 Axle Container Chassis Trailer

 Fudeng trailer, Fudeng container skeletal trailer

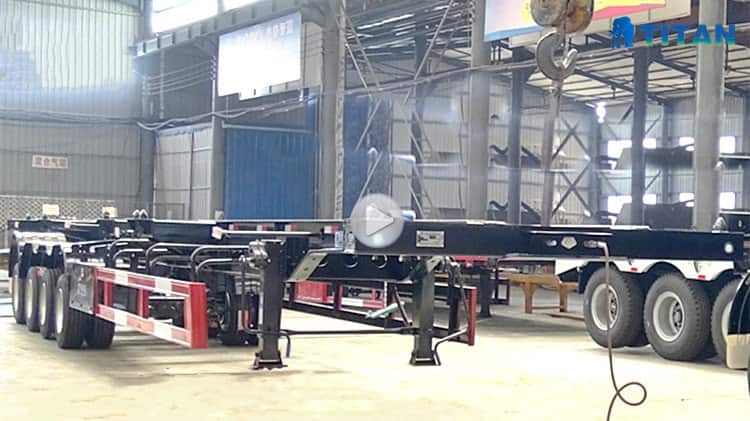

Through the video, you can know more details of container skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Container Skeleton Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

Fudeng trailer, Fudeng container skeletal trailer
