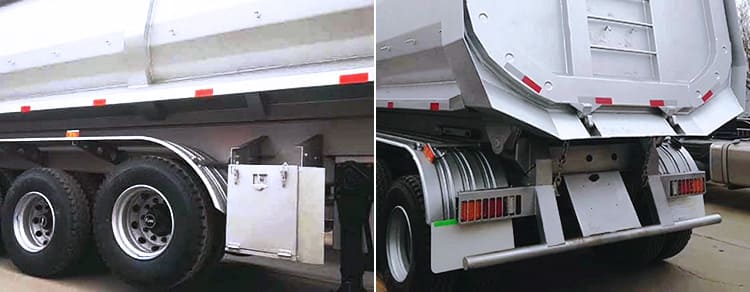

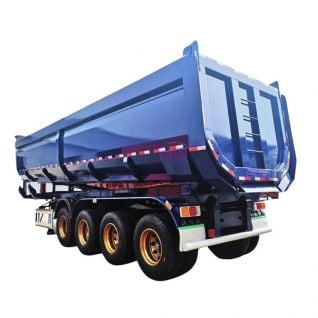

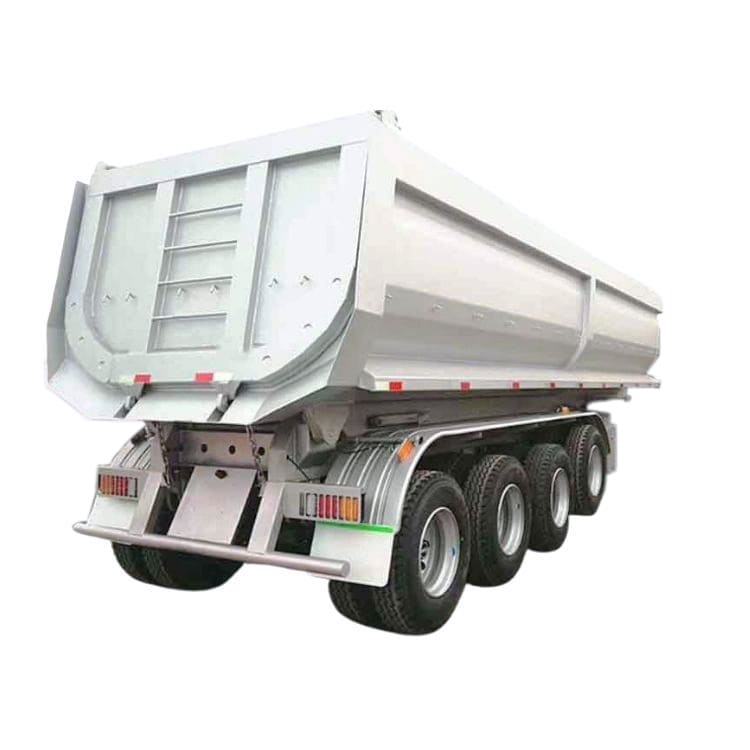

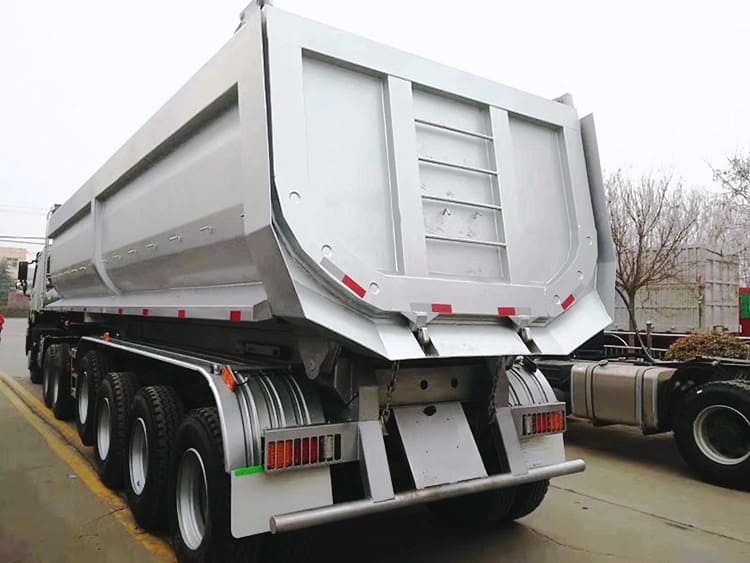

4 Axle 35CBM Rear Dump Truck Trailer

Product Description:

4 Axle 35CBM Rear Dump Truck Trailer can be used for public transportation, such as construction, renovation, utilities, agriculture and mining.

4 Axle 35CBM Rear Dump Truck Trailer is also eqquiped with the best hydraulic cylinder, it with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

Specification:

Dimension: 9300mmx2500mm x3700mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume: 35cbm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
