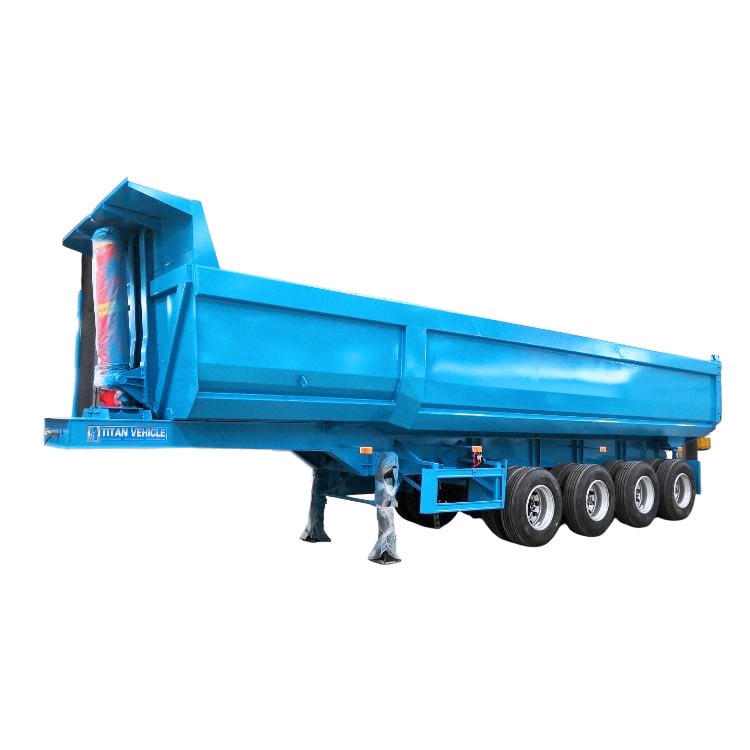

4 Axles 60 Ton Semi Dump Truck Trailer

Product Description：

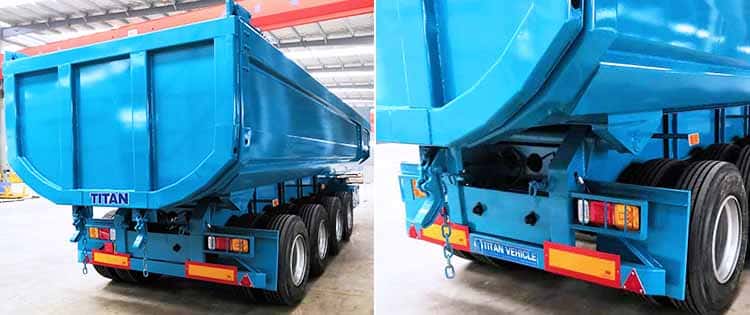

4 Axles 60 Ton Semi Dump Truck Trailer's cross balance beam: There is a balance beam at the front and rear of the main beam, which can better support the beam and is not easy to deform.

Titan 4 Axles 60 Ton Semi Dump Truck Trailer adopts polyurethane paint with high adhesion, high chromogenic, beautiful color, and the cost is twice that of ordinary paint. The paint will not come off after five years.

Specification:

Dimension: 11000mmx2500mm x4000mm

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Side wall thickness: 4mm

Total volume(m³): 60 ton

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (especially intended for oversea markets)

Voltage: 24V

Tool box: 1 set
