45 Cubic Dump Semi Trailer

Product Description：

TITAN 60 Ton Dumper Semi Trailer adopt high strength steel to make it durable when loading the sand or small stones or rocks. TITAN Tippers equipped with reliable hydraulic HYVA cylinder.

And the loading capacity is 40t, 60t, 80t. We have 2,3,4,5,6 Axles models for you to choose from.

We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers.

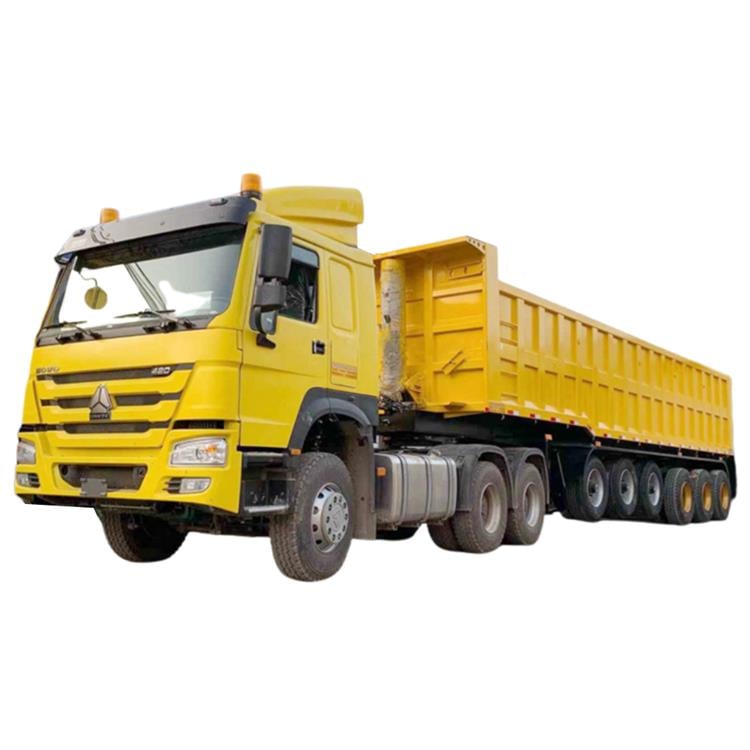

6 Axle 45 Cubic Dump Semi Trailer for Sale In Ghana

6 Axle 45 Cubic Dump Semi Trailer for Sale In Ghana

6 Axle 45 Cubic Dump Semi Trailer for Sale In Ghana

Specification：

Dimension: 11280mmx2495mm x3970mm ( inside dimension )

Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.

Tare Weight (semi trailer): About 15600kg

Total volume(m³): 30-40m³ or less than 100tons

Side wall thickness: 4 - 6mm

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

Advantage:

1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
