4 Axle Stake Livestock Trailer
4 Axle Stake Livestock Trailer

4 Axle Stake Livestock Trailer

10000 USD

Different Parameters, Different Price. Price Reference Only.



China 4 axle stake livestock trailer for sale mainly used for transportation of agricultural and sideline products and other bulk cargo.

SKU: 4 Axle Stake Livestock Trailer
GTIN: 06975766111809
MPN: TITAN9405015
Brand: TITAN

Product Description:

Livestock trailer is a common semi-trailer transport method, shipping stations, courier companies indispensable means of transport. 4 axle stake trailer for the delivery of simple goods, such as: vegetables, fruits, clothes, appliances, and other daily necessities. China stake semi trailers can also be used to transport sheep, cattle and other animals.

TITAN production the 4 axle fence semi trailer adopts high-quality material, important accessories and configuration all adopt domestic and aboard brands. Main beam adopts Q345 high strength steel, stability and safety when operating in harsh road conditions. This makes the product long service time, save maintenance costs and improve operating efficiency.

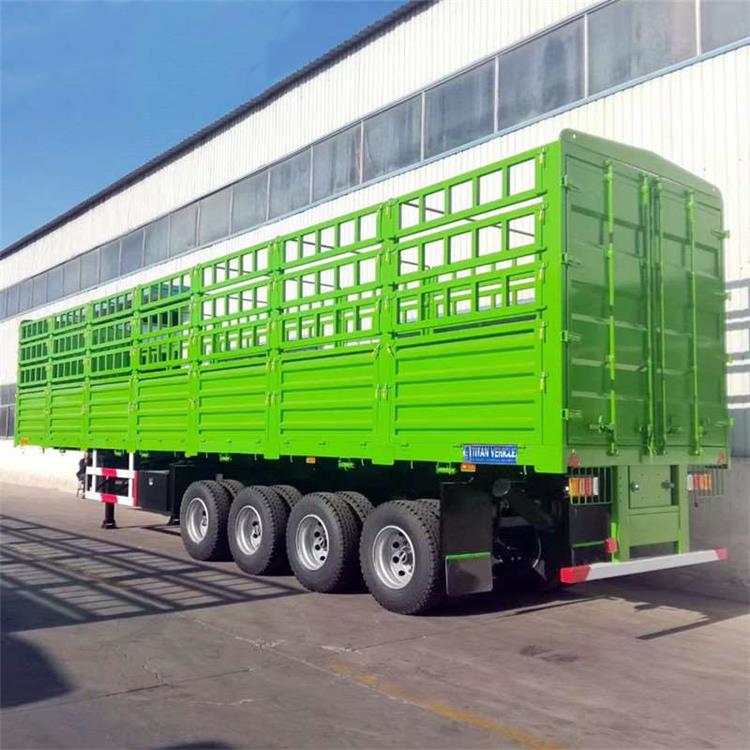

China Stake Semi Trailer for Sale - 4 Axle 60 Ton Fence Cargo Truck Trailer

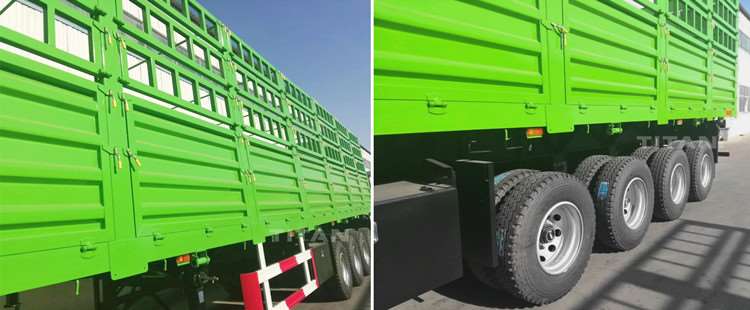

China Stake Semi Trailer for Sale - 4 Axle 60 Ton Fence Cargo Truck Trailer

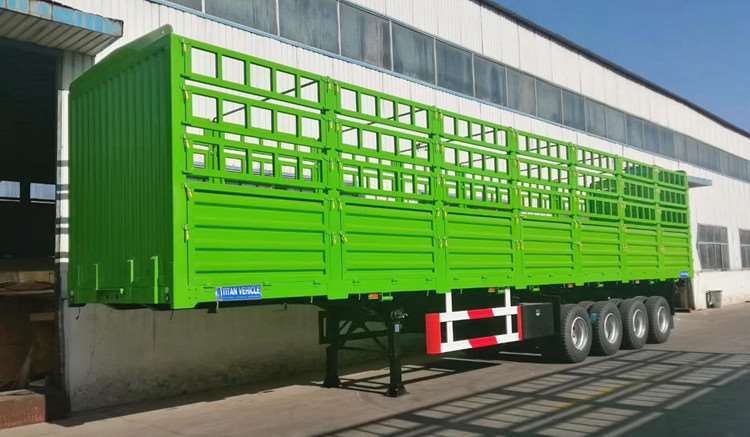

China Stake Semi Trailer for Sale - 4 Axle 60 Ton Fence Cargo Truck Trailer



Specification:

Dimension(mm): 13000x2600x3420mm

Trailer Sides: 1800mm

Loading capacity(ton): 60T-80T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical, Bogie, Airbag suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Bottom Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Through this video, you can learn about different types of fence semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Fence Trailer" to get detailed video!



Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
