40ft skeleton trailer for sale is designed for maritime container and sea freight transport tasks and combine both safe and rapid container handling.
TITAN skeleton container trailer possesses a long service life even under the tough conditions which a 40ft skeleton semi trailer has to face on a daily basis.

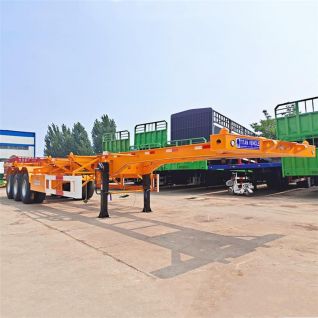

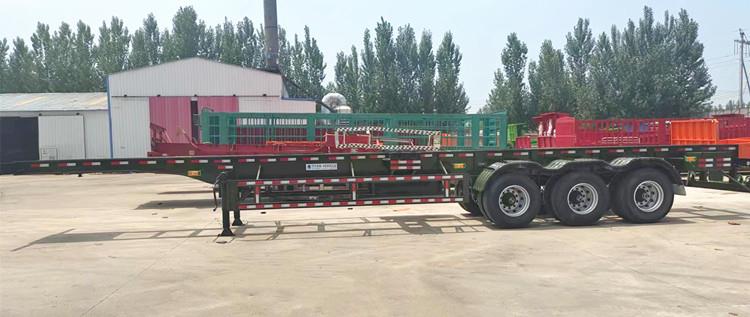

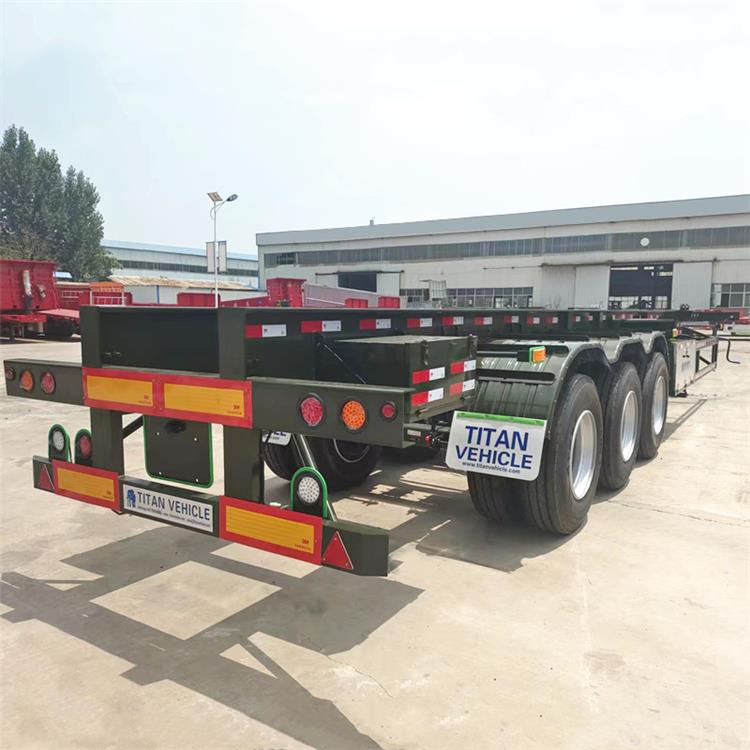

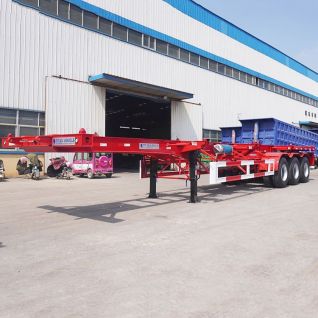

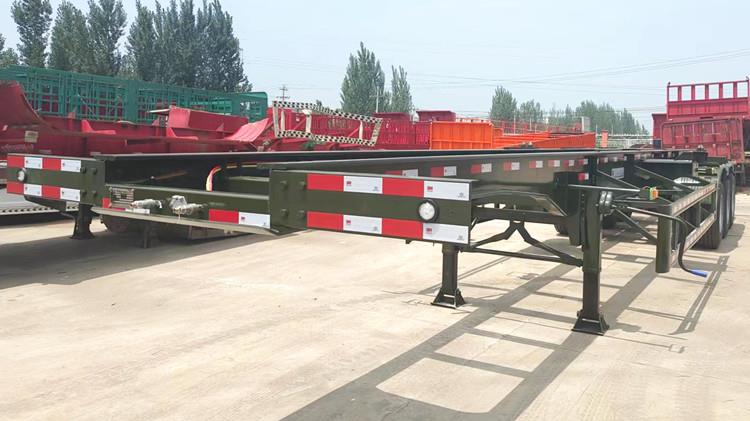

3 Axle 40ft Skeleton Container Semi Trailer for Sale
3 Axle 40ft Skeleton Container Semi Trailer for Sale
Details of 3 Axle 40ft Skeleton Container Semi Trailer for Sale

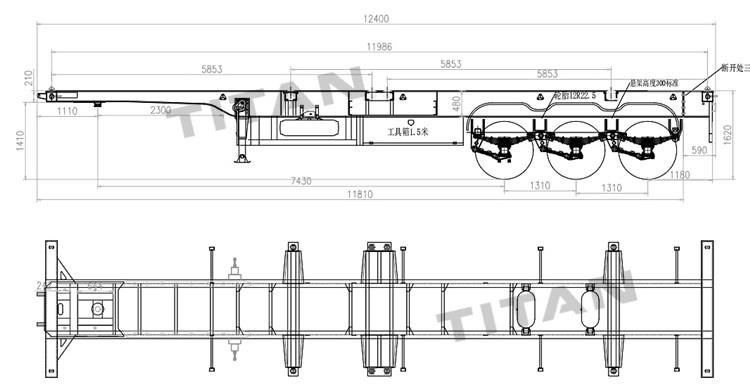

Dimension(mm): 12400x2500x1620mm
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 12 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

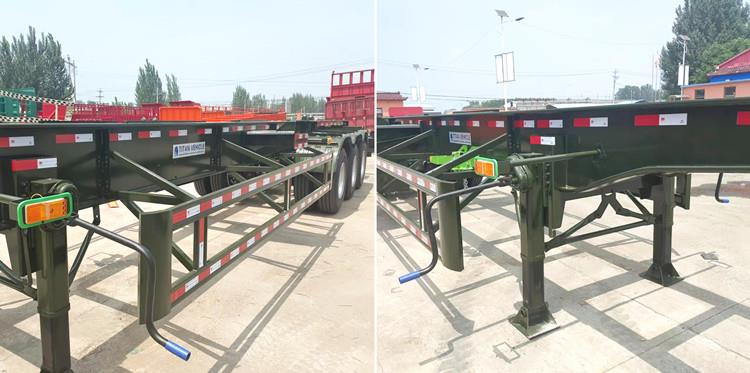

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional

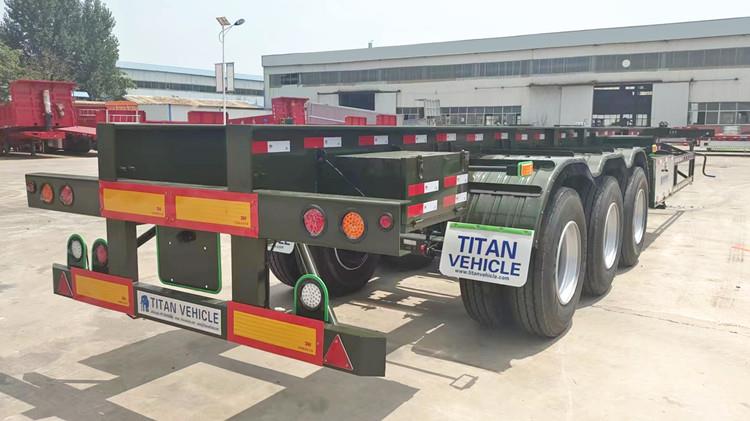

Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
1. Frame
TITAN 40ft skeleton trailer for sale main beam made of Q345 high strength steel has higher bearing capacity and service life of more than 10 years, TITAN 40 ft skeleton trailer for sale uses automatic arc-submerging welding method to weld the main beam, there isn’t interface between the steel plate,it can ensure the integrated main beam, so the 40 ft skeleton trailer for sale main beam is more stronger and more durable.
2. Design
It is a rugged structure designed to provide you with the services you need without having to do a lot of manufacturing work through high-quality welding techniques that have been tried and tested to ensure that the 40ft skeleton semi trailer meets high quality standards.
TITAN skeleton container trailer uses polyurethane paint, high adhesion, high chroma, beautiful color.

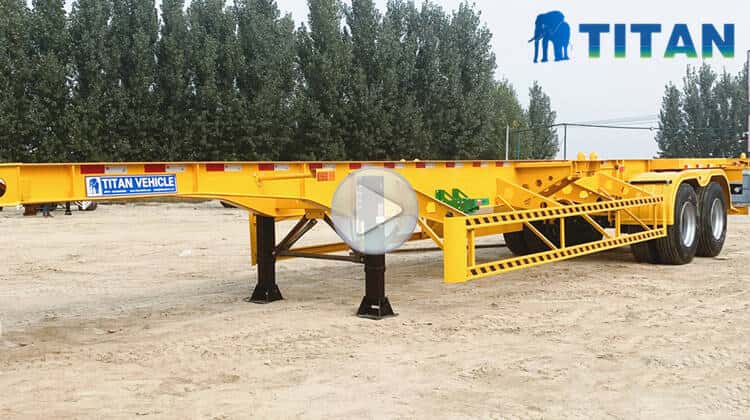

Through the video, you can know different types of skeleton trailers, as well as the process, testing, packaging and customer feedback, etc.
Please click "TITAN Container Skeleton Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
