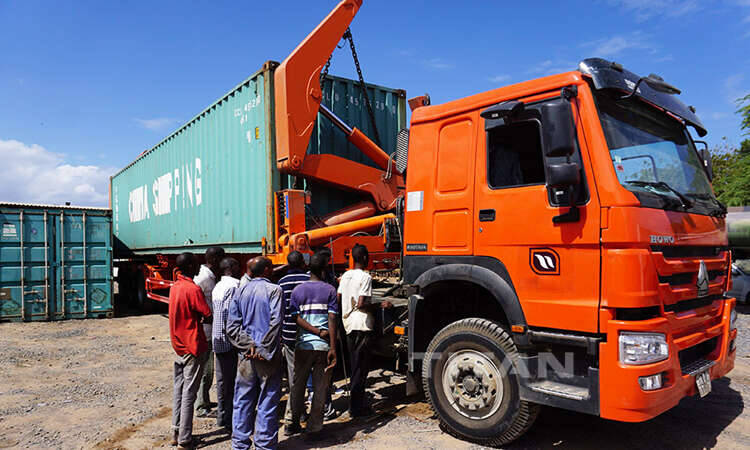

The 40T Side Lifter Trailer can transport 20/40ft container. Its technology can effectively solve the problem of no loading and unloading machinery.
TITAN 40T Side Lifter Trailer is used for loading and unloading 40ft container or 20ft container.TITAN 40T Side Lifter Trailer has made work flexible, Saves time and improves productivity for satisfied customers around the world. We adopt World famous brand parts of the side lifter cranes.
The 40T Side Lifter Trailer technology can effectively solve the problem of no loading and unloading machinery. The military of many countries has been equipped with container loading trailers.
40T Side Lifter Trailer for Sale Price Near Me
40T Side Lifter Trailer for Sale In Burundi Gitega
40 Ton Side Lifter Trailer for Sale Price
1. Timesaving and improve efficiency: TITAN 40T Side Lifter Trailer can be productive all day, enabling loading, unloading and transporting containers by itself easily.
2. Flexible solutions: With the TITAN 40T Side Lifter Trailer, you get closer and can lift between trailers safely and with high precision.
3. Famous WABCO braking valve, JOST landing gear for the main chassis container skeleton trailer
4. Famous NBB Germany Remote Control, easy to operate
5. TITAN 40T Side Lifter Trailer adpots wireless remote control technology, loading container just takes 10 mins.
1. Detailed operating instructions also, we have the Video Explanation
2. Overseas engineer to provide technical service
3. You can reach us at any time and get a rapid response
4. Competent technical service,
5. Rapid and safe deliveries of spare parts
Max. lifting capacity: 37/40/45Ton
Max.stabilizer outreach: 3200mm
Max.working range: 4000mm
Overall height: 2500mm
Overall length: 1020mm
Max. the pressure of hydraulic system: 28Mpa
Dimension(L*W*H): 14100*2500*4200mm/7500*2500*4200mm
Axle: 3/2axle* 13 ton (220mm brake pads)
Tire: 12/8pcs, 12R22.5
Suspension: Heavy duty type mechanical spring suspension
Kingpin: 3.5 inches bolted type
Braking system: WABCO Emergency valve
Landing gear: JOST
Tow Chain: lugs (imported)
Power source: Power take-off (equipped)
Hydraulic pump: Gear type Casappa Italy
Direction control valves: AMCA Holand
Remote Control: NBB Germany
