Different Parameters, Different Price. Price Reference Only.

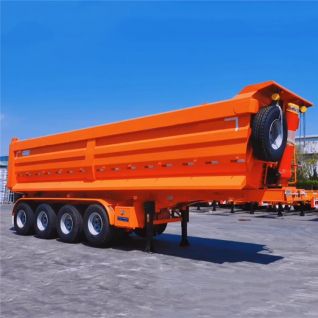

Tipper trailer is very efficient at transporting and unloading coals and other loose materials in bulk, 40T Tipper Trailer Manufacturers can design the tipper trailer according to customer requirements.
Tipper trailer is very efficient at transporting and unloading coals. Limestone, sand, and other loose materials in bulk. 40T Tipper Trailer Manufacturers can design the tipper trailer according to customer specific requirements.
Hydraulic 40T Tipper Trailer for Sale cylinders is available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.
China 2 Axle 40T Tipper Trailer Manufacturers
Dimension: 8500mmx2500mm x3950mm ( inside dimension )
Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.
Bottom Platform: 4 thick checkered plate
Sidewall thickness: 4mm
Total volume(m³): 25m³
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 9.00-20
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
