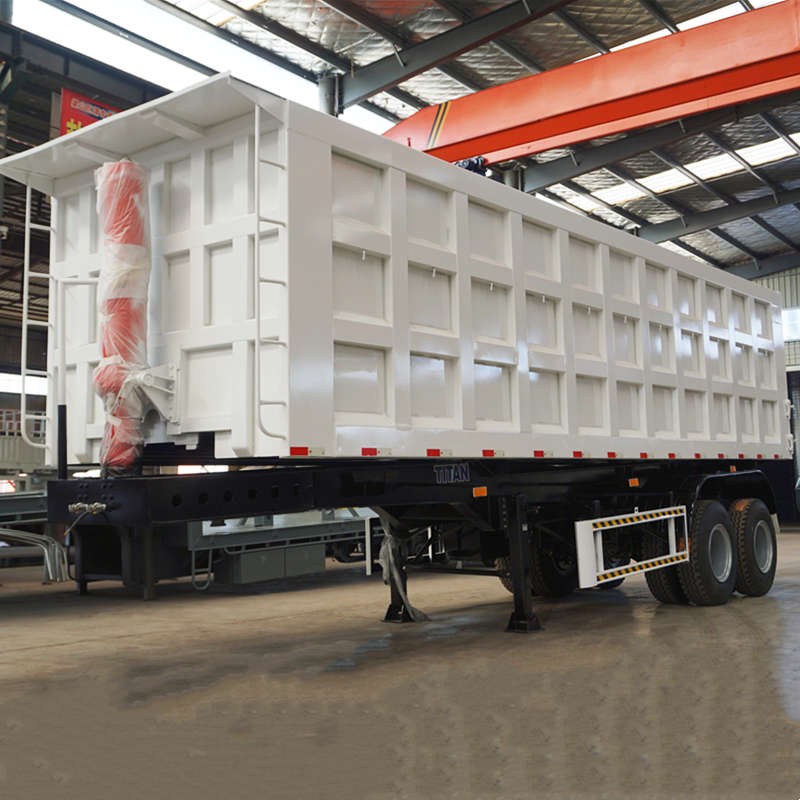

New Tipper Trailers for Sale

Product description:

New Tipper Trailers for Sale is very efficient at transporting and unloading coals. Limestone, sand, and other loose materials in bulk.  New Tipper Trailers for Sale can be custom designed according to customer specific requirements.

Hydraulic New Tipper Trailers for Sale cylinders is available to allow the trailer to carry more loads. Customers also can choose either left - or right -or side dumping configuration.

Price of New Tipper Trailers for Sale in Guinea

Tipper trailers for sale Specifications:

Dimension: 8500mmx2500mm x3950mm ( inside dimension )

Main beam: Height: 480mm, Upper plate: 14mm, Middle plate: 8mm, Lower plate: 14mm, Material: T700 steel.

Bottom Platform: 4 thick checkered plate

Sidewall thickness: 4mm

Total volume(m³): 25m³

End plate: 8mm

Lifting System: Full set of HYVA lifting cylinder

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 9.00-20

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension

Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Landing gear: JOST brand

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

2 Axle End dump Trailer details display video

Please click " TITAN Tipper Semi Trailer" to get detailed videos!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
