60T Detachable Gooseneck Trailer

60T Detachable Gooseneck Trailer Product Description:

60T Detachable gooseneck trailers offer a smooth behind the wheel experience when hauling intense loads. Since these trailers attach to the rear axle area of towing vehicles, this configuration promotes better weight distribution during transit. Gooseneck trailers give you the opportunity to make narrow turns, stay balanced when driving on uneven terrains and carry heavier loads.

A 60T detachable gooseneck trailer, on the other hand, is often owned by a trailering veteran. A gooseneck can easily be confused with a fifth-wheel trailer because the two hitch types are quite similar. The difference is a gooseneck trailer slides over a ball hitch in the bed of a pickup truck, while a fifth wheel trailer attaches to a pickup truck using a hinged plate hitch; the same type of hitch is used by semi trucks.

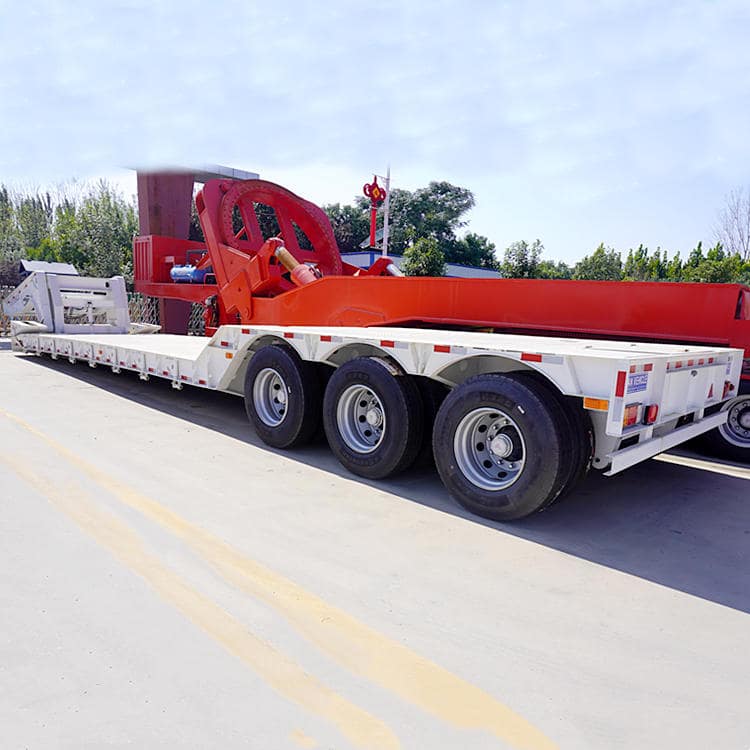

3 Axle 60T Detachable Gooseneck Trailer for Sale

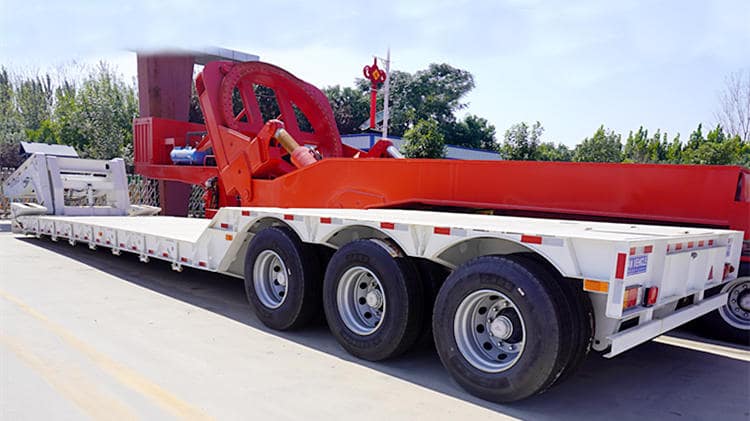

3 Axle 60T Detachable Gooseneck Trailer for Sale

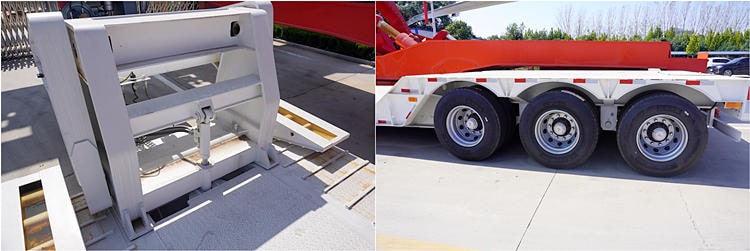

3 Axle 60T Detachable Gooseneck Trailer for Sale

Fudeng trailer, Fudeng detachable gooseneck trailer

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

Fudeng trailer, Fudeng detachable gooseneck trailer

Through this video, you can learn about different types of detachable gooseneck trailers, as well as the process, testing, packaging and customer feedback, etc.3 Axle Detachable Goose Neck Trailer, Fudeng trailer, Fudeng detachable gooseneck trailer

Please click " TITAN Lowboy Trailer" to get the detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
