Different Parameters, Different Price. Price Reference Only.

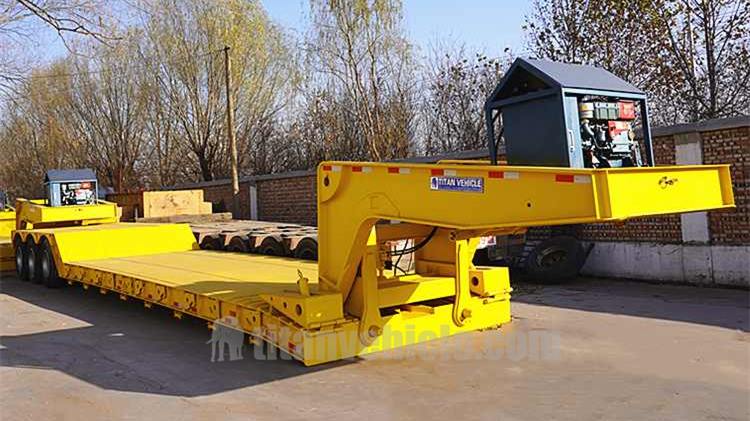

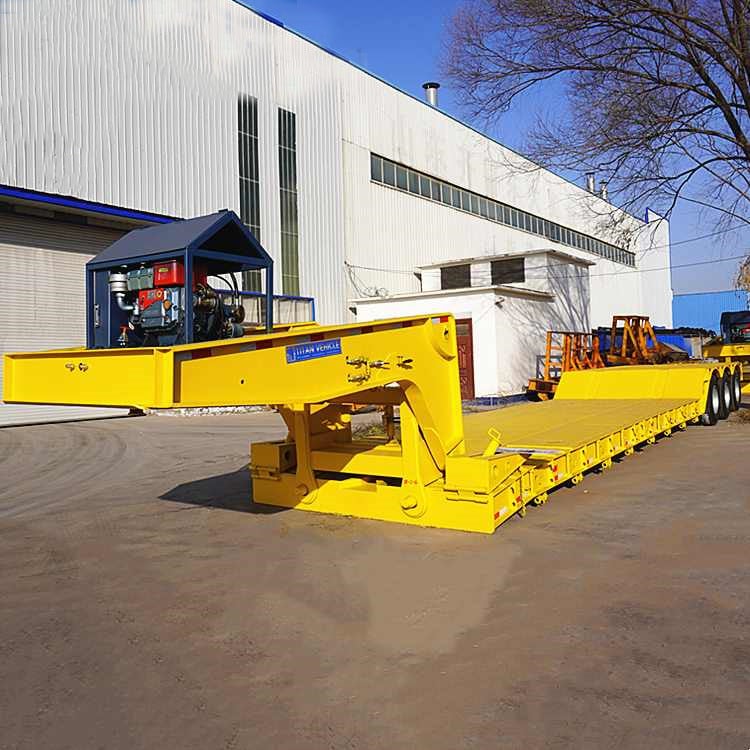

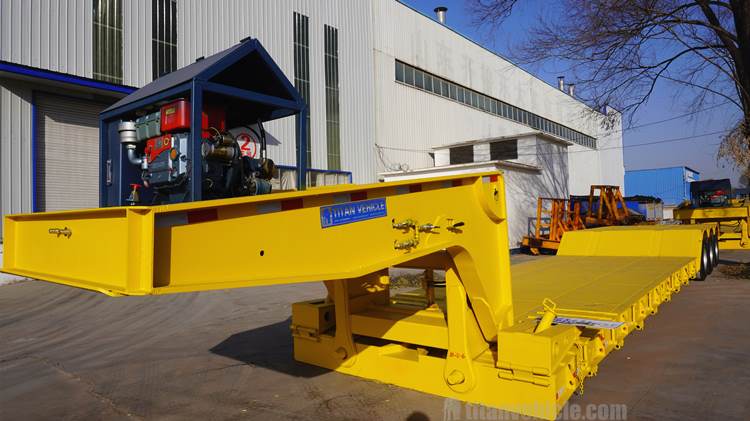

Tri Axle Small Lowboy Trailer mainly used to transport heavy loads and equipment, every type of small lowboy trailers are available in TITAN manufacturer.
The small lowboy trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a monocoque trailer. It generally has the following structure. The frame and the wheel axles and axles are mostly collinear, that is, there are two left and right axles on one axis, which is also called a two axis row. Common monocoque trailers have 2 to 7 axes. One wheel axle is equipped with 4 tires, and one axis has 8 tires. Therefore, the width of the whole car can reach more than 3 meters. In order to reduce the center of gravity of the whole vehicle, a steel wire radial wide rim tire with a small diameter and a large load capacity (see car tires) is generally installed. Each tire can withstand a load of about 4 tons under low speed operating conditions. The frame adopts a high-strength alloy steel box section welded structure.
Dimension: 15800mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container
Through the video, you can know different types of 60ton small lowboy trailer , 3 axle lowboy trailer for sale , gooseneck lowboy trailers, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
