80ton Gooseneck Excavator Trailer for Sale
80ton Gooseneck Excavator Trailer for Sale

80ton Gooseneck Excavator Trailer for Sale

27000 USD

Different Parameters, Different Price. Price Reference Only.



Most of this type of gooseneck excavator trailer has large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.

SKU: 80ton Gooseneck Excavator Trailer for Sale
GTIN: 06975766110390
MPN: TITAN9409069
Brand: TITAN

80ton Gooseneck Excavator Trailer for Sale Product Description:

Titan gooseneck excavator trailer does not buckle and deform during cargo transportation. The side beams are designed with "H" shape and welded with HG 60 steel. The bearing capacity is twice that of other steels and will not be deformed after ten years of use. The anti-turbulence ability is increased by 3 times.

The side beam is designed with a "H" shape with a height of 300mm, a width of 140mm and a thickness of 8mm. The bearing capacity is twice that of other steels and will not be deformed after ten years of use. The anti-turbulence ability is increased by 3 times.

80ton Gooseneck Excavator Trailer for Sale in Nigeria

80ton Gooseneck Excavator Trailer for Sale in Nigeria

80ton Gooseneck Excavator Trailer for Sale in Nigeria



Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 13T/16T, FUWA / BPW / TITAN Brand

Rim: 8.0-20 or 900*22.5

Tire: 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

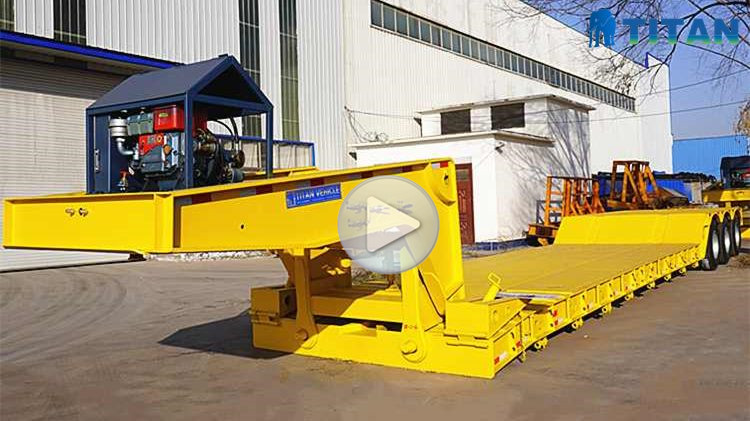

Through the video, you can know different types of gooseneck trailer , excavator trailer for sale , 80ton gooseneck excavator trailer for sale, etc.

gooseneck excavator trailer for sale video

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
