Different Parameters, Different Price. Price Reference Only.
The 6 Axles 62 Meters Trailer comes in a simple design that is easy to use and operate either hands-on or remotely. Loading and offloading cargo are made safe and simple for operators to manage the operations in an effortless manner.
The extendable beam feature is designed to allow for elongation to cater for different transportation needs. Due to the overall length of the extendable trailer needed in this section, tough and strong materials with a yield strength of at least 460 MPa is used. This makes sure that the beam doesn’t sag during operations. At this section, the trailer can be adjusted to the desired length to take up the task at hand.

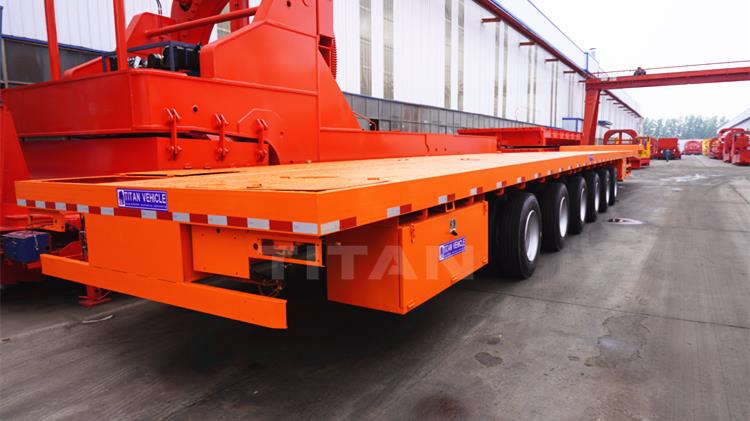

The tail platform forms the rear section of the 6 axle 62 meters trailer. It can either be a folding or pulling platform configuration. Therefore, users can choose a telescopic trailer based on these tail platform configurations.

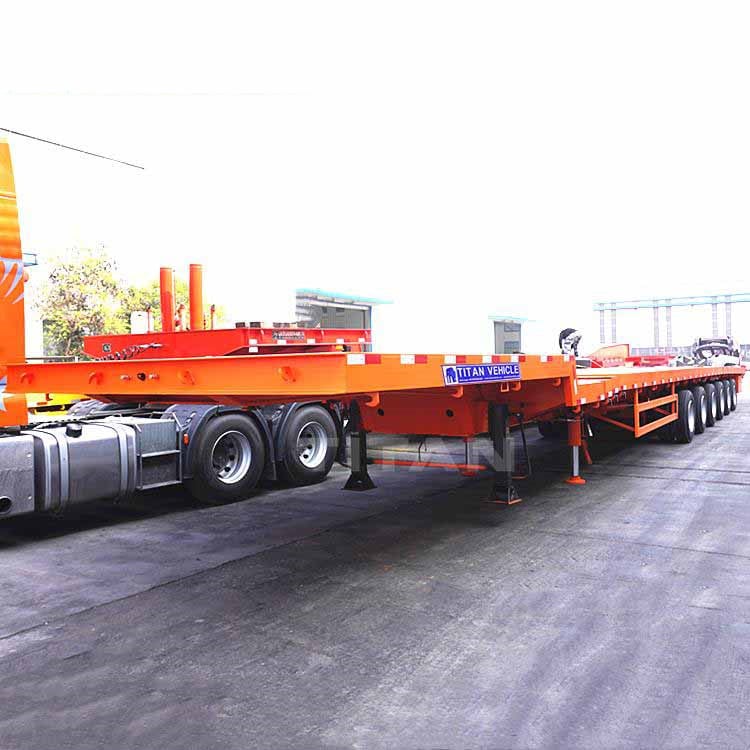

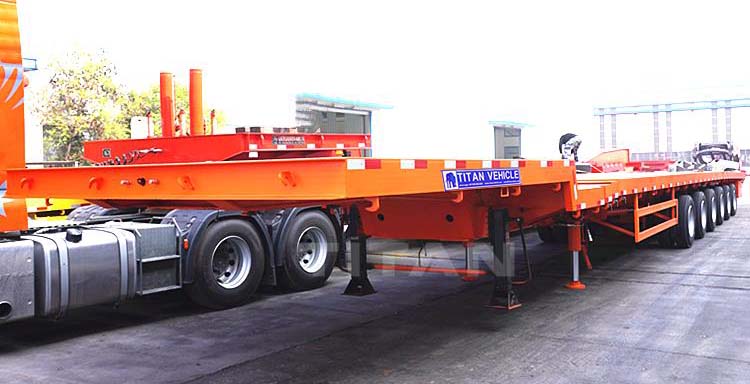

6 Axle 62 Meters Trailer for Sale
6 Axle Extendable Trailer for Windmill Projects
6 Axles 62 Meters Trailer
Brand: TITAN 62m Extendable Trailer for Windmill Blade Transport

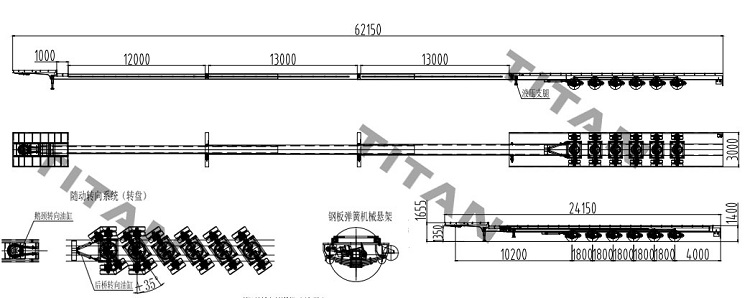

Closed length: 24150mmX3000mmX1650mm
Total length: 62,000mm after extension
Transport: 80m windmill blade
Loading capacity: 90 Ton
Platform thickness: 3 mm
Hydraulic power station: Diesel engine
Axle: 6 axle
Suspension: Hydraulic suspension
Tire: 24 units
Braking system: WABCO emergency valve
Kingpin: 3.5 inch
Landing gear: JOST C200
1. The general extendable transporter of wind turbine blades is a bit similar to the lowbed transporter, but its girder adopts a buckle box type design, and the girder is pulled to adjust the length of the vehicle to adapt to the transportation of wind blades of different lengths.
2. The extendable flatbed semi trailer has flat, concave beam, tire leaking and pull-out structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.
3. The vehicle body is made of high-quality steel, and the main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying various construction machinery, large equipment and steel. It adopts three-axis balance type, two-axis balance type or rigid suspension, with a mass balance block installed between the front and rear leaf springs, which can make the front and rear leaf springs change in equal amounts and balance the forces on the front and rear axles.
Through this video, you can learn more details about 62m windmill blade transport , 6 axle windmill blade transport trailer , windmill blade trailer for sale, etc.
If you want to know more types of wind blade trailers, please click here "Wind Blade Trailer" to watch the video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
