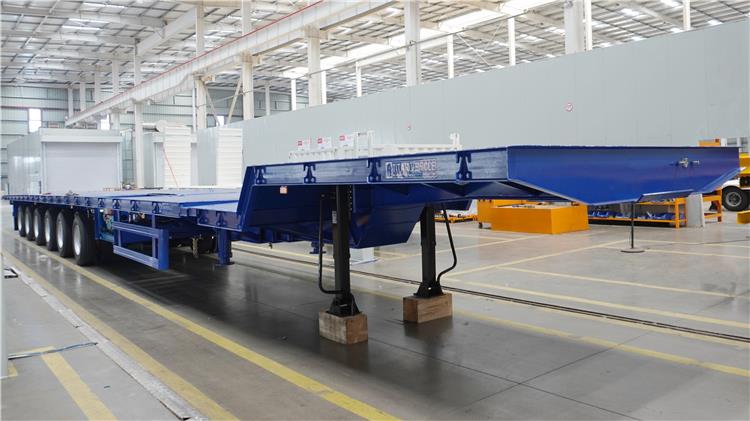

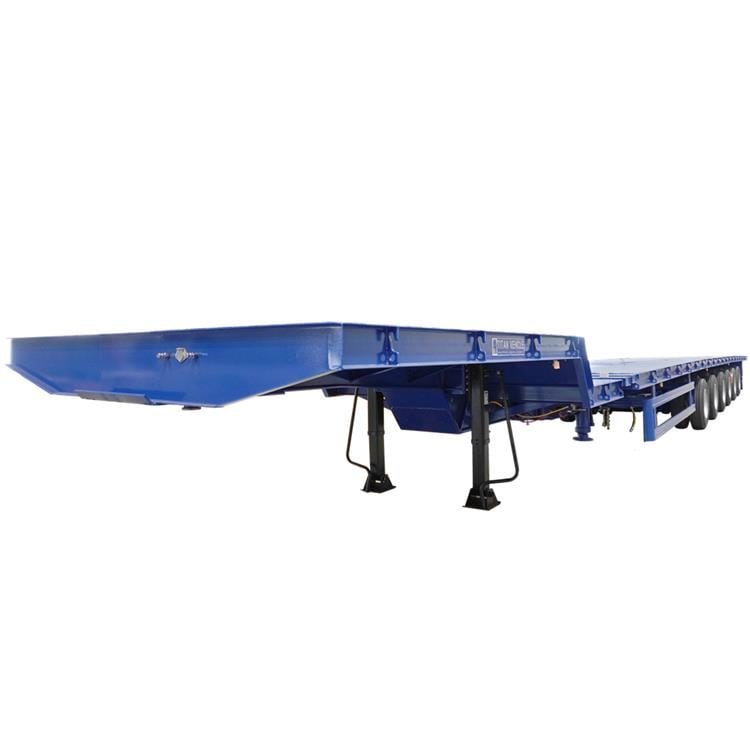

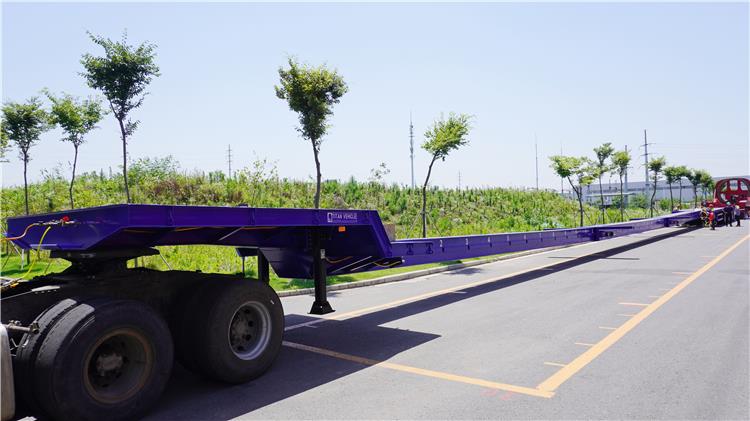

62M wind blade trailer and telescopic trailer for sale from China TITAN are widely used for long cargo transport, especially for windmill parts logistics, such as wind blade, wind tower section, and turbine. The stretchable telescopic beam could be 2 or 3 parts. The total length can reach up to 62 meters.
62m Wind Blade Trailer | Windmill Blade Trailer for Sale | Wind Blade Transportation
62m Wind Blade Trailer | Windmill Blade Trailer for Sale | Wind Blade Transportation
62m Wind Blade Trailer | Windmill Blade Trailer for Sale | Wind Blade Transportation
62m Wind Blade Trailer | Windmill Blade Trailer for Sale | Wind Blade Transportation
62m Wind Blade Trailer | Windmill Blade Trailer for Sale | Wind Blade Transportation
Steel Material: HG60 high strength steel material
Dimension: 24,150*3000*1300mm

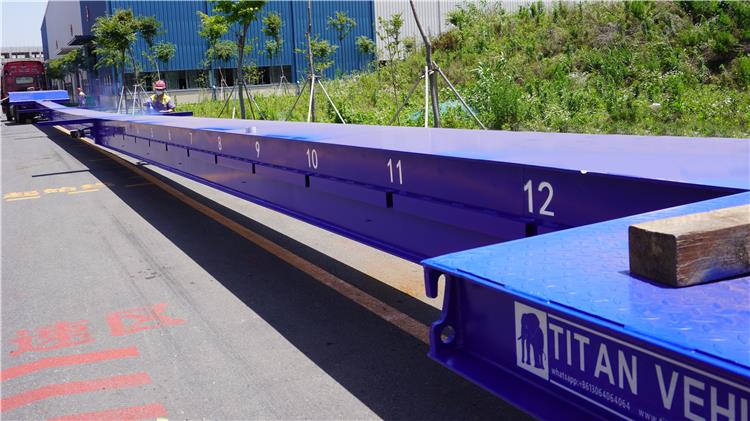

Extension length: 14,500+14,500+9,000mm
Loading capacity: 80 tons

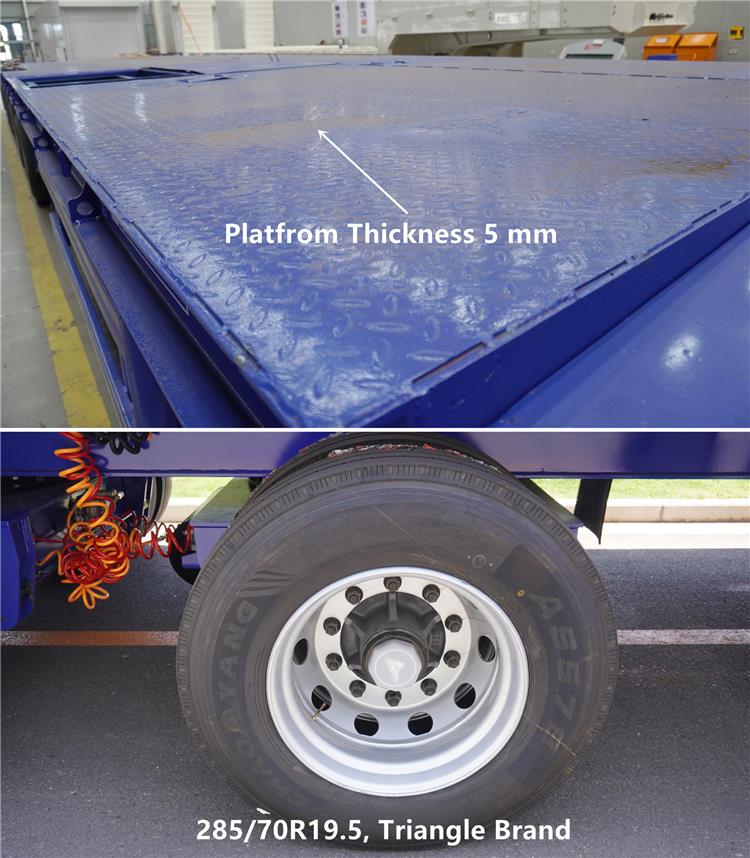

Platfrom thickness: 5 mm

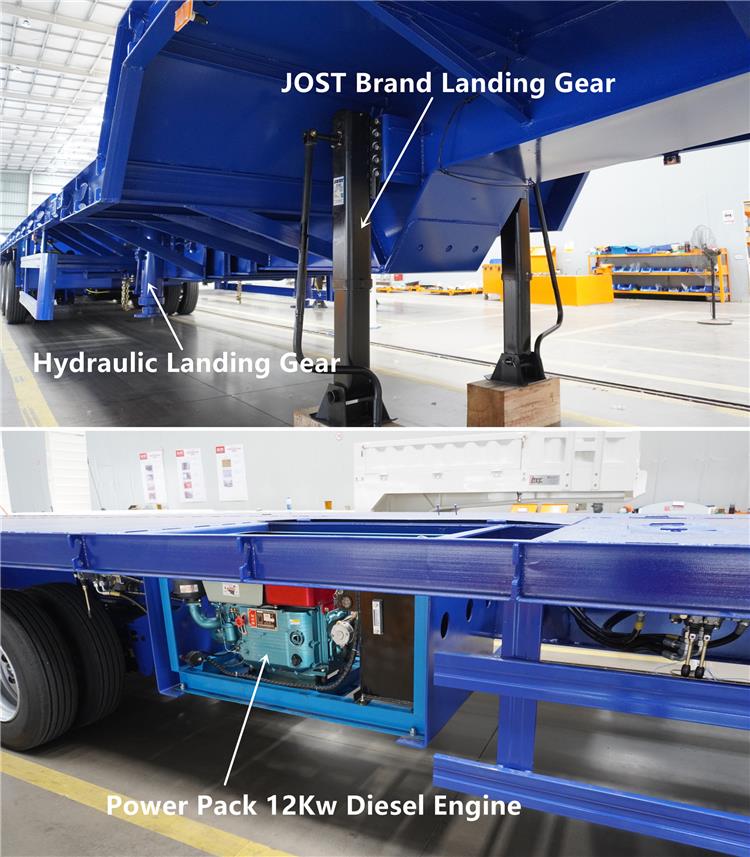

Power pack: 12Kw diesel engine
Axle: 6 steerable axles, An brand
Turntable steering: Suspension Leaf spring suspension
Tire: 285/70R19.5, Triangle brand
Braking system: WABCO emergency valve, dual-line braking system, 12 double brake chambers
Operation: 1 set manual valve & 1 set remote control
Landing gear: 2 units, the front is JOST brand,the rear one is hydraulic landing gear
Electrical system: 24V LED light
Accessories: 1 set tyre carrier, 2 sets tool box
