80ton Low Deck Gooseneck Trailer
80ton Low Deck Gooseneck Trailer

80ton Low Deck Gooseneck Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.



The removable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This type of a lowbed trailer has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors.

SKU: 80ton Low Deck Gooseneck Trailer
GTIN: 06975766110352
MPN: TITAN94090104
Brand: TITAN

80t Low Deck Gooseneck Trailer Product Description:

The 80t Low Deck Gooseneck Trailer is a simplified low-bed trailer type for commercial usage. Despite being of great use in solving many sophisticated issues, the previous gooseneck trailer designs still had issues with the connecting assembly that was found to be complex. As a result, the Removable Gooseneck trailer was designed to save space and make use of lighter units through a hinged frame assembly.

The removable gooseneck trailer relates to a hinged frame assembly ideally used for connecting a trailer of the low-bed type to a tractor. This type of a low-bed trailer has been widely accepted in the transportation of heavy equipment such as power shovels, cranes and tractors. This trailer type is usually attached to the tractor using a gooseneck that is normally detached from the front end of the trailer. The detachment is done after lowering the trailer front end into ground engagement to further enable front end loading and offloading of the heavy equipment onto and from the flat deck of the trailer.

80ton Low Deck Gooseneck Trailer for Sale in Indonesia

80ton Low Deck Gooseneck Trailer for Sale

80ton Low Deck Gooseneck Trailer for Sale in Indonesia

80ton Low Deck Gooseneck Trailer for Sale

80ton Low Deck Gooseneck Trailer for Sale in Indonesia

80ton Low Deck Gooseneck Trailer for Sale

 Luyi trailer, Luyi 80ton low deck gooseneck trailer

Specification:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axle

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

3 Axle 60 Ton Removable Gooseneck Trailer

 Luyi trailer, Luyi 80ton low deck gooseneck trailer

Through the video, you can know more details of 80ton Low Deck Gooseneck Trailer , etc.

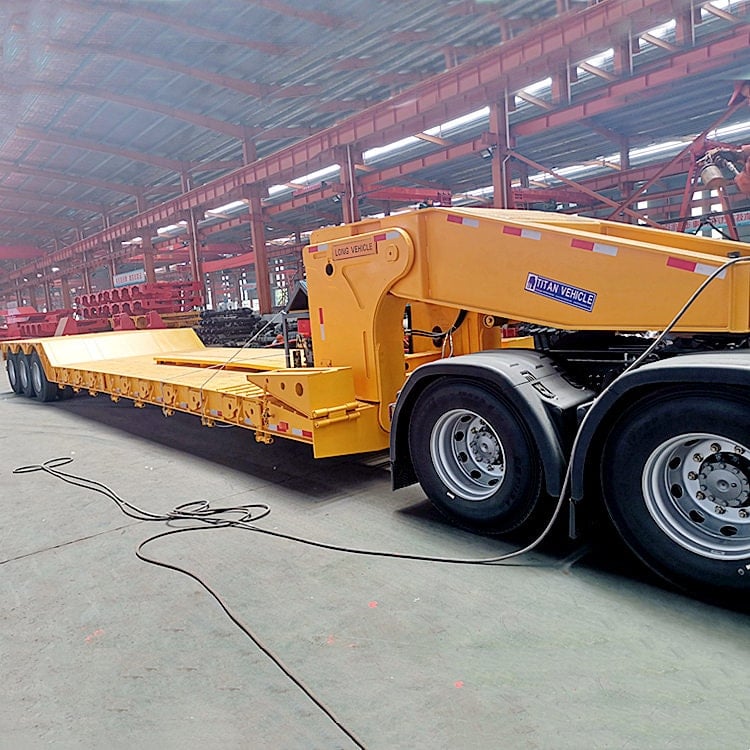

3 axle gooseneck trailer

Please click "TITAN Removable Gooseneck Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!

 Luyi trailer, Luyi 80ton low deck gooseneck trailer
