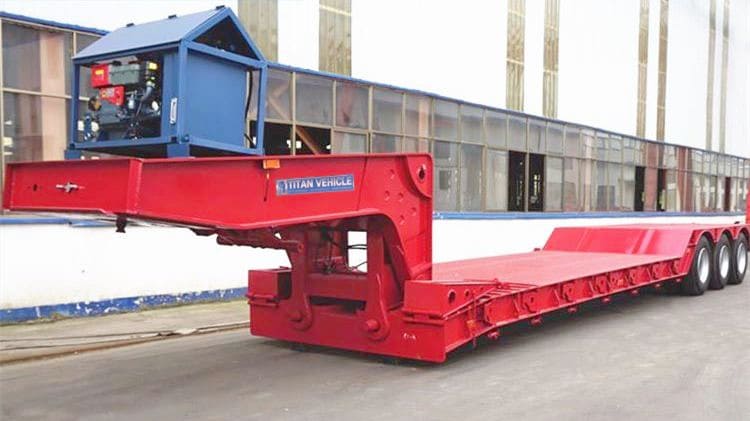

50 Ton Detachable Neck Lowboy Trailer

Detachable Neck Lowboy Trailer for Sale:

TITAN 50 ton detachable lowboy trailers for sale for transport excavator and construction equipment, large machinery transportation. With our increased cylinder stroke you can raise the trailer chassis as high as possible off the ground depending on the detachable neck lowboy trailer for sale fifth wheel height.

Loading method for detachable neck lowboy trailer for sale: cargo is loaded from the front. 50 ton detachable lowboy trailers for sale cargo table is only 85 cm, the center of gravity is very low, so the stability and security are very good. As you can see, TITAN 50 ton detachable lowboy trailers for sale can transport ultra-high and medium sized equipment and machine.

50 Ton Detachable Neck Lowboy Trailer for Sale in Nigeria

50 Ton Detachable Neck Lowboy Trailer for Sale in Nigeria

50 Ton Detachable Neck Lowboy Trailer for Sale in Nigeria

Specification of detachable lowboy trailers:

Dimension: 15800mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 axles, 13T/16T, FUWA / BPW / TITAN Brand

Tire: 12 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

50 ton detachable lowboy trailers for sale tire weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

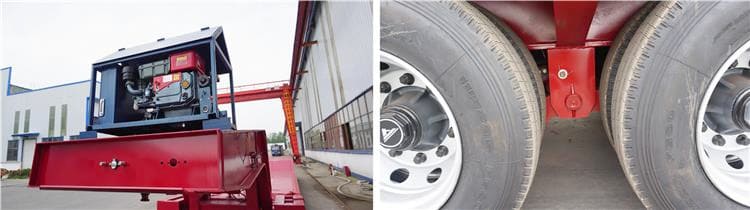

Hydraulic cylinder: 12KW diesel engine with hydraulic station

50 ton detachable lowboy trailers for sale ABS: Optional

Detachable neck lowboy trailer for sale valve: WABCO valve

Light: LED light (specially intended for oversea markets)

50 ton detachable lowboy trailers for sale voltage: 24V

Detachable neck lowboy trailer for sale tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

If you want to know more details about the 50 ton detachable lowboy trailers for sale, please click here "Removable Gooseneck Trailer" to watch the video!
