Different Parameters, Different Price. Price Reference Only.

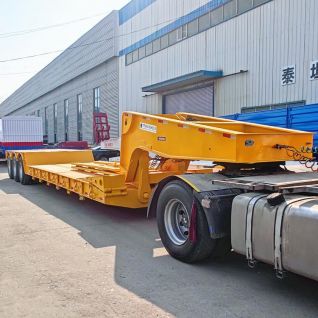

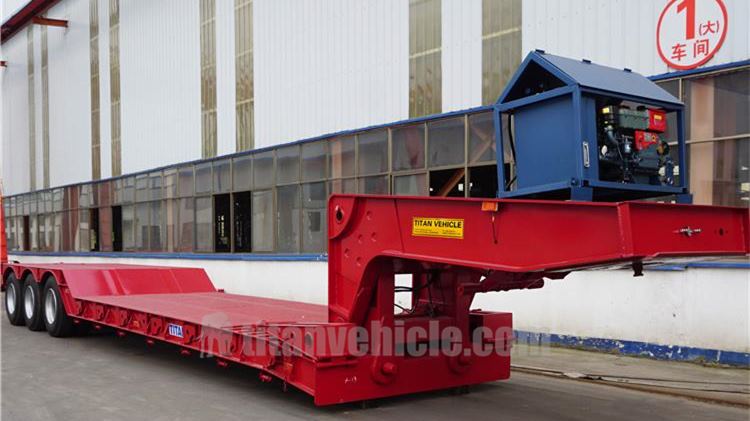

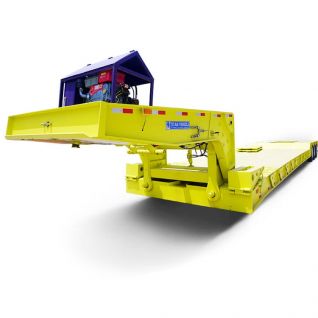

Tri Axle Front Loading Low Loader Trailer with 60ton/80ton/100ton/120ton/150ton parameters produced by TITAN manufacturer.
Front loading low loader trailers: Our front loading low loader trailers are often referred to as "lowboy trailers". These models are offered with capacities ranging from 35 to 55 tons. Well lengths are available ranging from 20’ to 33.5’ lengths on the tandem models and from 20’ to 26’ lengths on the tri axle models. Spring ride suspension is offered on 35 and 50 ton models. Ridewell brand air ride suspensions are offered on 35, 50, and 55 ton models. For states that are difficult to get your axle weights legal, flip axles are available in both tandem and tri axle models.
Dimension: 15800mm*3000mm*2500mm
Loading capacity(T): 50-150T
Axle: 3 axle; 13T/16T, FUWA / BPW / TITAN Brand

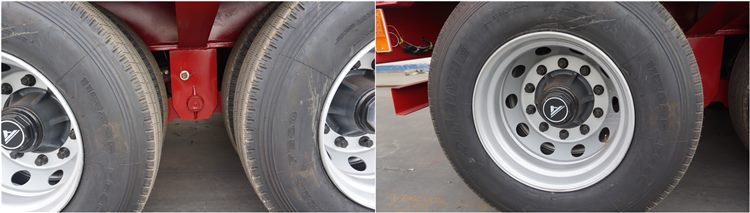

Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

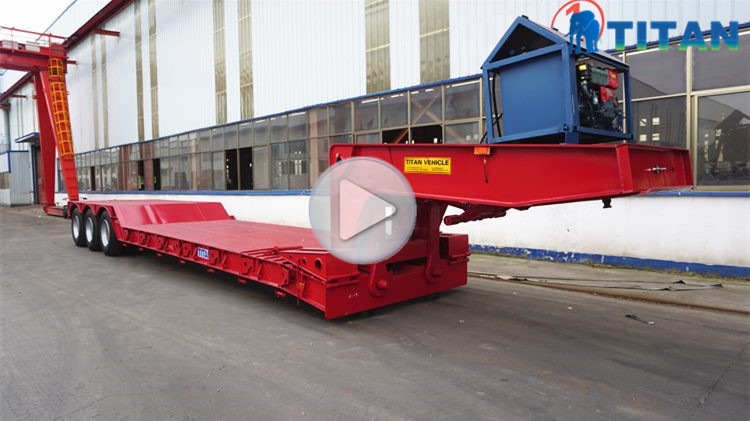

Through the video, you can know different types of 80ton front loading low loader , 3 axle front loading low loader trailer , front loading lowbed trailer, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
