Different Parameters, Different Price. Price Reference Only.

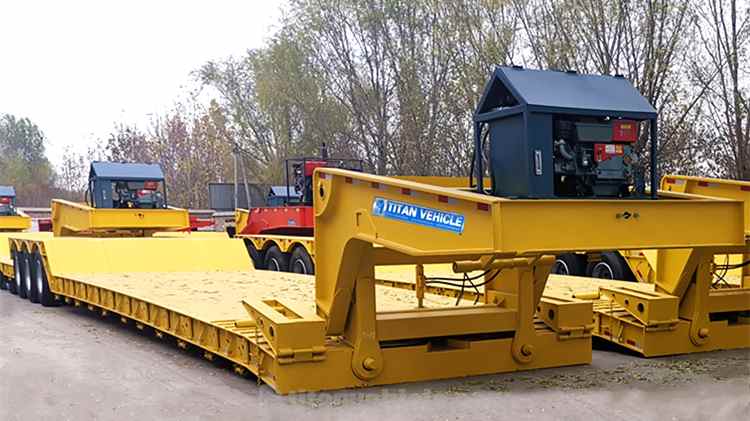

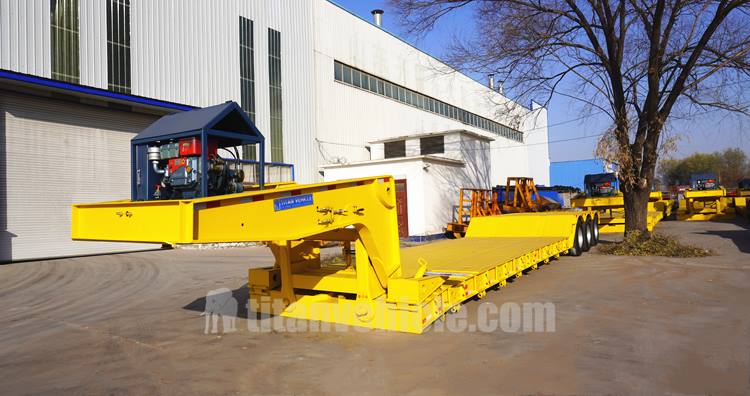

Detachable Used Lowboy Trailers for Sale usually used to transport excavators, heavy loads and other heavy equipment.
The mechanically used lowboy trailers frame is similar to the semi-trailer body frame, and both are symmetrical with respect to the longitudinal vertical center plane. And indirectly contact with the ground (supported by the ground). The front end of the gooseneck is connected with the traction saddle of the tractor through a traction pin. The relationship between the tractor and the gooseneck is that the tractor can rotate around the blood axis relative to the gooseneck. After being separated from the towing saddle, the tractor can be driven away from the semi-trailer.
Dimension: 15800mm*3000mm*2500mm
Loading capacity(T): 50-150T
Axle: 43 axle; 13T/16T, FUWA / BPW / TITAN Brand

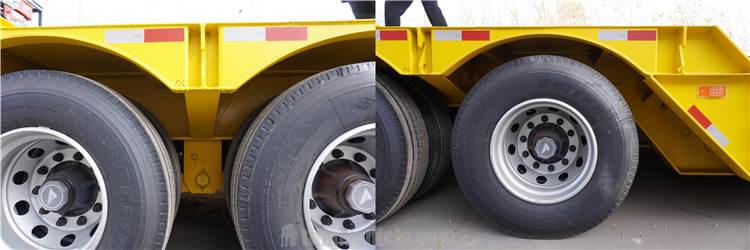

Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate
Hydraulic cylinder: 12KW diesel engine with hydraulic station
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

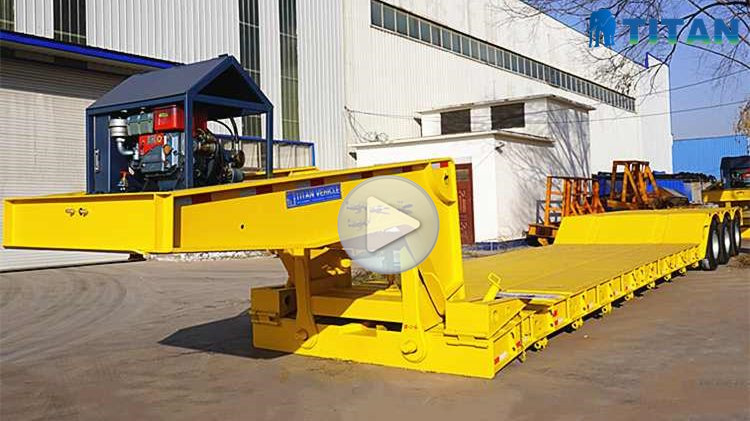

Through the video, you can know different types of 60ton used lowboy trailers for sale , 3 axle detachable lowboy trailers , detachable used lowboy trailers, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
