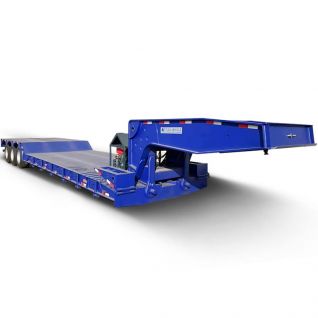

Removable Gooseneck Trailer
Removable Gooseneck Trailer

Removable Gooseneck Trailer

27000 USD

Different Parameters, Different Price. Price Reference Only.



A removable gooseneck semi trailer, also known as a double drop or lowboy, is ideal for hauling large equipment.

SKU: Removable Gooseneck Trailer
GTIN: 06975766110369
MPN: TITAN9409094
Brand: TITAN

Removable Gooseneck Trailer Product Description:

A removable gooseneck semi trailer, also known as a double drop or lowboy, is ideal for hauling large equipment. Each country, province, and state has restrictions for height when transporting equipment. With an removable gooseneck semi trailer, because it drops in the middle, you have more height to work with and can fit larger pieces of equipment on the trailer. The drop in the middle is known as the “well”. The well usually spans about 29 feet across. When you place a piece of equipment in the well you can legally take loads up to 12 feet tall making it ideal for large equipment and oversized loads.

Removable Gooseneck Trailer for Sale in Nigeria

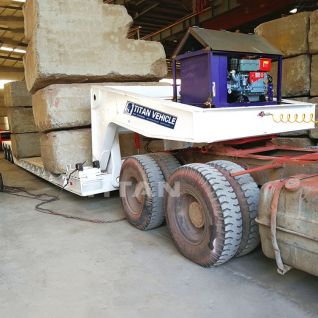

3 Line 6 Axle Removable Gooseneck Trailer

Removable Gooseneck Trailer for Sale in Nigeria

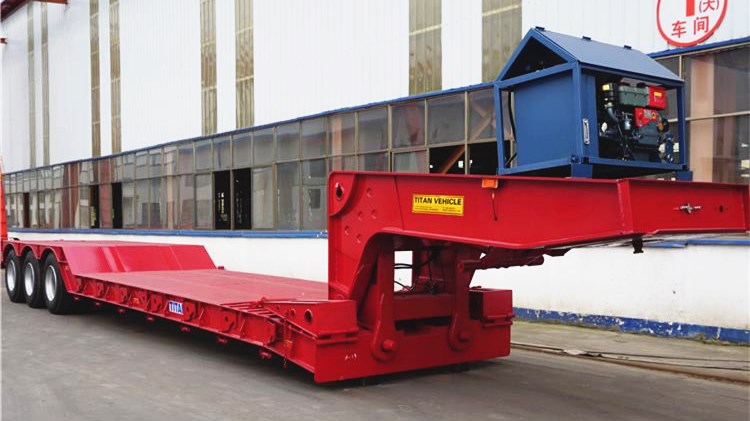

120ton Removable Gooseneck Semi Trailer

Removable Gooseneck Trailer for Sale in Nigeria

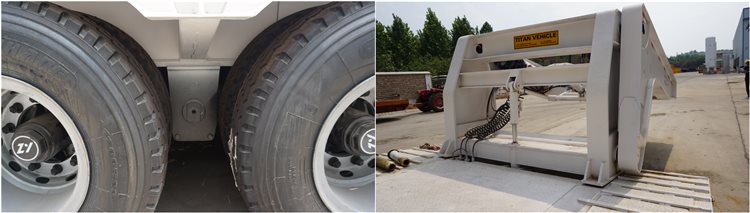

Details of the Removable Gooseneck Trailer



Specification:

Dimension: 17000mm x 3000mm x 2500mm

Loading capacity(T): 50-150T

Axle: 3 line 6 axle

Tire: 24 units, 8.25R20/10.00R20/11.00R20/12R22.5

Suspension: Mechanical suspension or air suspension

Spring leaf: 120(W)mmx16(Thickness)mmx10 layers

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

Tare weight: About 9.5-19T

Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.

Bottom Platform: 5mm thick, checkered plate

Hydraulic cylinder: 12KW diesel engine with hydraulic station

Ramp: spring or hydraulic type

ABS: Optional

Valve: WABCO valve

Light: LED light (specially intended for oversea markets)

Voltage: 24V

Tool box: 1 set

Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust

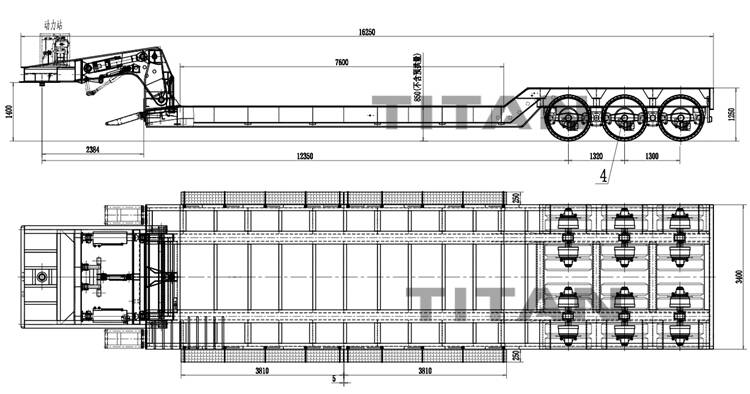

3 line 6 axle removable gooseneck trailer



Discount trailers:

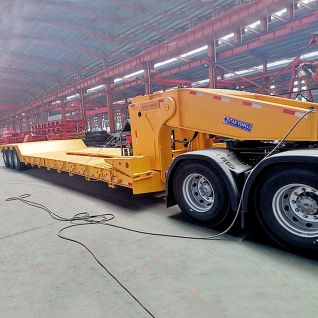

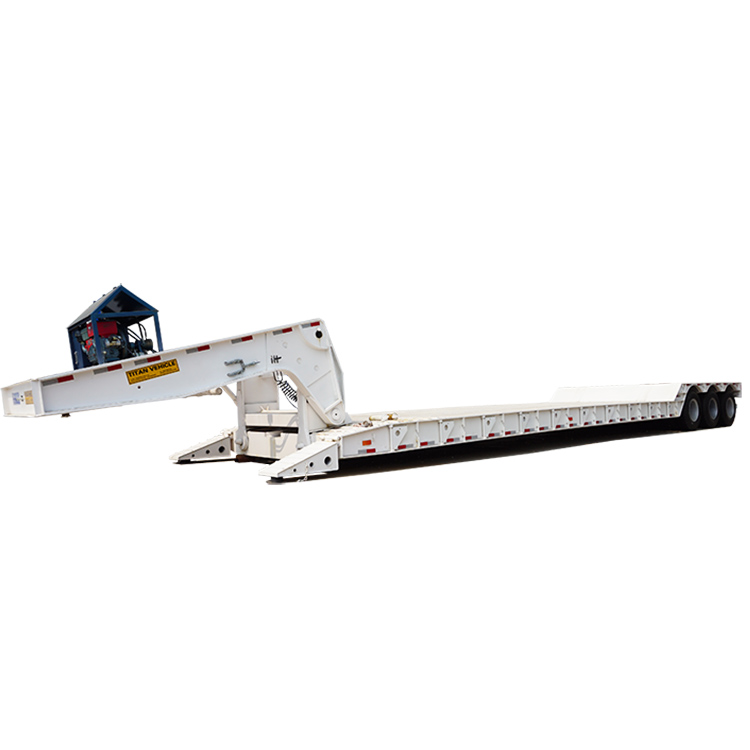

Spot Removable Gooseneck Trailer at 15% Discount

removable gooseneck trailer

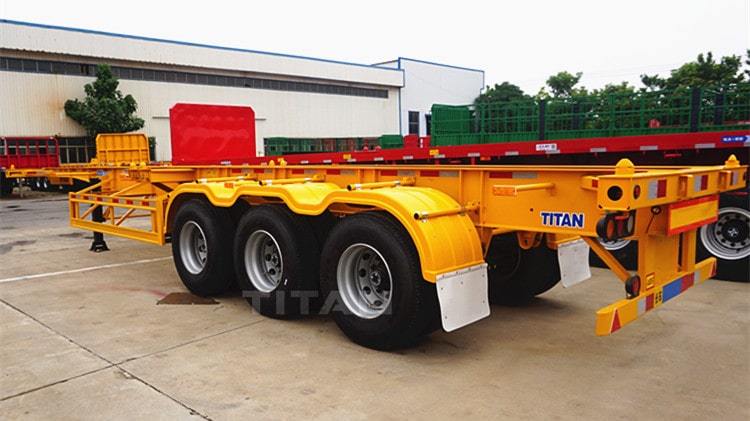

40ft Container Chassis Trailer $500 Discount

container chassis trailer
