Front Wall Flatbed Semi Trailer
Front Wall Flatbed Semi Trailer

Front Wall Flatbed Semi Trailer

9800 USD

Different Parameters, Different Price. Price Reference Only.



TITAN 4 axle 53 ft flatbed trailer with front wall. It can transport 40ft, 45ft, 53ft containers. TITAN can also offer the 20ft/40ft/48ft/53ft, 2/3/4 axles, the capacity from 60-100 tons.

SKU: Front Wall Flatbed Semi Trailer
GTIN: 06975766110215
MPN: TITAN9403034
Brand: TITAN

Product Description:

TITAN front wall flatbed trailer is a kind of trailer whose design is suitably made to carry bulk cargo and containers between shipping facilities and terminals. By simple definition, this is a long flat platform. 53 ft flatbed trailer for sale is usually used to transport 20ft/40ft/45ft/53ft containers.

TITAN Vehicle adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life. To make sure the service life of the semi trailers, all the spare parts we adopt are World Famous brand.



At the same time , we also provide another type, like extendable flatbed trailer, timber trailer for transport logs and flatbed trailer with side wall.

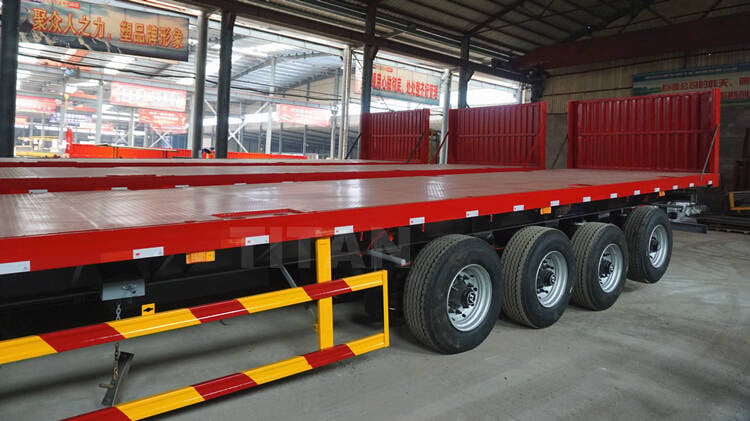

Front Wall Flatbed Semi Trailer for Sale in Mozambique - TITAN Vehicle

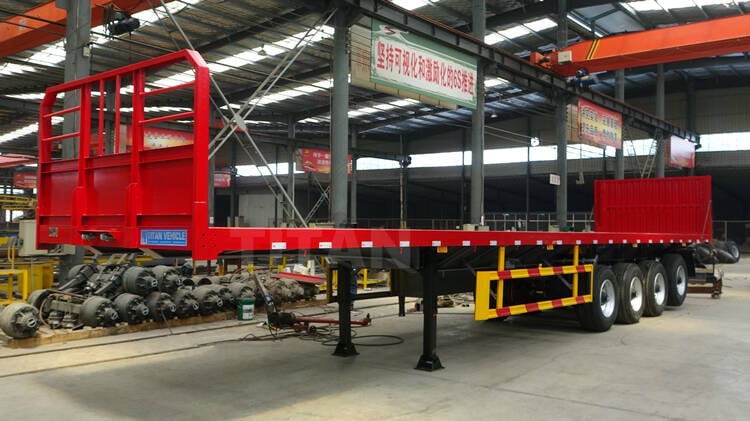

Front Wall Flatbed Semi Trailer for Sale in Mozambique - TITAN Vehicle

Front Wall Flatbed Semi Trailer for Sale in Mozambique - TITAN Vehicle



Specification:

Dimension(mm): 13000x2500x1530mm

Loading capacity(ton): ≤60T

Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand

Tire: 16 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension(Germany or America type) or Air suspension(China brand or BPW brand)

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)

King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)

Valve: WABCO valve (specially intended for oversea market)

ABS: Optional

Light: LED light (specially intended for oversea market)

Voltage: 24V

Socket(Receptacle): 7-pin Socket (for 7 wire harness)

Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)

Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats



Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.



Please click "TITAN Flatbed Trailer" to get detailed video!

Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
