Heavy duty hydraulic 80 ton end dump truck trailer is available to transport bulk freight, such as coal, mineral, and construction materials.
Hydraulic pumps through the tractor transfer force, pressurization, and then the head to control the hydraulic oil pressure. You can achieve Heavy duty hydraulic 80 ton end dump truck traile hydraulic cylinder lifting, generally from the beginning of lifting to the end, basically within the 30s can be completed.‹Get Quotation›
Heavy Duty Hydraulic 80 Ton End Dump Truck Trailer Price for Sale In Tanzania
Tri Axle 80 Ton End Dump Truck Trailer Price for Sale

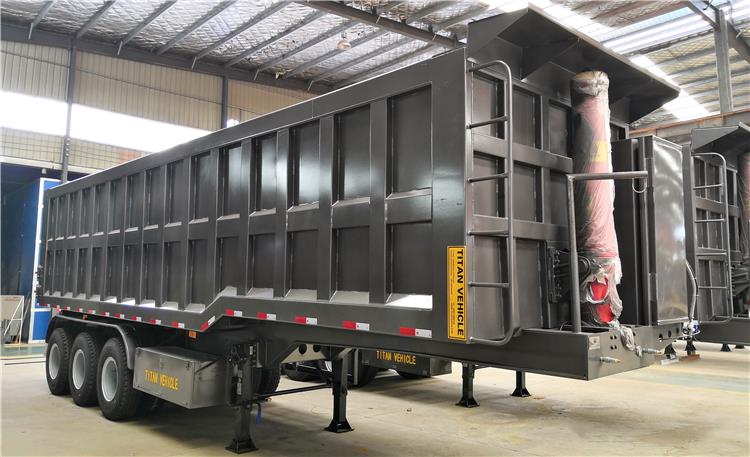

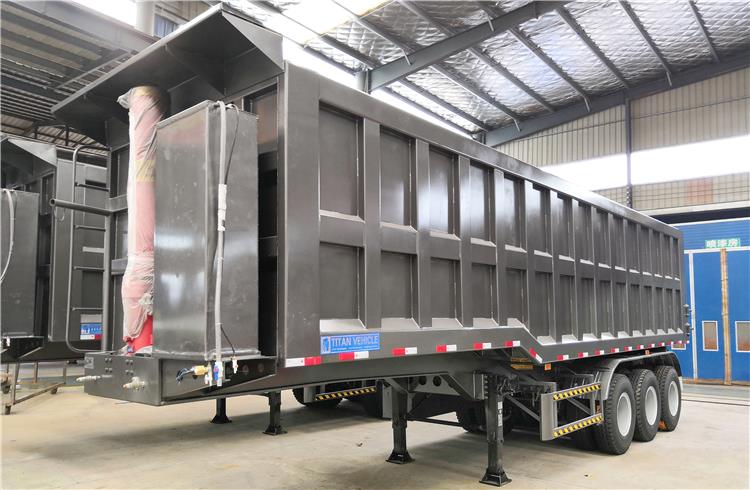

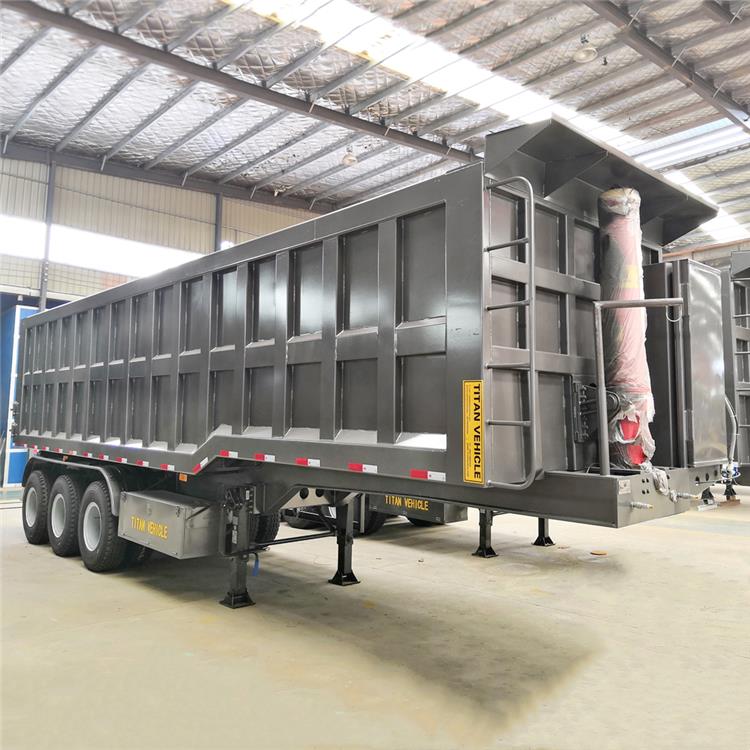

Details of Heavy Duty Hydraulic 3 Axle 80 Ton End Dump Truck Trailer Price

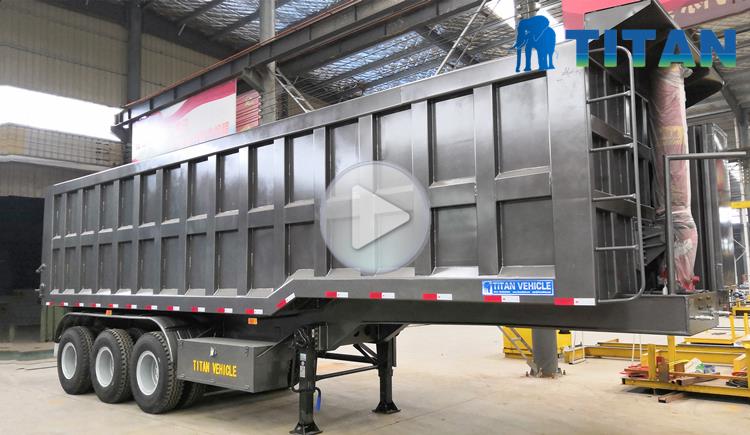

Video of 3 Axle 80 Ton End Dump Trailer

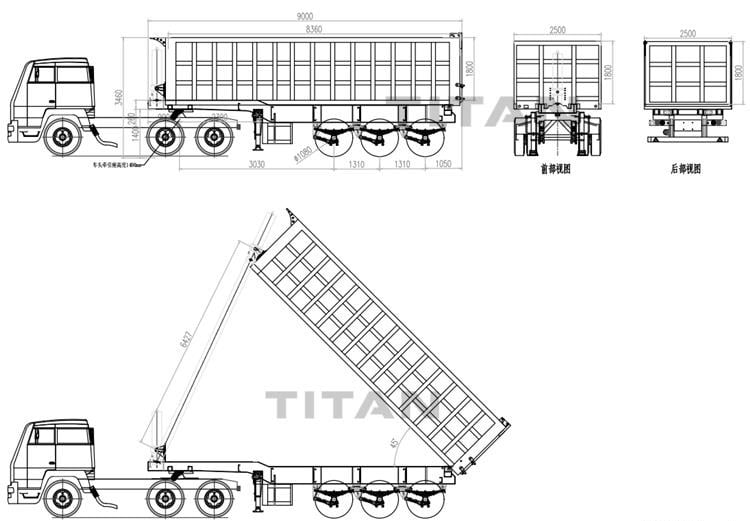

Dimension: 9000mmx2500mm x3460mm ( inside dimension )
Total volume(ton): 80 Ton
Side wall thickness: 4 - 6mm
End plate: 8mm
Lifting System: Full set of HYVA lifting cylinder
Axle: 3 Axle, 13T, FUWA
Rim: 8.0-20 or 9.00-20
Tire: 12R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 480mm-500mm, Upper plate: 16mm-25mm, Middle plate: 12mm-20mm, Lower plate: 18mm-25mm, Material: T700 steel.
Bottom Platform: 4-6mm thick checkered plate
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
1. Two girders were designed for the double plate. It has a more substantial carrying capacity and is unbreakable.
2. Cross balance beam: A balance beam in the front and rear of the main shaft can support the beam better and is not easy to deform.
5. Flip Bracket: The equipped four units of the flip bracket can make the end dump truck trailer rear end more evenly stressed when unloading and less likely to damage the heavy duty dump trailers.
3. Hydraulic cylinder: With a broader diameter and higher height, the HSG has a better and more stable lifting capacity which will be difficult to turnover.
4. Dead weight: hydraulic dump trailer with heavier self-weight and more substantial carrying capacity.
6. Leaf spring and suspension: The leaf spring is widened and thickened for good shock absorption, the rest is enlarged, and the center pin is widened to make the hydraulic dump trailer more stable in driving.
7. Vice beam: It is equipped with four units of sub-beam, which can make the bottom of the box with more substantial load capacity and minor deformation. The lattice structure of the side door makes the side door more solid.

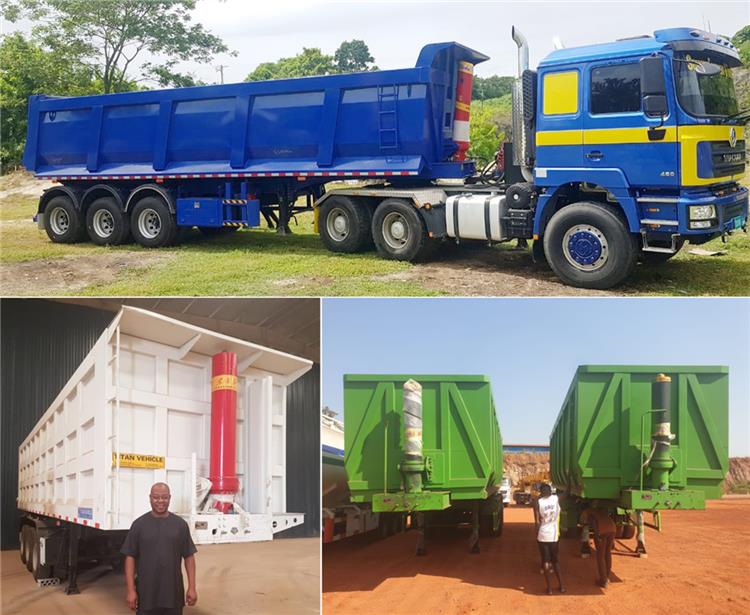

Many TITAN customers have purchased 3 axle 80 ton heavy duty hydraulic end dump truck trailer. And customers are very happy to share their usage. Because TITAN's quality service is perfect, that's why many customers choose TITAN again.
Heavy Duty Hydraulic 80 Ton End Dump Truck Trailer Price for Sale In Tanzania
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.
