Price: 11500 USD

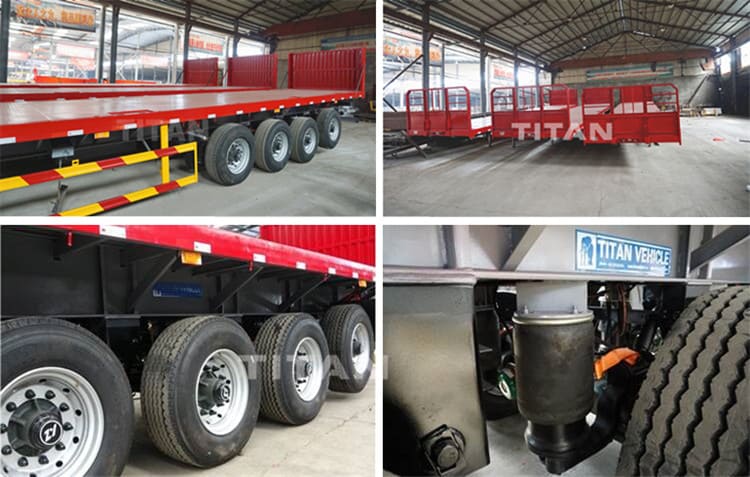

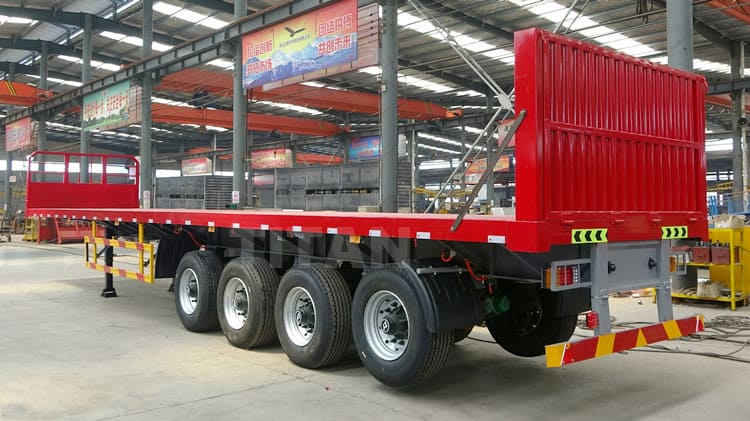

TITAN offers 4 axles flatbed trailer. It can transport 20ft, 40ft, 45ft, 48ft container. And there are variety of flatbed semi trailers for you to choose from.
TITAN Vehicle 4 axle 45 ft flatbed trailer cost adopts high strength steel material to manufacture the flatbed trailer, it can make the flatbed trailer have a higher loading capacity and a longer service life.
To make sure the service life of the semi trailers and better carry heavier containers, all the spare parts we adopt are World Famous brand.
How Much Does A Flatbed Trailer Cost? Flatbed Semi Trailer Price
How Much Does A Flatbed Trailer Cost? Flatbed Semi Trailer Price
How Much Does A Flatbed Trailer Cost? Flatbed Semi Trailer Price
Dimension(mm): 13000x2500x1530mm
Transport: 20ft, 40ft, 45ft container
Loading capacity(ton): ≤60T
Axles: 4 axles, 13T/16T ,FUWA/ BPW/ Huajing Brand
Tire: 16 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5

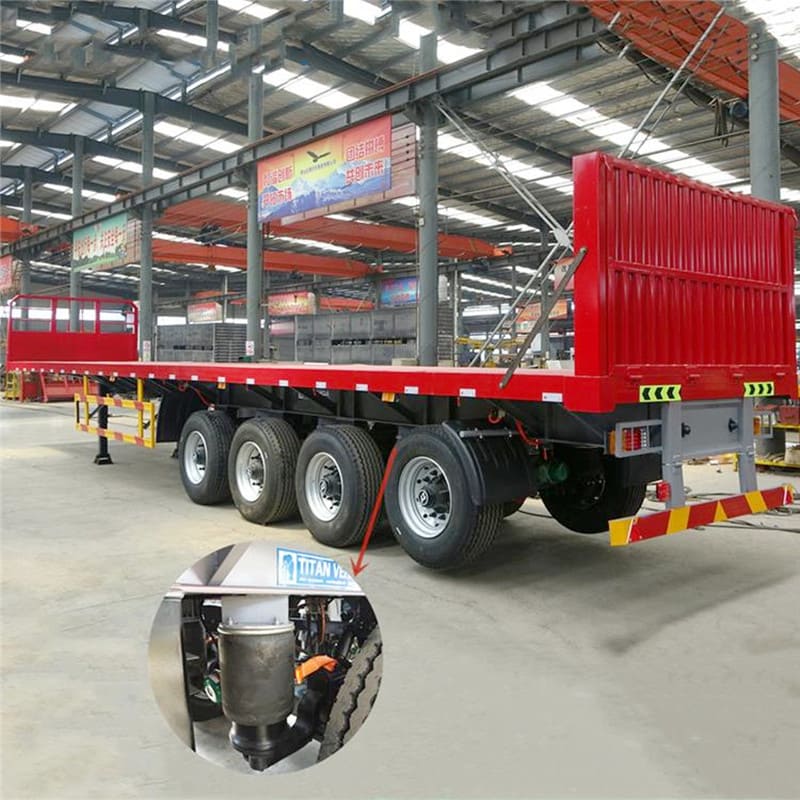

Suspension: Airbag suspension(China brand or BPW brand)
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Side Beam: 16mm or 18mm steel channel (material: Q235 steel)
Platform: 3mm-thick checkered plate
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
ABS: Optional
Light: LED light (specially intended for oversea market)
Voltage: 24V
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
1. TITAN Vehicle uses automatic arc-submerging welding method to weld the main beam, so the main beam is more stronger and more durable.
2. Durable mechanical widened spring suspension, make sure the stable and safety.
3. polyurethane paint, the vehicle is more beautiful, effective protection of the body against rust, extend the life of the vehicle.
4. Hight Quality container locks, make sure the stable and safety of the loads.
5.The whole trailer is equipped with LED lamps and we will be shipped with a set of taillights and side lights
Through this videos, you can learn about different types of flatbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
4 Axle flatbed semi trailer details display video
