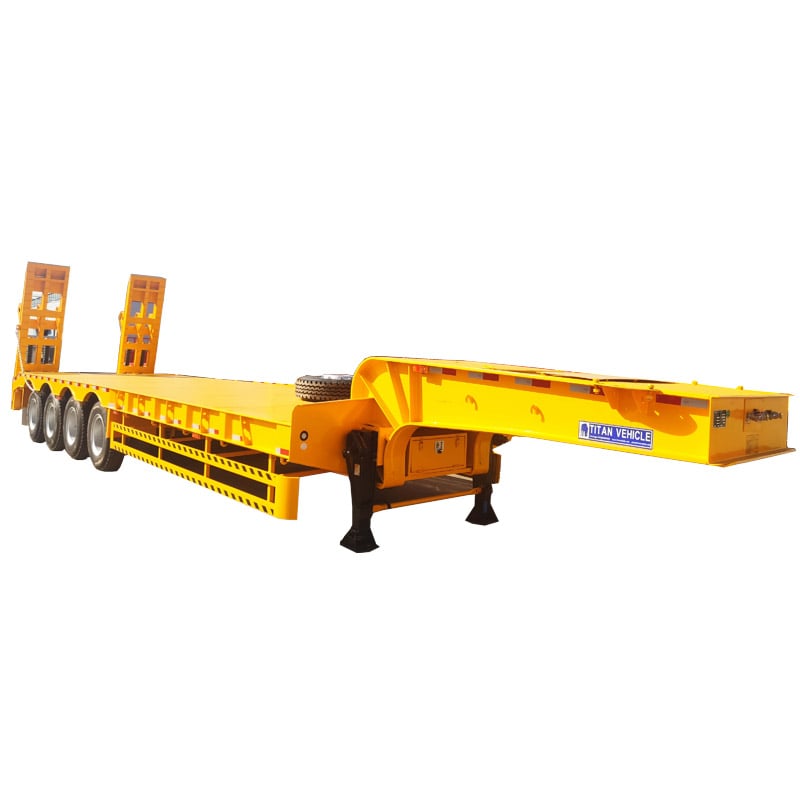

TITAN Vehicle offers 4 axle 100t low bed loader truck trailer designed to carry 80 tons, 100 tons, 120 tons, 150tons goods. It's main cargo platform is low, which ensures the stability of transportation.
TITAN 4 axle 100 ton low bed loader truck trailer for sale use HG60 high strength steel material to ensure the capacity, the load can be up to 100 to 120 ton payload.

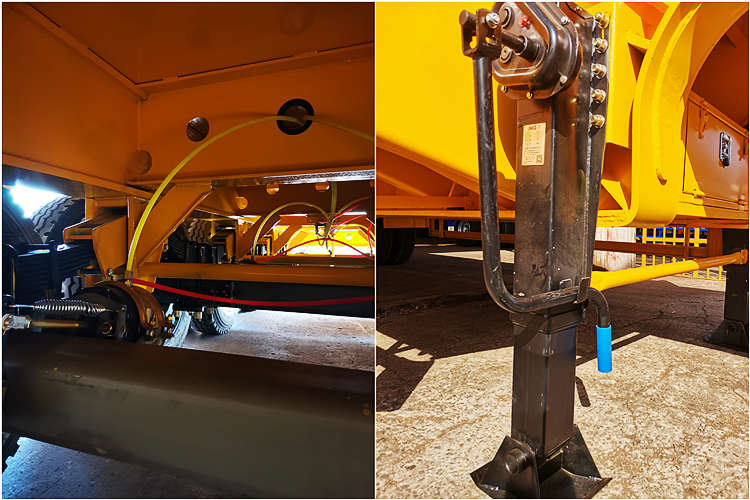

We adopt famous brand parts, like WABCO braking valve, JOST legs, FUWA, BPW axles. This’ll ensure the long service life of the trailers.
The loading ramps is made by high strength steel, with high loading capacity, the deformation will not happen when carry heavy equipment.
Low Loader Trailer | 4 Axle 100T Step Drop Deck Trailer for Sale in Ghana Tema
Low Loader Trailer | 4 Axle 100T Step Drop Deck Trailer for Sale in Ghana Tema
Low Loader Trailer | 4 Axle 100T Step Drop Deck Trailer for Sale in Ghana Tema
Overall dimension: 16000mm * 3000mm *3400mm
Loading capacity(T): 100T
Axle: 16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: hydraulic type
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
1. Main beam adopts HG60 high strength steel, with high loading capacity.
2. Side beam adopt “H” shape design, the durable design avoid the side beam to have the deformation.
3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
4. polyurethane paint, with long service life, and avoid the vehicle get rust.
5. World famous brand spare part, ensure high quality and save costs.
4 Axle 100 Ton Lowbed Loader Semi Trailer details display video
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
