Different Parameters, Different Price. Price Reference Only.

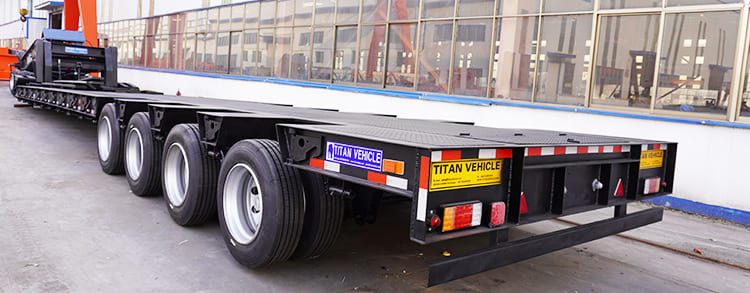

100ton Military Lowboy Trailer can be made into a pull-out type according to customer requirements, and the middle is made into an arc shape to adapt to large-diameter round objects.
100ton military lowboy trailer adopts hydraulic automatic steering and comes with a hydraulic pump station power system. Now it is necessary to introduce technology. The series of detachable gooseneck trailer have flat, concave beam and tire leakage structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of rigid height and strong height. The low plane of the truck rack and column ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel.
The military lowboy trailer is used for pulling mechanical equipment, large-scale equipment such as excavators, bulldozers, etc. The second and third bridges can be equipped with 30 tons, 50 tons, 60 tons, 80 tons, 100 tons, 120 tons, and 300 tons. Pulling and optional hydraulic ladder trucks have a low level of shelf and column to ensure the stability of transportation and are suitable for carrying all kinds of construction machinery, large equipment and steel.
Dimension: 16500mm x 3000mm x 2500mm
Loading capacity(T): 50-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20 or 900*22.5
Tire: 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Main beam: Height: 500mm; Width: 230mm; Side beam: 250 I-beam 10/8/10; Material: HG60 high-strength steel.
Bottom Platform: 5mm thick, checkered plate

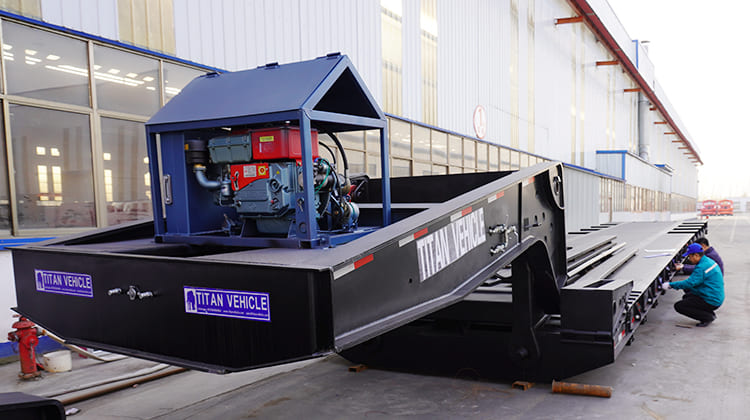

Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Shipping terms: Transported by the bulk carrier in an RORO or 40HQ container

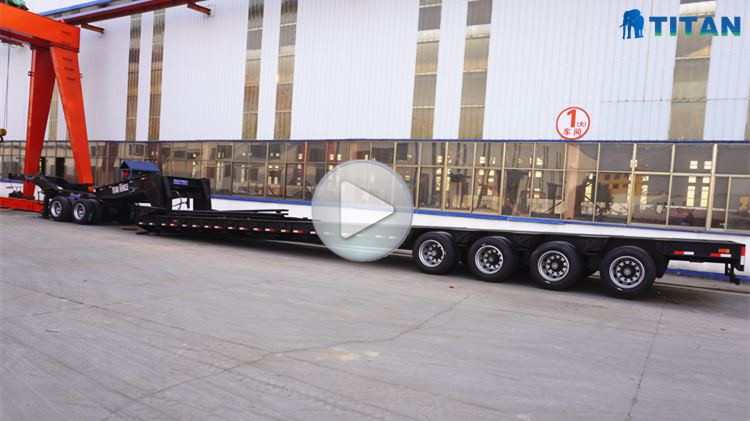

Through the video, you can know different types of 100ton military lowboy trailer , 4 axle military lowboy trailer for sale , military lowboy semi trailer, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
