45000 Liters fuel tankers semi trailer is generally used to transport kerosene, diesel, vegetable oil, edible oil, heavy oil, coal tar and non-petroleum products such as alcohol, aldehyde, benzene, ether and other liquid substances.
The 45000 Liters fuel tank semi trailer is divided into two parts, the fuel tank part and the skeleton or driving part that supports the tank body.
The rear of the 45000 Liters fuel tank semi trailer is roughly the same, there are 2 axles and three 3 axles. Choose the tractor according to your needs. 45000 Liters fuel tank semi trailer is usually called by the brand of tractor.
Semi tanker trailer is mainly used to transport diesel, petroleum, oil, petrol, etc. It is generally used for long-distance transportation, mainly used in gas stations, factories and other places.‹Get Quotation›
Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices
Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices
Semi Tanker Trailer | Fuel Tank Semi Trailer | Heavy Fuel Tanker Semi Trailer for Sale | Fuel Tank Trailer Prices

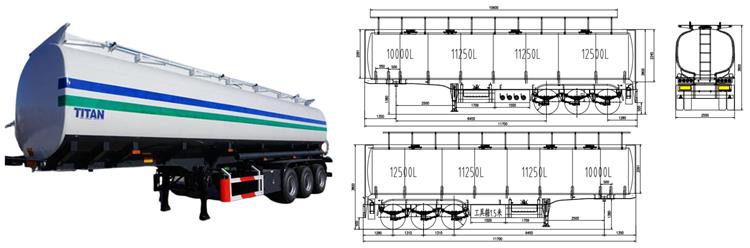

Dimension: 11000mm * 2550mm *3800mm
Tare Weight (semi trailer): About 8000-12800kg
Heavy Fuel Tanker Semi Trailer for Sale Total volume(L): 45000 liters
Tank Body Material: Q235 carbon steel
End plate: Q235 carbon steel
Heavy Fuel Tanker Semi Trailer for Sale Manhole Cover: Carton steel
Bottom Valve: Aluminum API Pneumatic Bottom Valve
Compressor: BOHAI 10m³/12m³ or other brands
Discharging Valve: Diameter is 3 or 4 inch
Compartments: 4 Compartment
Discharging Pipe: 4 inch rubber hose,2pcs,6m/each
Cat Walk: With (common model or special design)
Main beams: Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material
Heavy Fuel Tanker Semi Trailer for Sale Axle: 3 axles,13T,FUWA
Landing Gear: JOST(D200T) or China brand 28T
Kingpin: JOST 2.0 or 3.5 inch bolt-in king pin
Fuel Tank Trailer Prices Suspension: Mechanical suspension
Leaf Spring: 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers
Pneumatic Braking System: WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank
Rim: 9.00-22.5Chinese brand
Fuel Tank Trailer Prices Tire: 12.00R22.5
Fuel Tank Trailer Prices ABS: Optional
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats.
Accessories: One standard tool box

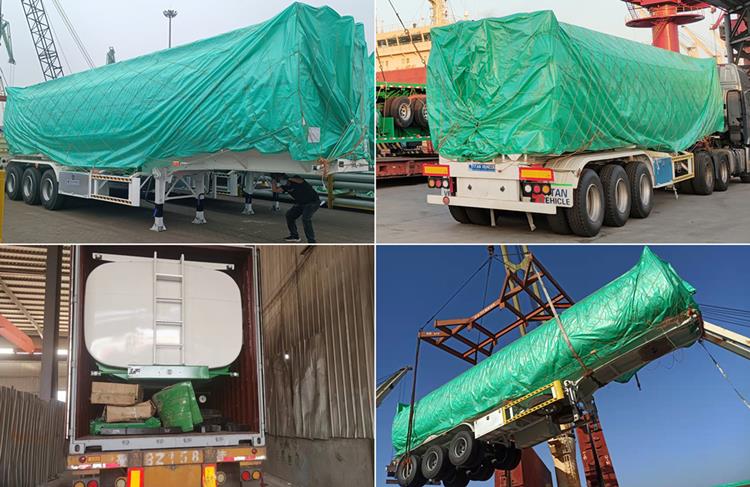

Shipping Terms: By bulk cargo, RORO or 40HQ containers
1. TITAN uses Q235 low carbon alloy steel to make the tanker, the thickness of the tank is 5mm thick, which is very strong.
2. The 45000 liters fuel tank trailer price tank adopts longitudinal welding technology to minimize the number of welds. This greatly improves the robustness of the tank. Increases its service life of the fuel tanker trailer.
3. The 45000 liters fuel tanker trailer is also painted with polyurethane, which is beautiful in color and twice the cost of ordinary paint. Color will not fade within 5 years of use.
4. Discharge port: 45000 liters fuel tank trailer price can also be divided according to customer needs. The discharge port can also be changed to the discharge port of the European system according to customer requirements
5. Tank cover: TITAN uses a European standard pair of explosion-proof covers. There are breathing valve, oil and gas recovery valve and anti-overflow valve inside.
6. After the production of all fuel tank trailer price, pressure test, metal flaw detection test, and water filling test will be carried out to ensure good airtightness of the tank.
7. The TITAN is equipped with a thickened wave-proof board to reduce the impact force of the liquid on the semi tanker trailer.

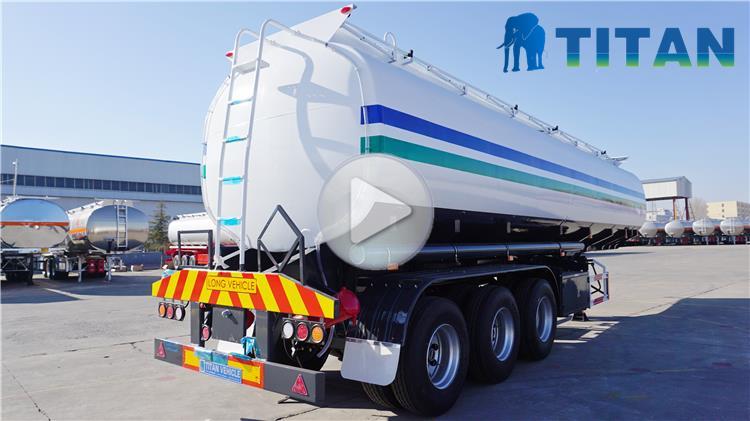

Through this video, you can learn about different types of fuel tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
