The 30m3 pneumatic sand tanker trailers are mainly composed of a driving system and a tank body. The commonly used tank materials are carbon steel, aluminum alloy and stainless steel.
The 30m3 pneumatic sand tanker trailers are mainly used to transport 30 tons, 40 tons, 45 tons and 80 tons of cement.
TITAN 30m3 pneumatic sand tanker trailers adopt Weichai engine & Famous brand air compressor so that keep the fast unloading speed. Each unit 30m3 pneumatic sand tanker trailers will have a big toolbox then you can put some spare parts and tools in it‹Get Quotation›
Tri Axle 30m3 Pneumatic Sand Tanker Trailers for Sale in Africa
Tri Axle 30m3 Pneumatic Sand Tanker Trailers for Sale Price
30m3 Pneumatic Tanker Trailers for Sale
Details of Tri Axle 30m3 Pneumatic Sand Tanker Trailers

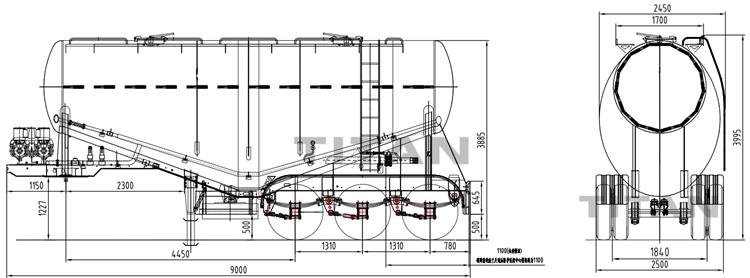

Dimension: 9000mm * 2500mm *3995mm (the exact size depends on the final design.)
Tanker body material : 5mm high strength wear-resistance steel
Payload : 30m3
Application: transport lime, cement, powder etc.
Tank body thickness: 3.5mm
Compressor: 12m³ double cylinder air compressor
Spare tire rack: 2 units
Leaf spring: 10 pieces
Sprinkler: one sprinkler; car waxing
Diesel Engine: WEICHAI Brand
Suspension: Heavy-duty mechanical suspension
Landing gear: JOST
Brake system: WABCO
Light: LED light (especially intended for oversea markets)
Tool box: 1 set
Painting: Polyurethane paint, with long service life, and avoid the vehicle getting rust

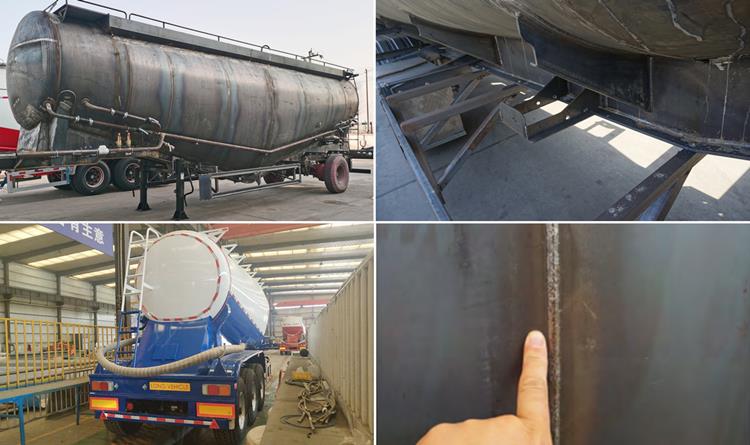

TITAN pneumatic sand tanker trailers tank body as a whole is made of high-strength alloy steel from a well-known domestic manufacturer, with very tight welding, good airtightness, and good performance, and also adopts advanced technology, fluidized bed, non-planning structure, gas-material separation device, and safe discharge device, which effectively reduces the weight of the vehicle and improves the discharge speed.
The material of pneumatic sand tanker trailers manhole cover is cast aluminum light material cover, all of his overall fasteners have been galvanized, we can open the pneumatic sand tanker trailers manhole cover effortlessly when we open it, and the manhole cover has made a unique design, which can effectively avoid the accumulation of materials so that it can also minimize the human resources and material resources for maintenance and save costs.

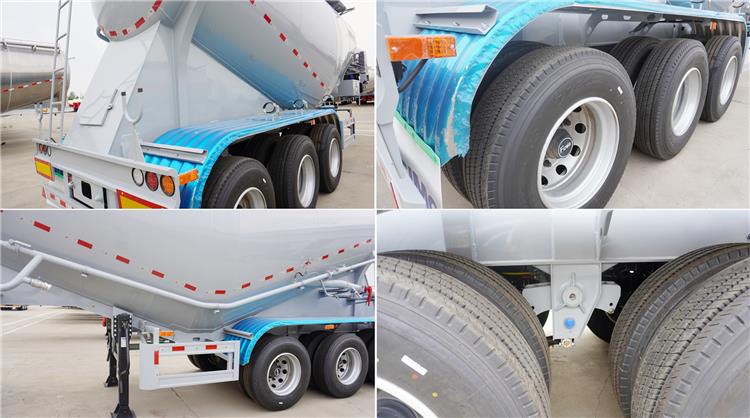

The pneumatic sand tanker trailers suspension system is made of high-strength steel of a famous domestic brand, which is very light. The bulk cement truck trailer suspension system, consisting of soft steel leaf springs, brackets, and U-bolts, can guarantee the load balance of each axis, and also can avoid the phenomenon of runaway and Ken tires.
One is the head power, and then another is the air compressor as power, both can be very good for unloading goods, we can choose according to the actual situation, at present relatively more people still choose diesel engine air compressor to unload goods, relatively speaking the operation is more flexible and convenient.
The pneumatic sand tanker trailers braking system uses the dual-pipe braking system; It is mainly composed of imported relay valves, a pneumatic primary vehicle braking system, and an ABS anti-lock braking system, which can better protect client trailer situations safety.
If the paint is not good, it is easy to cause rust. We use the domestic advanced baking paint technology, the overall paintwork well, spraying uniform, and strong corrosion resistance. The pneumatic sand tanker trailers everyday use of 5-8 years will not appear to be fading problems.
Through these videos, you can learn about different types of bulk cement tanker trailers, as well as the process, testing, packaging and customer feedback, etc.
