Different Parameters, Different Price. Price Reference Only.

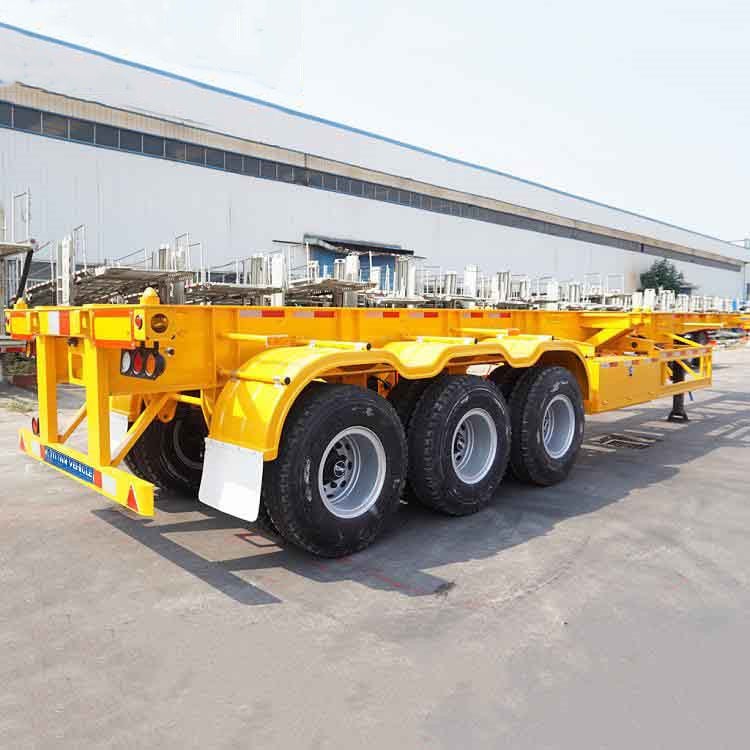

Tri Axle 40ft Skeleton Trailer for Sale is specially designed to carry various cargo containers. You can choose to use your road trailer to transport 20/40/45ft container.
Tri Axle 40ft Skeleton Trailer for Sale is specially designed to carry various cargo containers. You can choose to use your road trailer to transport one 20/40/45ft container, or two 20 foot containers at one time. The only difference that your choice makes is the number of locks required for specific transportation applications.
The Tri Axle 40ft Skeleton Trailer for Sale main beam is a welded structure that has been sent through submerged arc welding process. The whole bodywork is shot-peened to receive an anti-corrosive cost.
Tri Axle 40ft Skeleton Trailer for Sale in Jamaica
Tri Axle Skeleton Trailer for Sale
Loading capacity(ton): ≤60T
Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand
Tire: 13 units, 12.00R22.5 or 315/80R22.5
Rim: 9.00-22.5 or 9.75-22.5
Suspension: Mechanical suspension or Air suspension
Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)
King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)
Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)
Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel
Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank
Twist Locks: 4,8,12 sets (lifting or screw type)
Valve: WABCO valve (specially intended for oversea market)
Light: LED light (specially intended for oversea market)
Socket(Receptacle): 7-pin Socket (for 7 wire harness)
Painting: Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats
Tool Box: 1m x 0.5m x 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs)
Shipping Terms: Transported by the bulk carrier in an RORO or 40ft container
