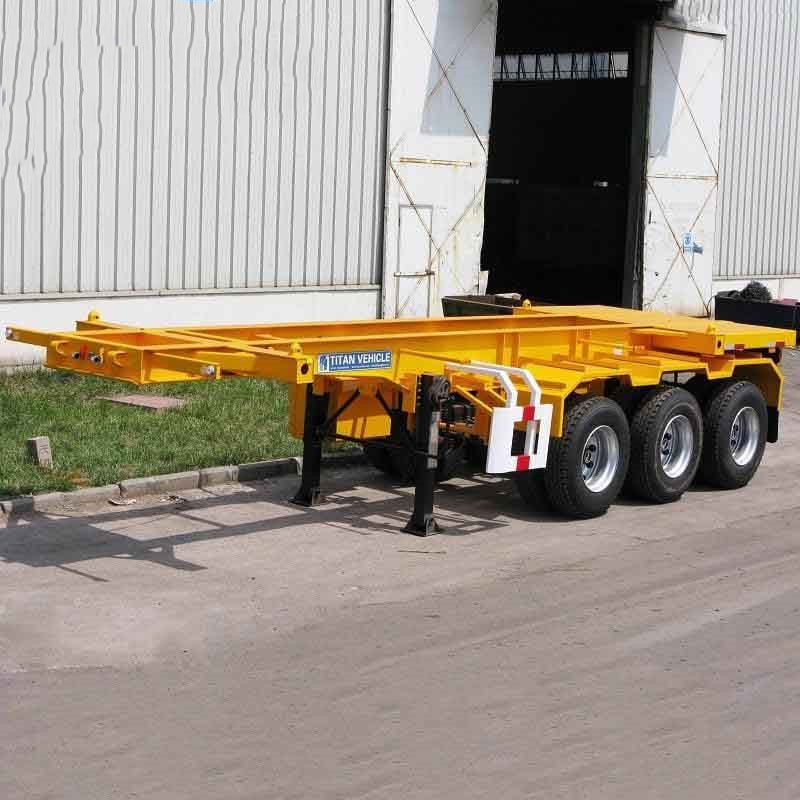

Tri Axle Chassis for Sale
Tri Axle Chassis for Sale

Tri Axle Chassis for Sale

6700 USD

Different Parameters, Different Price. Price Reference Only.



TITAN Tri Axle Chassis for Sale can be customized to 20/40/45/53 feet. Tri Axle Skeletal Trailer is specially designed to carry various cargo containers.

SKU: Tri Axle Chassis for Sale
GTIN: 6975766113926
MPN: TITAN9401016
Brand: TITAN

Tri Axle chassis Product Description:

Tri Axle Chassis for Sale to transfer goods, which can be directly packaged in the consignor’s warehouse, and then transported to the consignee’s warehouse for unloading. There is no need to remove the goods from the packing box and replace them during replacement or midway transportation.

TITAN Tri Axle Chassis for Sale can be customized to 20/40/45/53 feet. We also provide customers with different options: 2 axles, 3 axles, 4 axles, airbag suspension, spring steel suspension.

20ft Tri Axle Chassis for Sale near me in Philippines

20ft Tri Axle Chassis for Sale near me in Philippines

20ft Tri Axle Chassis for Sale near me in Philippines



Tri axle skeletal trailer Specifications:

Dimension(mm): 6200x2500x1500mm

Loading capacity(ton): ≤60T

Axles: 3 axles, 13T/16T ,FUWA/ BPW/ TITAN Brand

Tire: 13 units, 12.00R22.5 or 315/80R22.5

Rim: 9.00-22.5 or 9.75-22.5

Suspension: Mechanical suspension or Air suspension

Spring Leaf: 90(W)mmx13(Thickness)mmx10 layers or 100mmx12mmx12 (specially intended for overseas markets)



King Pin: JOST brand 2.0 or 3.5 inch (bolted or welded)

Landing Gear: JOST brand D200T or Chinese brand 28tons(double-speed)

Main Beam: Height: 500mm, Upper plate:14mm, Middle plate:8mm, Bottom plate:16mm, Material:Q345B steel

Side Beam: 16mm or 18mm steel channel (material: Q235 steel)

Platform: 3mm-thick checkered plate

Brake Chamber: WABCO RE 6 relay valve; T30/30+T30 spring brake chamber(TKL brand), 45L air tank

Twist Locks: 4,8,12 sets (lifting or screw type)



Through these videos, you can learn about different types of container chassis trailers, as well as the process, testing, packaging and customer feedback, etc.





Review

Kellen - 2021-06-21T14:06:11+0800
Amazing tri axle chassis trailer, almost no manual work is required. The material of this skeleton trailer is also very good, a very durable skeleton trailer.
