Tri axle lowboy trailers for sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the lowboy flatbed trailer for you according to your needs.
Tri axle lowboy trailers for sale are used in different industries: heavy vehicles, rail vehicles, mining machinery, forestry machinery, construction, agricultural, etc, We can customize the triple axle lowboy trailer for you according to your needs.
The main beam of TITAN 60 ton lowboy trailer for sale is made of Q460C high strength structural steel. Q460C steel has a yield strength of ≥620Mpa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times that of the lowboy trailer made of Q345 steel.

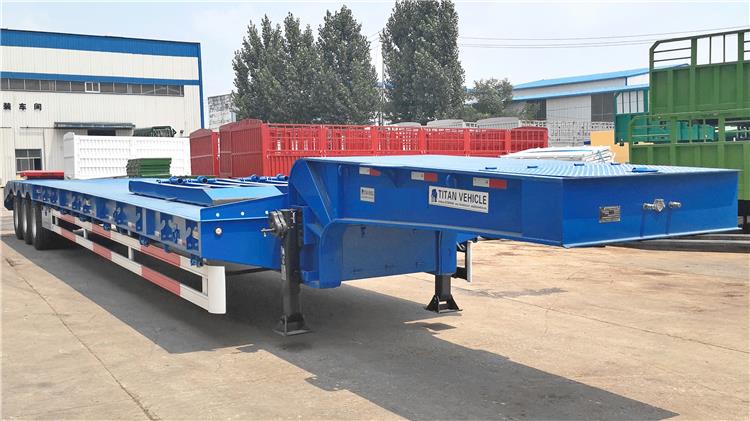

Tri Axle 55/60 Ton Lowboy Trailer for Sale in Nigeria
Tri Axle 55/60 Ton Lowboy Trailer for Sale in Nigeria
Tri Axle 55/60 Ton Lowboy Trailer for Sale in Nigeria
Overall dimension: 13000mm * 3000mm *3400mm
Loading capacity(T): 55/60 Ton Lowboy Trailer for Sale
Axle: tri axle lowboy trailers for sale
Rim: 8.0-20
Tire: 12units, 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers

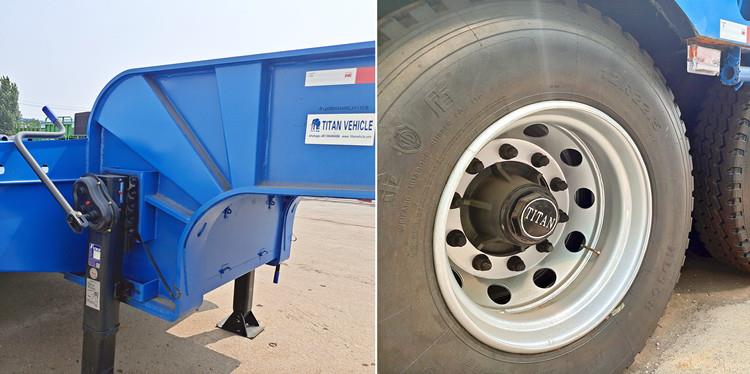

Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)

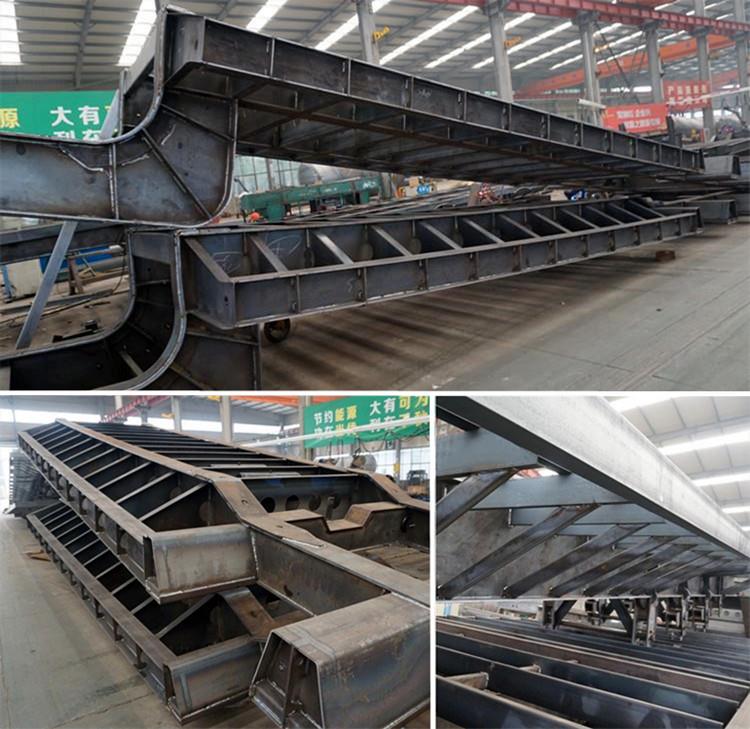

1. Main Beam
TITAN tri axle lowboy trailer for sale main baem adopts a height of 500mm and a thickness of 14mm. The thickness of upper plate is 22mm, the thickness of lower plate is 22mm and the width of upper and lower plate is 220mm.
Other factories use Q345 steel main beam for the 55 ton lowboy for sale. The width of the upper and lower plates is 140mm. The load-bearing capacity of the frame is 27% lower than that of TITAN.
2. Side Beam
The side beam adopts "H" shape design and is welded with T700 high strength steel and it is designed H shape with a height of 300mm, width of 140mm and thickness of 8mm. Its bearing capacity is twice that of other steel, and it will not deform after ten years of use. Anti - turbulence ability increased about 3 times.
3. Side support
The beam design, our side support beam use Q460C high strength structural steel. The thickness is 6mm, and the inclined support is Q460C with a thickness of 6mm. Effectively connect the main beam and side beam together as a whole. Bearing capacity anti - turbulence capacity greatly increased, the service life more than 10 years.
All trapezoidal scales for the whole 60 ton lowboy trailer for sale, G-type scales (higher strength than ordinary C-type scales) are used for the vehicle weighing less than 80 tons.
Through this video below, you can learn about different types of lowbed semi-trailers, as well as the process, testing, packaging and customer feedback, etc.
