Tri Axle 60T Dumper Trailer
Tri Axle 60T Dumper Trailer

Tri Axle 60T Dumper Trailer

17500 USD

Different Parameters, Different Price. Price Reference Only.


60T Dumper Trailer as known as end dump trailer, Tri Axle tipper trailer structure includes chassis, box, and lifting sys. Work by PTO supply oil to the cylinder, lifting box till to design angle, cargo slide out, improve unloading efficiency.

SKU: Tri Axle 60T Dumper Trailer
GTIN: 6975766111250
MPN: TITAN9407001
Brand: TITAN

Product Description:

TITAN dump trailers adopt high strength steel to make it durable when load the sand or small stones or rocks. And the loading capacity are 40t, 60t, 80t.

TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special need, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.

We use well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.

tipper trailer

Tri Axle Dump Semi Tipper Trailer for sale by Professional Supplier TITAN VEHICLE

tipper trailer

Semi Tipper Trailer for Sale with Best Price



1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.

2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.

3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.

4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.

5. The leaf spring is widened and thickened, the shock absorption effect is good.

6. Strengthened Ribs, unique structure design to maximize the payload.



Overall dimension:9000mm * 2500mm *3950mm

Volume :  35CBM

Axles:3 axles

Suspension: Heavy duty mechanical suspension

Tipping system: 196 hydraulic cylinder

Tire:12 units

King pin:90#

Landing gear: JOST

Brake system: WABCO

Electrical system: 24V, LED lights

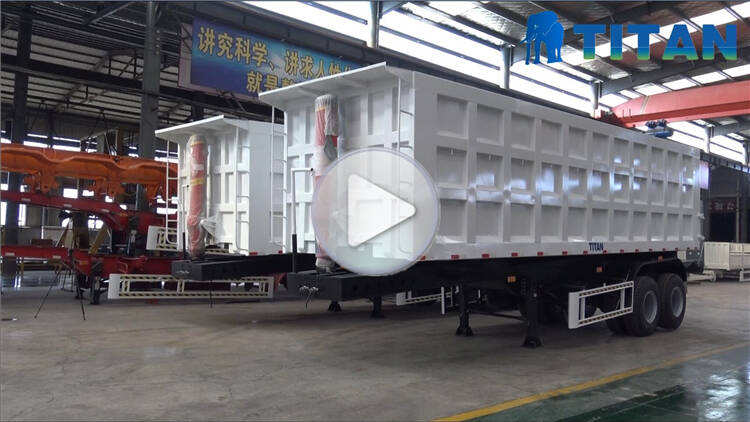

Through these videos, you can learn about different types of tipper semi trailer, as well as the process, testing, packaging and customer feedback, etc.

tipper trailer


Please click " TITAN Tipper Semi Trailer" to get detailed videos!


Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
